VĪTŅGRIEZIS M24X2,0 DIN2181 HSS

Description

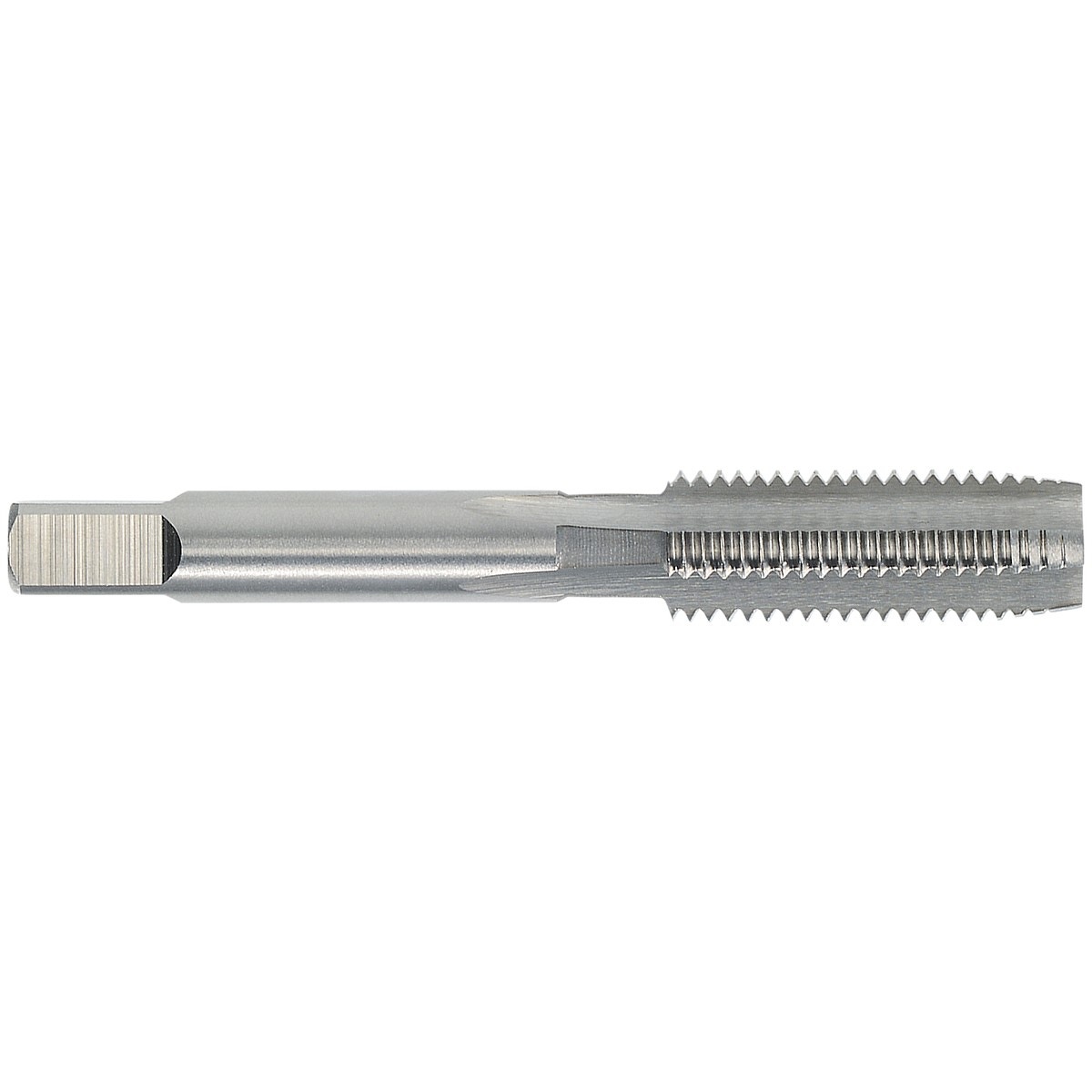

HSS hand tap (DIN 2181 D) for through hole and blind hole threads | suitable for alloyed and unalloyed steels up to appr. 900 N/mm², cast steels, malleable cast iron, brass, aluminium and copper | includes a full threaded finishing tap (Form D) | metric fine ISO-thread DIN 13 | size (d1) MF24 x 2.0 | overall length (l1) 90 mm | thread length (l2) 22 mm | diameter (d2) 18 mm | shank (a) 14.5 mm | recommended drill bit Ø 22.0 mm

Attributes

Thread: M24 x 2,0 (fine thread) | Package length (cm): 16.5 | Package width (cm): 10 | Package height (cm): 3.5 | Gross weight (kg): 0.208000 | EAN: 4022835665069
