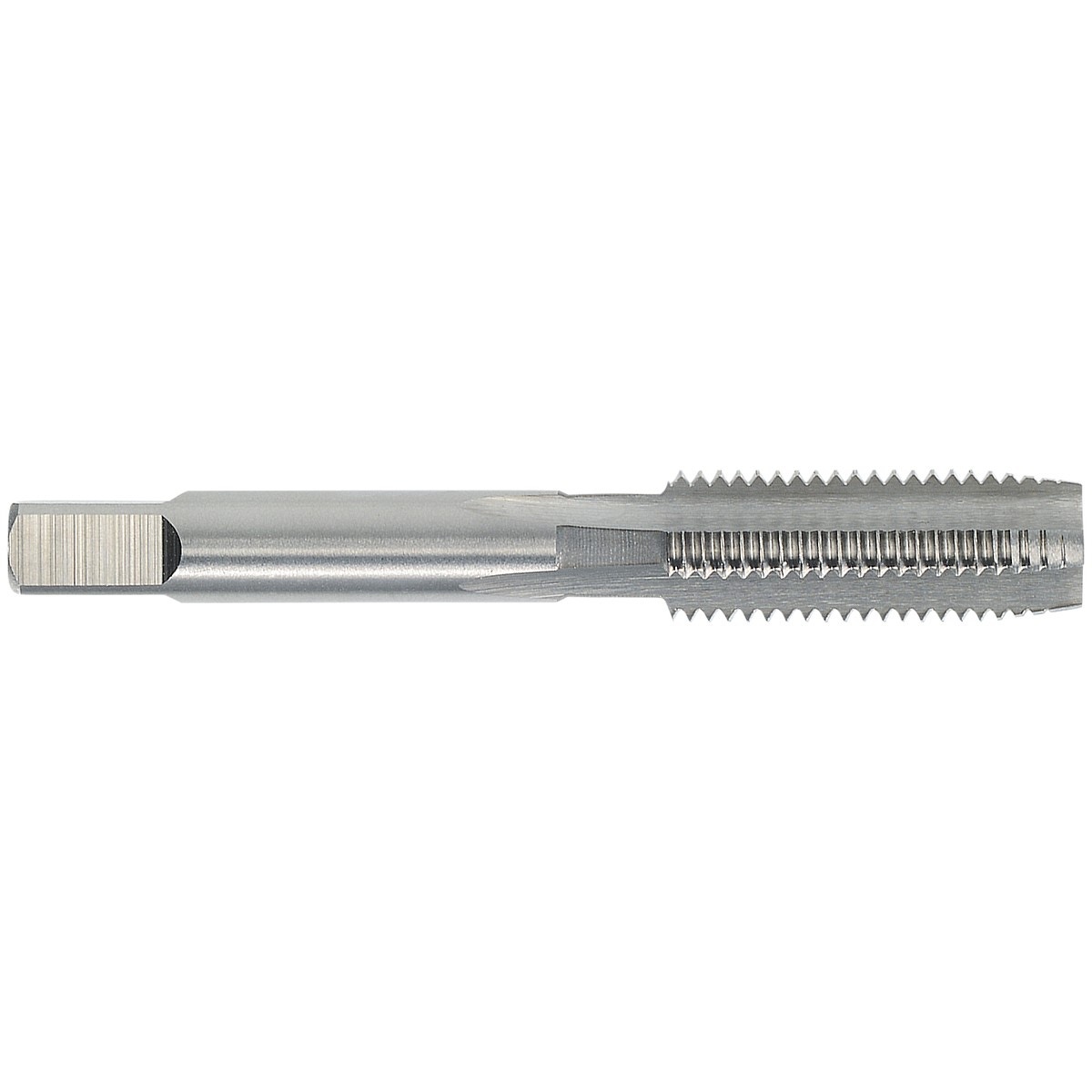

VĪTŅGRIEZIS M20X1,5 DIN2181 HSS

Description

HSS hand tap (DIN 2181 D) for through hole and blind hole threads | suitable for alloyed and unalloyed steels up to appr. 900 N/mm², cast steels, malleable cast iron, brass, aluminium and copper | includes a full threaded finishing tap (Form D) | metric fine ISO-thread DIN 13 | size (d1) MF20 x 1.5 | overall length (l1) 80 mm | thread length (l2) 22 mm | diameter (d2) 16 mm | shank (a) 12 mm | recommended drill bit Ø 18.5 mm

Attributes

Thread: M20 x 1,5 (fine thread) | Package length (cm): 17 | Package width (cm): 8 | Package height (cm): 3 | Gross weight (kg): 0.150000 | EAN: 4022835663843
