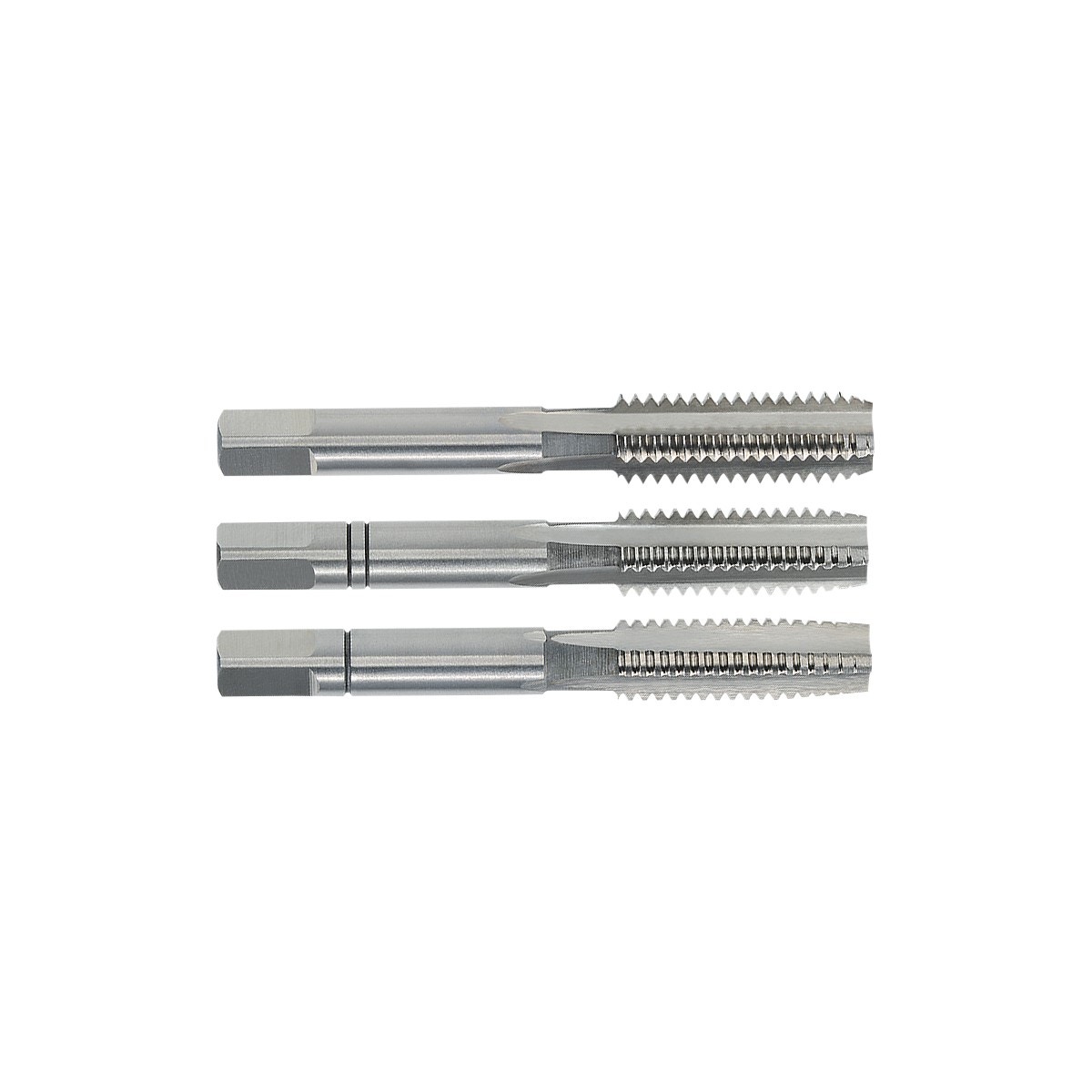

VĪTŅGRIEZIŅU KOMPLEKTS UNC 1/4-20 NR.1-2-3 HSS-G DIN352

Description

HSS hand tap set (DIN 352) for through and blind holes | suitable for unalloyed and low alloyed steel up to 900 N/mm² | set includes pilot, middle and finishing tap | UNC coarse thread (ANSI B 1.1) | size (d1) UNC 1/4" -20 | overall length (l1) 50 mm | thread length (l2) 19 mm | diameter (d2) 6 mm | shank (a) 4.9 mm | recommended drill bit Ø 5.2 mm

Attributes

Thread: UNC 1/4" -20 | Package length (cm): 14.9 | Package width (cm): 8 | Package height (cm): 1.3 | Gross weight (kg): 0.036000 | EAN: 4022835233145
