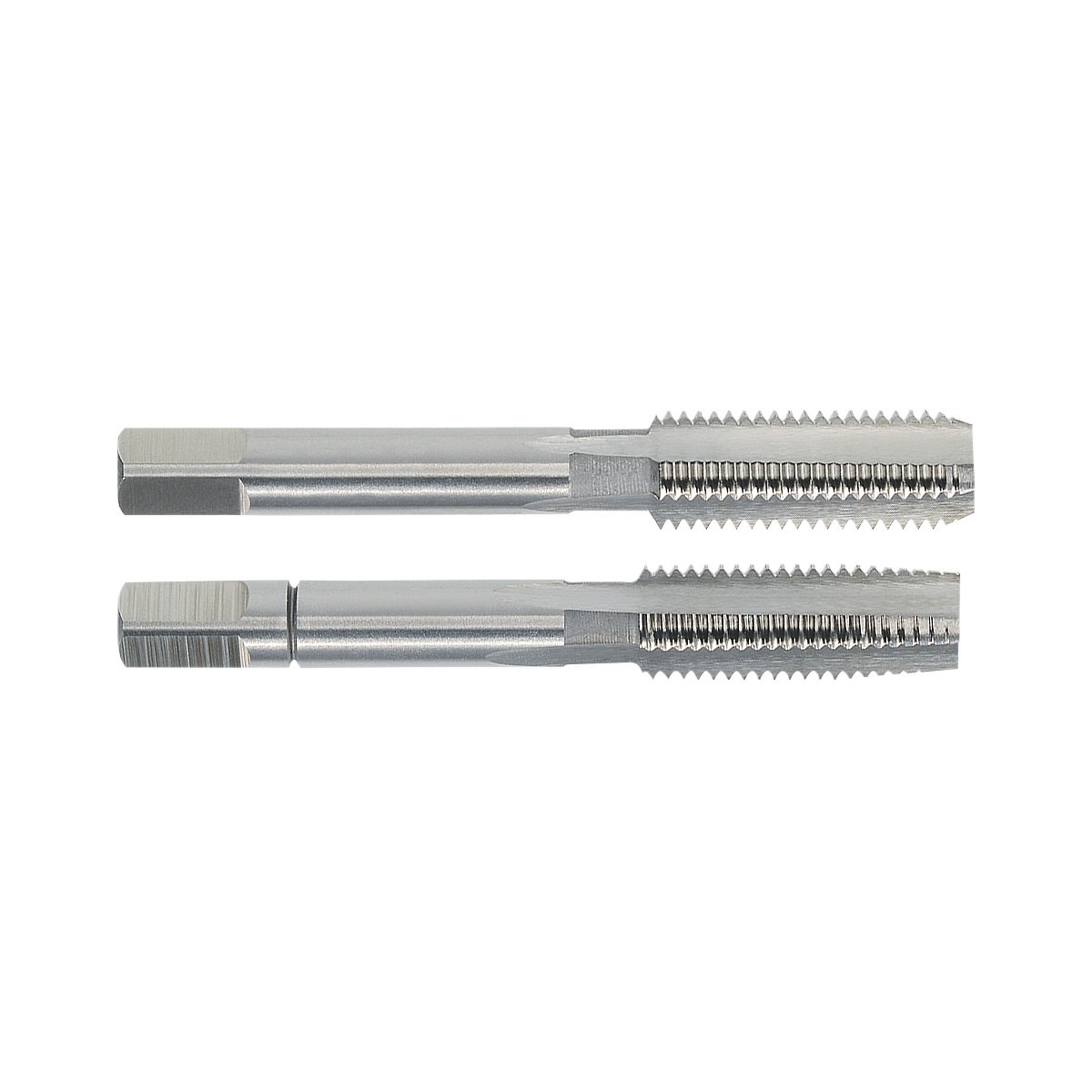

VĪTŅGRIEZIŅU KOMPLEKTS M22X1,5 2GAB DIN2181 HSS

Description

HSS hand taps set (DIN 2181) for through hole and blind hole threads | suitable for alloyed and unalloyed steels up to appr. 900 N/mm², cast steels, malleable cast iron, brass, aluminium and copper | set includes pilot and finishing tap | metric fine ISO-thread DIN 13 | size (d1) MF22 x 1.5 | overall length (l1) 80 mm | thread length (l2) 22 mm | diameter (d2) 18 mm | shank (a) 14.5 mm | recommended drill bit Ø 20.5 mm

Attributes

Thread: M22 x 1,5 (fine thread) | Package length (cm): 16.5 | Package width (cm): 10 | Package height (cm): 2.7 | Gross weight (kg): 0.346000 | EAN: 4022835263944
