VĪTŅGRIEZES VĪTŅU KRĀNU KOMPLEKTS UNF 5/16-24 NR.2-3 HSS-G DIN2181

Description

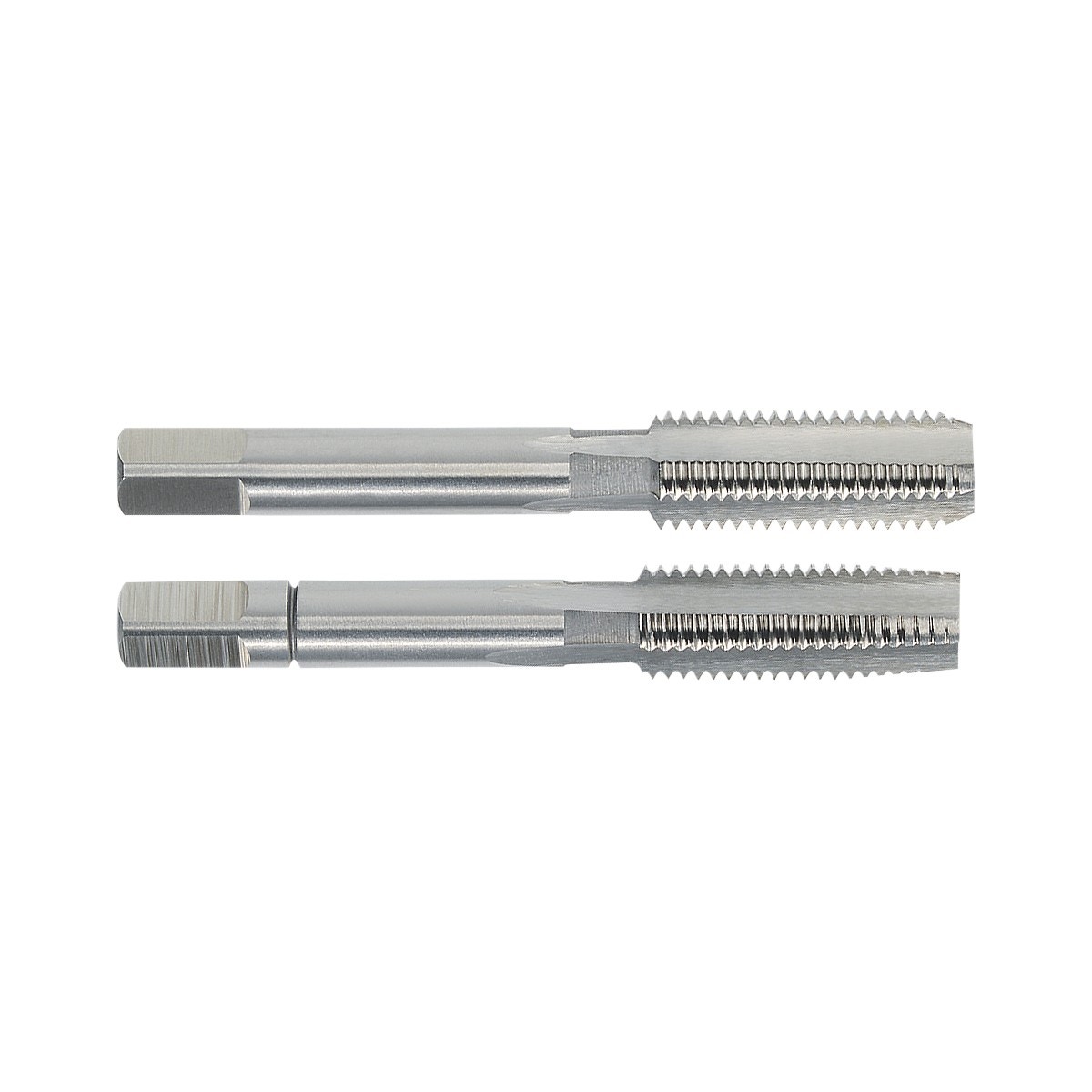

HSS hand tap set (DIN 2181) for through and blind holes | suitable for unalloyed and low alloyed steel up to 900 N/mm² | set includes pilot and finishing tap | UNF fine thread (ANSI B 1.1) | size (d1) UNF 5/16" -24 | overall length (l1) 56 mm | thread length (l2) 22 mm | diameter (d2) 6 mm | shank (a) 4.9 mm | recommended drill bit Ø 6.9 mm

Attributes

Thread: UNF 5/16" -24 | Package length (cm): 6.5 | Package width (cm): 3.5 | Package height (cm): 2 | Gross weight (kg): 0.033000 | EAN: 4022835243168
