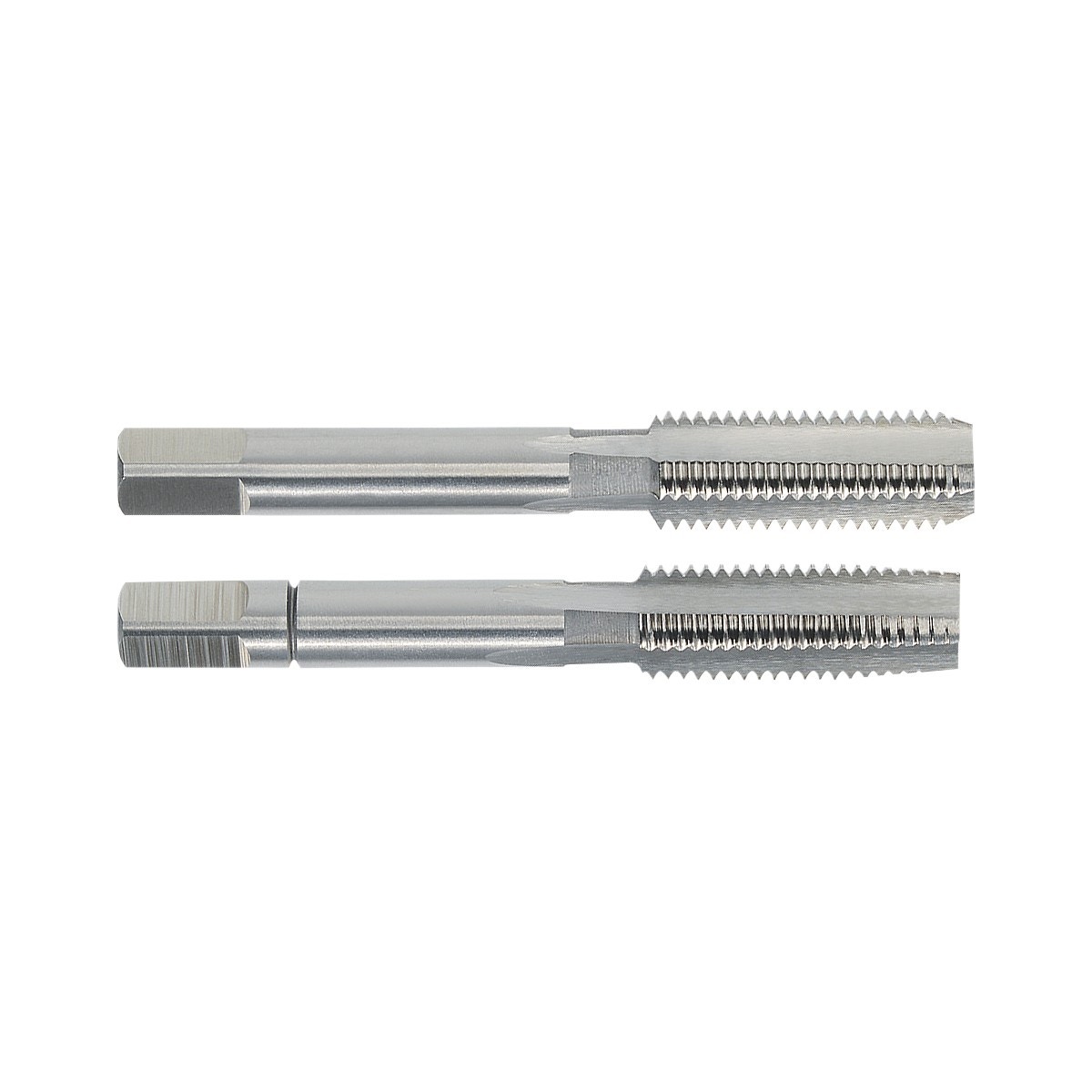

VĪTŅGRIEZES VĪTŅU KOMPLEKTS M20X1,5 2GAB DIN2181 HSS
58 €
Noliktavā 13 prece/-es
✓ Pieejams
Description
HSS hand taps set (DIN 2181) for through hole and blind hole threads | suitable for alloyed and unalloyed steels up to appr. 900 N/mm², cast steels, malleable cast iron, brass, aluminium and copper | set includes pilot and finishing tap | metric fine ISO-thread DIN 13 | size (d1) MF20 x 1.5 | overall length (l1) 80 mm | thread length (l2) 22 mm | diameter (d2) 16 mm | shank (a) 12 mm | recommended drill bit Ø 18.5 mm
Attributes
Thread: M20 x 1,5 (fine thread) | Package length (cm): 17 | Package width (cm): 14 | Package height (cm): 2.6 | Gross weight (kg): 0.283000 | EAN: 4022835263845
