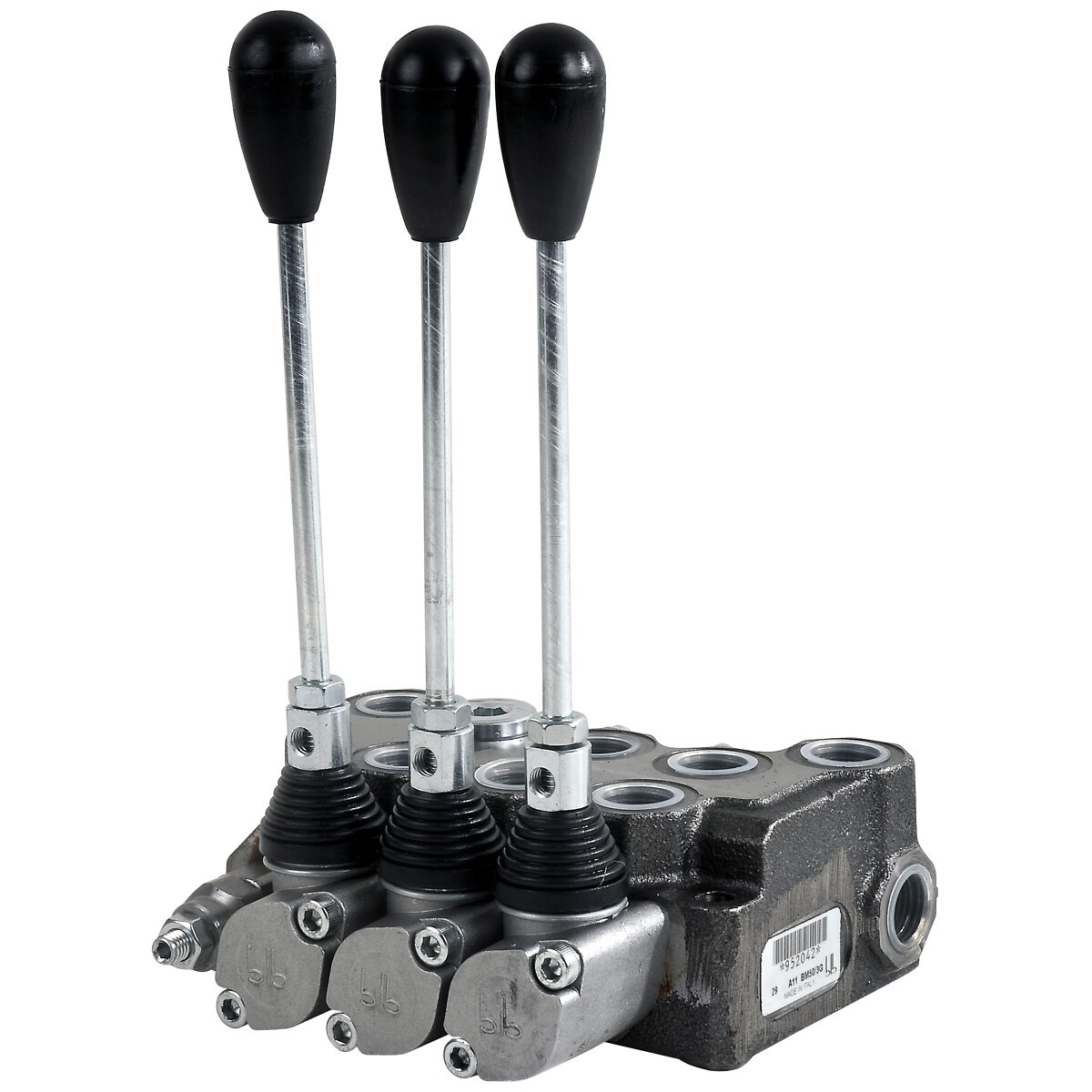

VIRZIENA REGULĒŠANAS VĀRSTS 1/2 3-SPOOL 1X1 2X2-AKT.

Description

type 3-spool | size 1/2" | spool types 1 x single acting, 2 x double acting | adjustable relief valve | operating levers come with hydraulic block, levers have different assembling alternatives | spring-centered spools | normal flow 50 l/min | max. flow 70 l/min | operating pressure 280 bar | max. pressure 300 bar | max. pressure in tank-line 80 bar | relief valve adjusted 140 bar | L 164,0 mm | P 125,0 mm | weight 5,5 kg

Attributes

Thread: G 1/2" -14 | Package length (cm): 18 | Package width (cm): 16.5 | Package height (cm): 8 | Gross weight (kg): 5.980000 | EAN: 6418914438774
