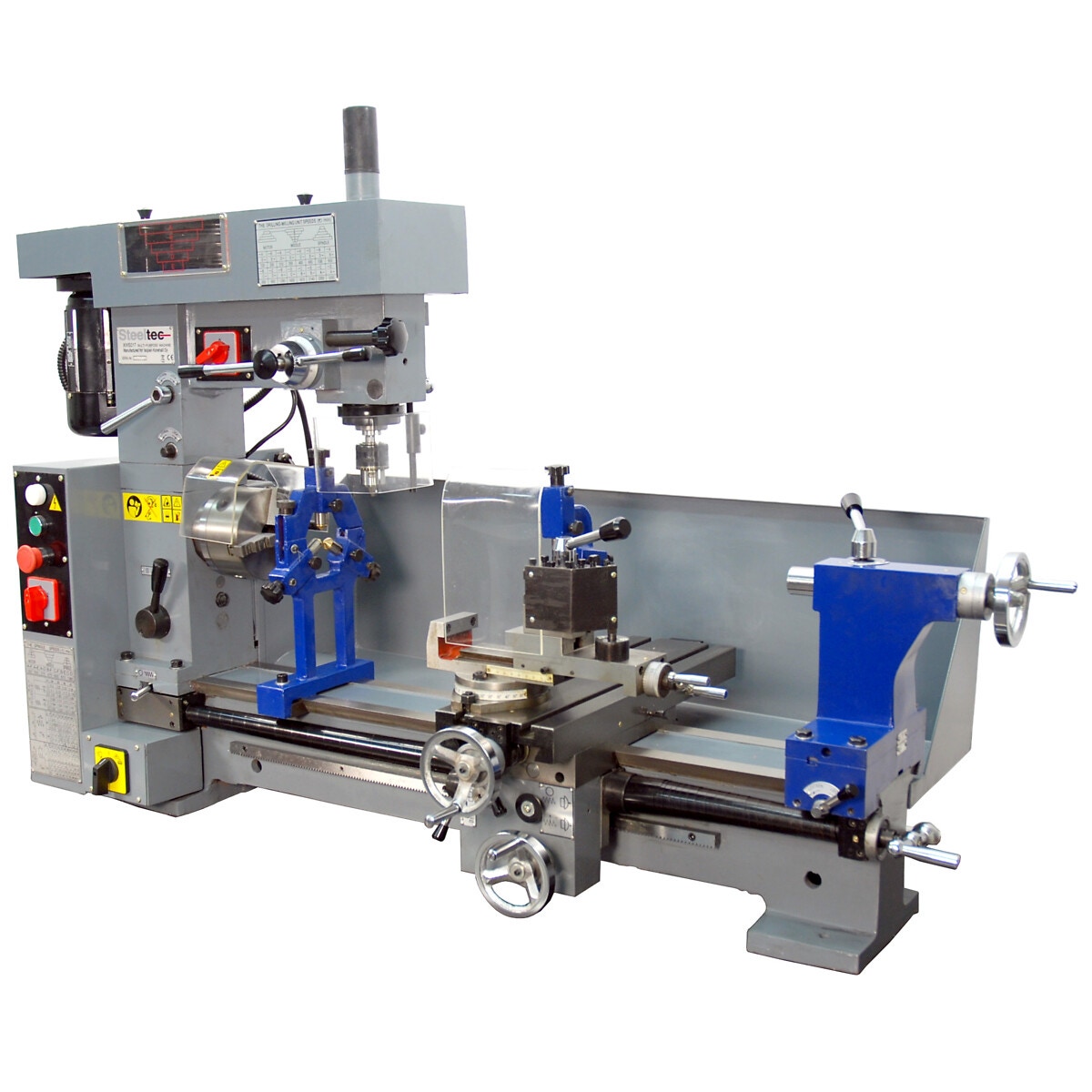

Virpa/frēze/vertikālā kombinētā iekārta steeltec

Description

motor 550 W / 400 V | net weight 280 kg | brutto weight 325 kg | overall dimensions: 1760 x 580 x 965 mm | package dimensions: 1130 x 580 x 1100 mm | distance between centres 800 mm | max. diameter of workpiece 420 mm | max. longitudinal travel 740 mm | max. cross-slide travel 200 mm | spindle taper MT 4 | tailstock travel 70 mm | tailstock taper MT 3 | spindle hole diameter 28 mm | speed ranges: 160, 300, 375, 470, 600, 870 and 1360 rpm | longitudinal lead screw pitch 6 TPI/4 mm | tapping 4-120 TPI / 0,2-6 mm | range of automatic feeding 0,5-0,35 mm / 0,002-0,014" | spindle taper MT 3 | spindle travel 110 mm | max. distance between spindle center and column 285 mm | max. distance between nose and table 306 mm | speed ranges: 125, 200, 310, 350, 400, 450, 530, 600, 660, 900, 1380, 1450, 1670, 2140, 2350 and 3000 rpm | table size 475 x 160 mm | drilling capacity 22 mm | end milling capacity 28 mm | face milling capacity 80 mm

Attributes

Package length (cm): 142 | Package width (cm): 62 | Package height (cm): 115 | Gross weight (kg): 300.000000 | EAN: 6418914546899
