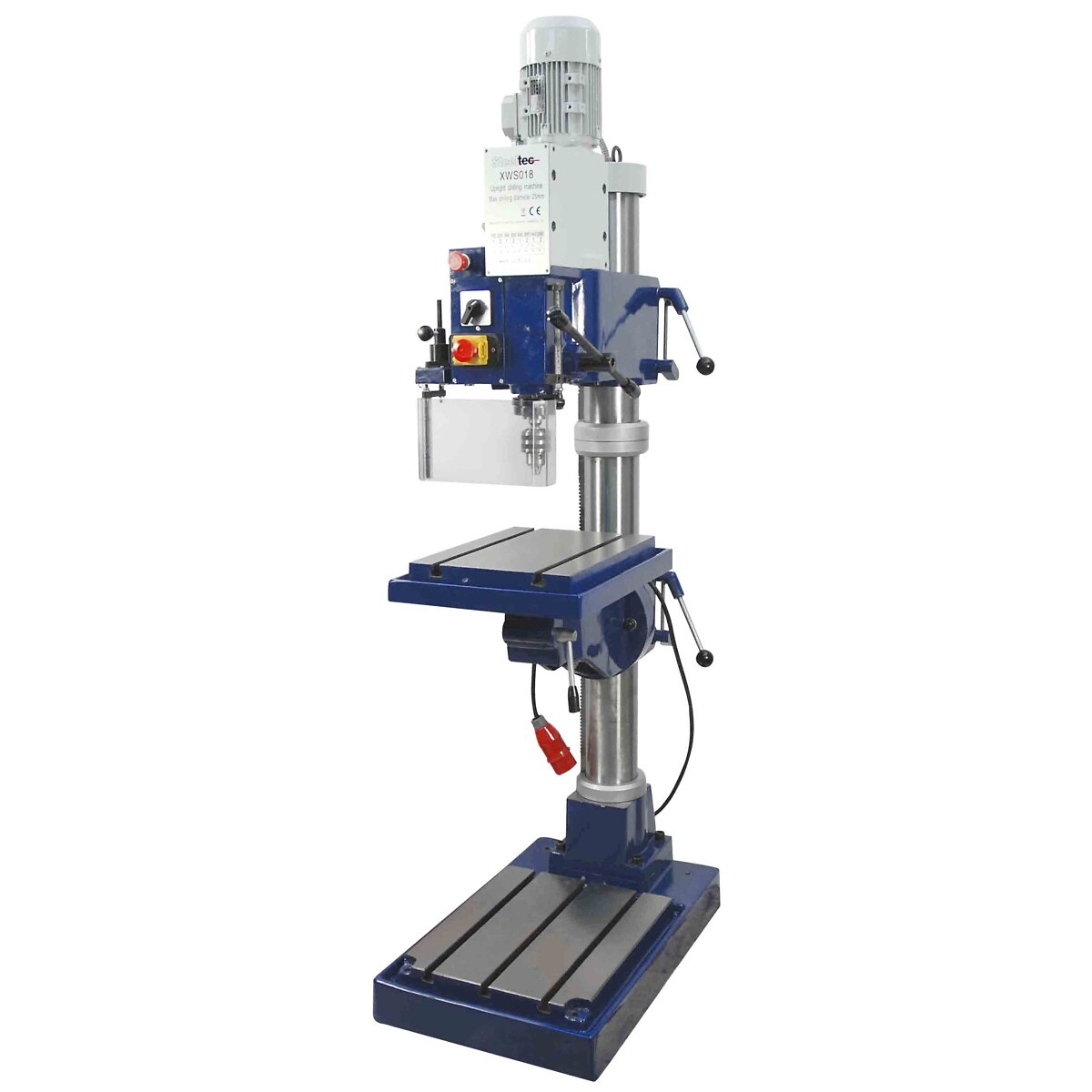

VERT.URBJMAŠĪNA MK3 MECH.GEARING STEELTEC

Description

motor 550/750 W / 400 V | 8 speed ranges, 100 – 2800 rpm | key chuck max. 13 mm | spindle MK 3 | mechanical gearing | max. drilling capacity 25 mm | spindle distance from body 315 mm | max. feeding depth 140 mm | max. working distance 660 mm | spindle distance from base 1200 mm | table 315 x 415 mm | max. table travel 480 mm | max. spindle headstock travel 240 mm | stand 475 x 400 mm | dimensions 788 x 560 x 1820 mm | weight 404 kg | high-quality Steeltec vertical drill for professional use | the machine has a mechanical 8-speed transmission that enables difficult drilling (no slipping belts!) | model XWS018 does not have a cooling system | the machine's upper and lower parts are individually height adjustable | due to the heavy built structure (404 kg) it is robust and vibration-free

Attributes

Package length (cm): 190 | Package width (cm): 58.5 | Package height (cm): 104.5 | Gross weight (kg): 507.000000 | EAN: 6418914546950
