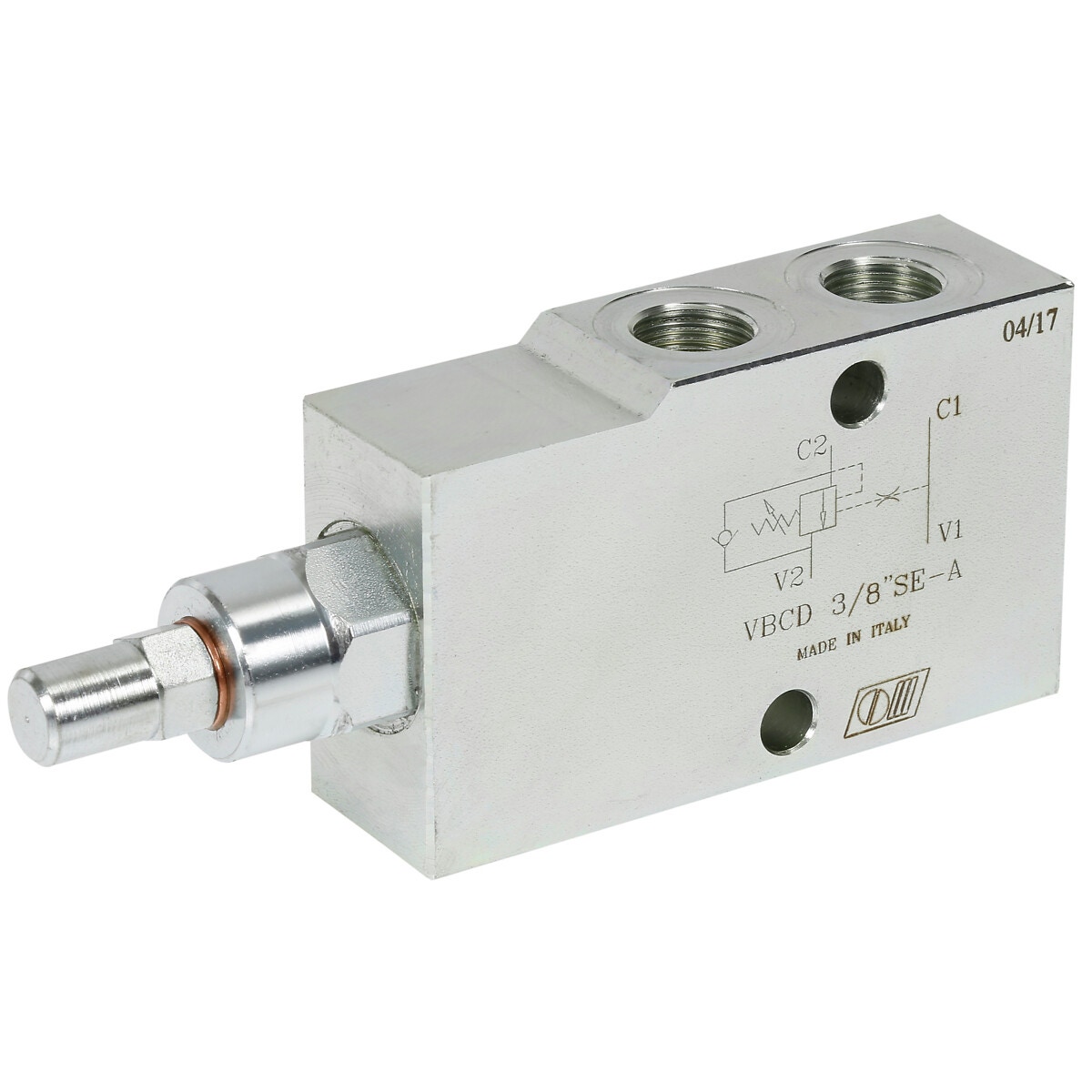

Ventilis ar vienu pārcentrēšanas vārstu 3/8 vbcdse

Description

type VBCD SE A | single overcentre valve is used to control actuator's movements and block in one direction in order to have a under control descent of a load; load's weight doesn't carry it away, as the valve prevents any cavitations of the actuator | the type A is different in the connections in the connections position and the pilot ratio | material zinc plated steel | BunaN sealing | coupling V C: G 3/8" | pilot ratio 1:4,5 | max. flow 40 l/min | max. pressure 350 bar (standard setting 320 bar)

Attributes

Thread: G 3/8" -19 | Package length (cm): 14.8 | Package width (cm): 3 | Package height (cm): 6 | Gross weight (kg): 1.253000 | EAN: 6418914960602
