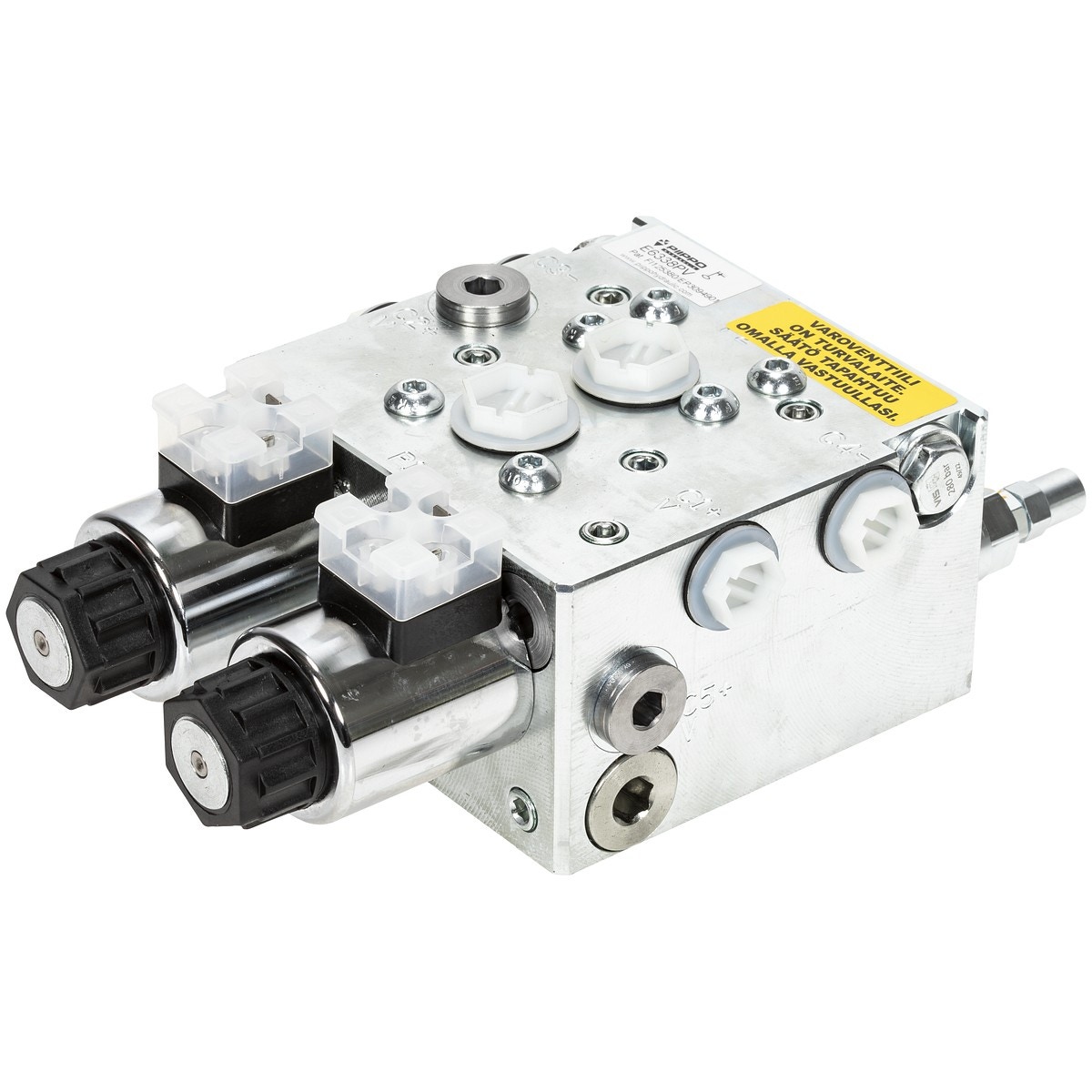

V-PLOW VĀRSTS 3/8 12V

Description

articulated plow valve E6338PV-12V | operation in an articulated plow: coils without power, wings move diagonally, left coil acts as left wing and right coil as right wing | current in both coils, wings contract/expand at the same time (no flow sharing) | voltage 12 V DC (30 / 60 W) | connections G 3/8", G 1/2" (T, P1/P2) | flow 50 l/min | max. pressure 210 bar | adjustable safety valves 80-220 bar for C1 and C2 connections (factory setting 150 bar) | suction valves on C3 and C4 connections | T-connection to accumulator or tank

Attributes

Thread: G 3/8" -19, G 1/2" -14 | Package length (cm): 25.5 | Package width (cm): 14.3 | Package height (cm): 8.5 | Gross weight (kg): 8.867000 | EAN: 6418914213654
