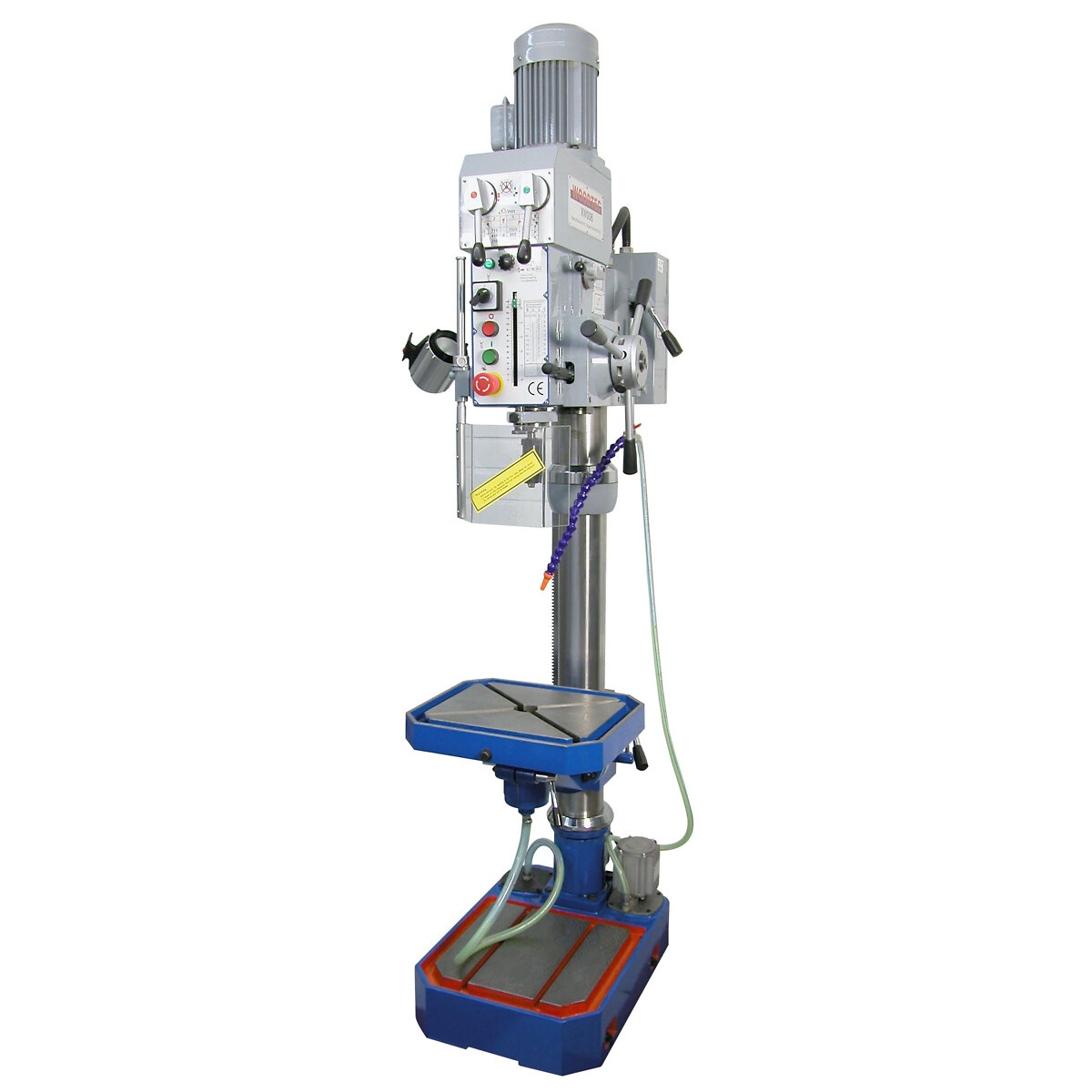

URBJMAŠĪNA AR PĀRNESUMU 400V

Description

motor 1,1 kW/400 V | 1440/2880 rpm | spindle MK3 | max. drilling capacity steel 30 mm | max. tapping steel M20 | mechanical gearing | 12 speed ranges, speeds 125 – 3030 rpm | automatic feed | 3 feed ranges: 0,10/0,20/0,30 | cooling pump: motor 0,085 kW, output 6 l/min | gap length 260 mm | distance between spindle and worktable max. 685 mm | distance between spindle and base 1165 mm | stroke max. 130 mm | alternating motion of upper part max. 180 mm | upper part tiltable 45°horizontally | worktable alternating motion max. 500 mm | worktable tiltable 50° | worktable size 420 x 450 mm | base size 335 x 340 mm | column Ø 110 mm | working light | with quick chuck and shank | protection class IP44 | dimensions: S750, L495, K2080 mm | weight 350 kg | designed for medium- and heavy-duty applications, high-quality WOODTEC vertical drilling machine | equipped with a mechanical transmission, ensuring drill rotation during difficult drilling | can be used for drilling large holes due to its strong and heavy frame structure (350 kg) | drilling machine has a 3-range automatic feeder that is easy to switch on from the levers as well as drilling depth auto-stop (adjustable), this feature will free the operator for other duties during drilling | keyless chuck drill bit to speed different work phases and adjustable cooling pump for drill bit cooling, saving on drill bit costs | the machine's upper and lower parts are individually height adjustable and have double locking using single lever ensuring stationary and unbending structure | LED light attached to the side for easy drilling illumination

Attributes

Package length (cm): 86 | Package width (cm): 222 | Package height (cm): 55 | Gross weight (kg): 405.000000 | EAN: 6418914521636
