Termoplastmasas šļūtene 3/8 r18 cplt3000 -55c

Description

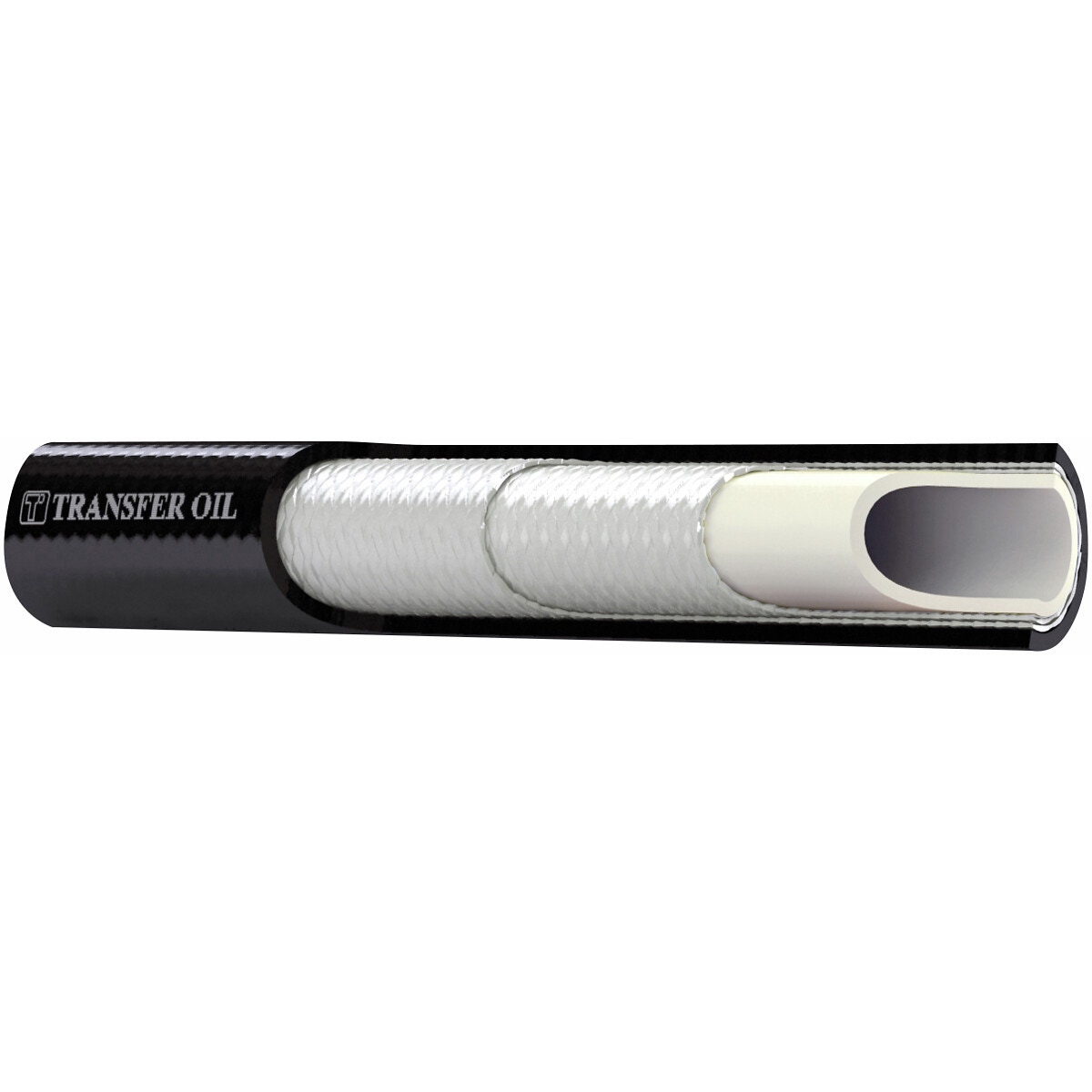

SAE 100R18 (meets or exceeds) / ISO3949-R18 | reinforcement 2 braids of synthetic fiber | inner surface thermoplastic polyester elastomer | outer surface polyester | applications: forklift handling, all industrial and agricultural applications exposed to low temperatures or cyclic and quick temperature changes | operating temperature -55…+100 °C / air and water based fluids max. +70 °C | nominal size -06 | hose DN 10 | inner Ø 3/8" | inner Ø 9,7 mm | outer Ø 16,6 mm | operating pressure 210 bar | explosion pressure 840 bar | bending radius 45 mm | weight 165 g/m

Attributes

Hose inner Ø (mm): 10 | Hose inner Ø (mm): 10.00 | Hose inner Ø (inch): 3/8" | Package length (cm): 100 | Package width (cm): 1.7 | Package height (cm): 1.7 | Gross weight (kg): 0.167000 | EAN: 6418914944046
