Tapskrūvju savienojums 40 mm-1,1/2 bsp sieviešu pps1
23,20 €
✓ Pieejams
Description

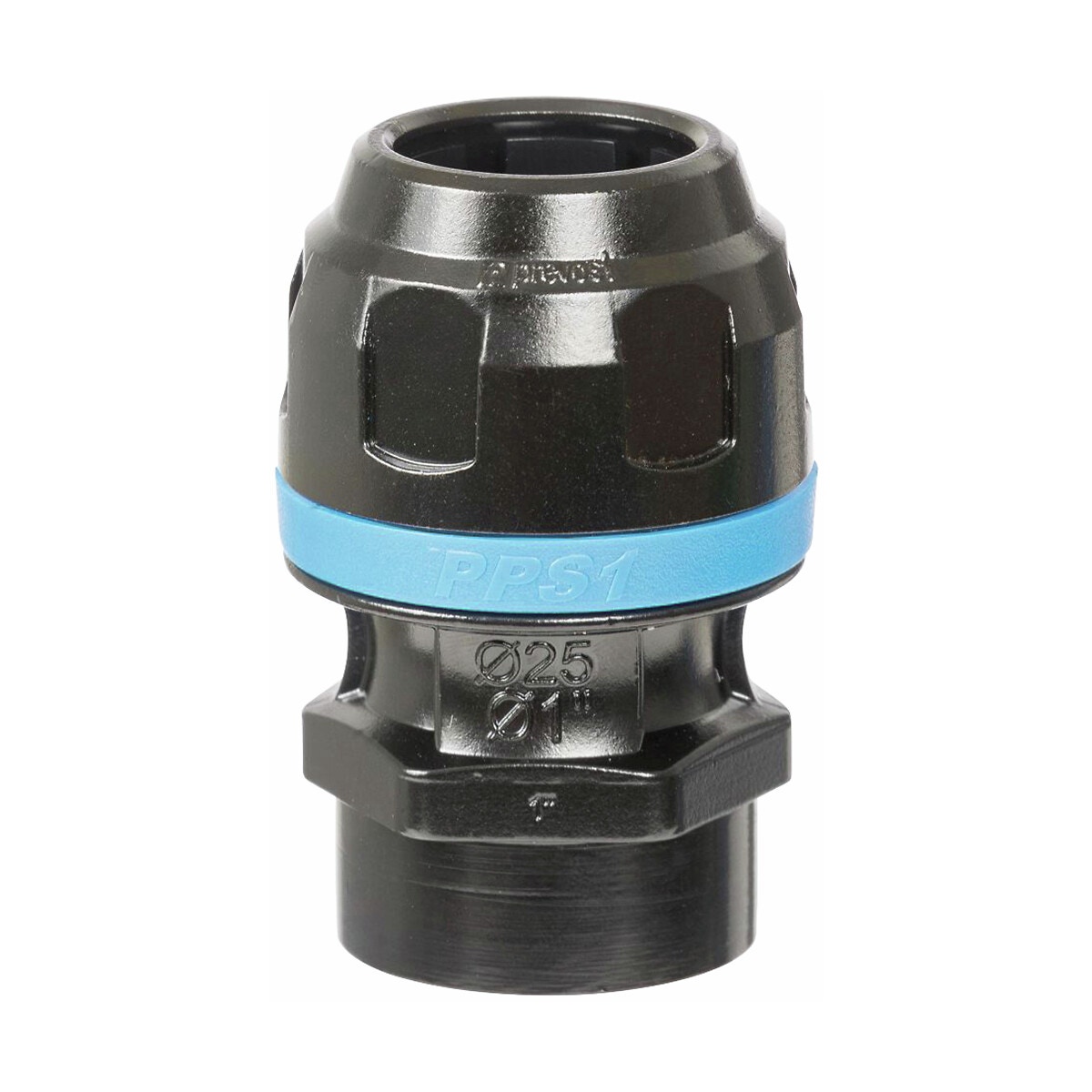

Prevost female parallel threaded straight fitting PPS1 MF | the new PPS Grip Concept is based on a stainless steel ring with teeth that penetrate the aluminium | leaktightness is achieved via a new contoured and lubricated seal, with optimised design and properties (the seal remains perfectly leaktight even under the harshest conditions) | material 100 % aluminium, EN AB 46100 | standard DESP 2014/68/UE REACH | operating temperature -20…+80 °C | fluid compressed air | operating pressure 0 – 16 bar | vacuum -0,98 bar | thread G 1 1/2" | pipe outer diameter Ø 40 mm | A 68 mm | B 103 mm | C 57 mm
Attributes
Thread: G 1 1/2" -11 | Package length (cm): 9 | Package width (cm): 9 | Package height (cm): 16 | Gross weight (kg): 0.332000 | EAN: 3660058316385
