Tapskrūvju savienojums 16 mm-1/2 bsp ārējais pps1

Description

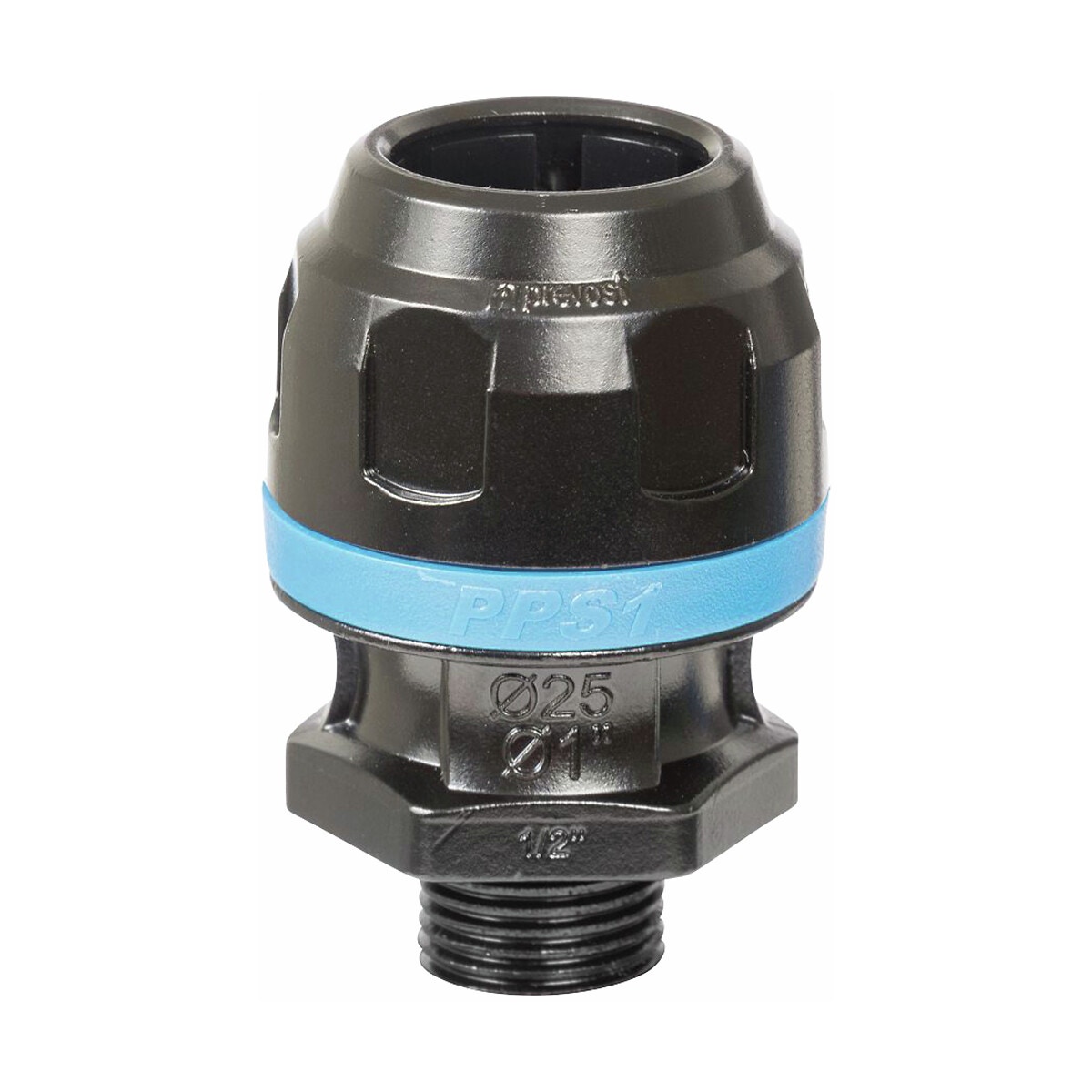

Prevost tapered male threaded straight fitting PPS1 MM | the new PPS Grip Concept is based on a stainless steel ring with teeth that penetrate the aluminium | leaktightness is achieved via a new contoured and lubricated seal, with optimised design and properties (the seal remains perfectly leaktight even under the harshest conditions) | material 100 % aluminium, EN AB 46100 | standard DESP 2014/68/UE REACH | operating temperature -20…+80 °C | fluid compressed air | operating pressure 0 – 16 bar | vacuum -0,98 bar | thread BSPT 1/2" | pipe outer diameter Ø 16 mm | A 32 mm | B 58 mm | C 26 mm

Attributes

Thread: G 1/2" -14 | Package length (cm): 8.2 | Package width (cm): 4.1 | Package height (cm): 4.1 | Gross weight (kg): 0.051000 | EAN: 3660058303200
