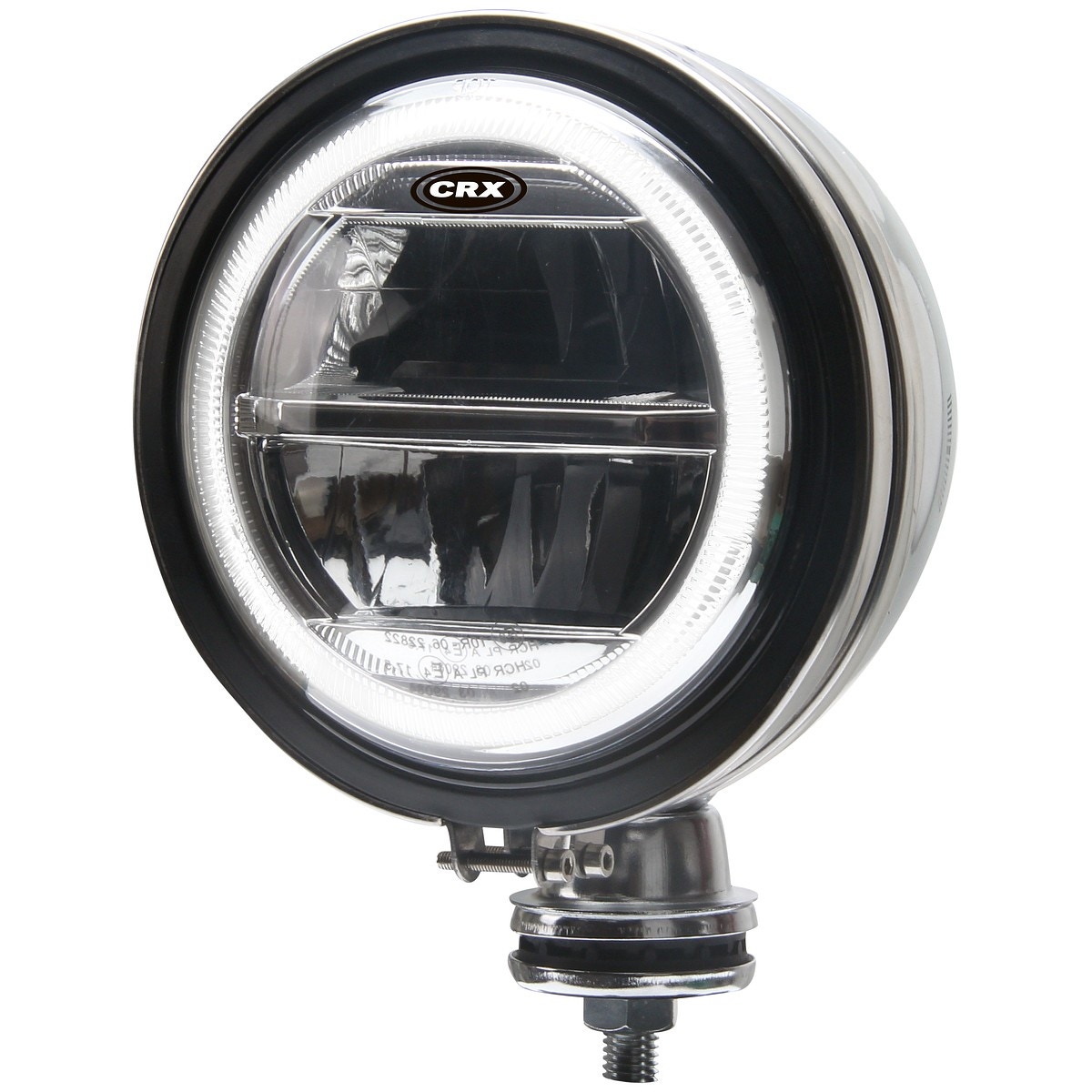

TĀLVADĪBAS GAISMA LED APAĻA 165 MM HROMĒTA

Description

E-approved LED headlight with chromed background | voltage 10 – 30 V DC | driving beam luminous flux theoretical 1100 lm / operational 492 lm | driving beam nominal power 16 W LED | driving beam amperage usage 12 V 1.33 A / 24 V 0.66 A | high beam luminous flux theoretical 2300 lm / operational 1460 lm | high beam nominal power 21 W LED | high beam amperage usage 12 V 1.75 A / 24 V 0.88 A | parking light nominal power 1.0 W LED | colour temperature 5700 k | reference number 17.5 | protection class IP66/IP69K | EMC CISPR 25 class 3 (excellent electromagnetic compatibility) | chrome-plated metal housing | polycarbonate lens | 100 cm cable | M12 fixing bolt, electric cable goes through the bolt | the free-rotating housing allows the light to be installed side-mounted | operating temperature -40…+50 °C | temperature control | low voltage protection | reverse polarity protection | side, top or bottom mounting | dimensions 165 x 236 x 148 mm | weight 1.24 kg | black: ground | red: high beam | yellow: park light | blue: low beam

Attributes

Spare part type: Electrical system | Package length (cm): 25.5 | Package width (cm): 21 | Package height (cm): 16 | Gross weight (kg): 1.600000 | EAN: 6418914219748
