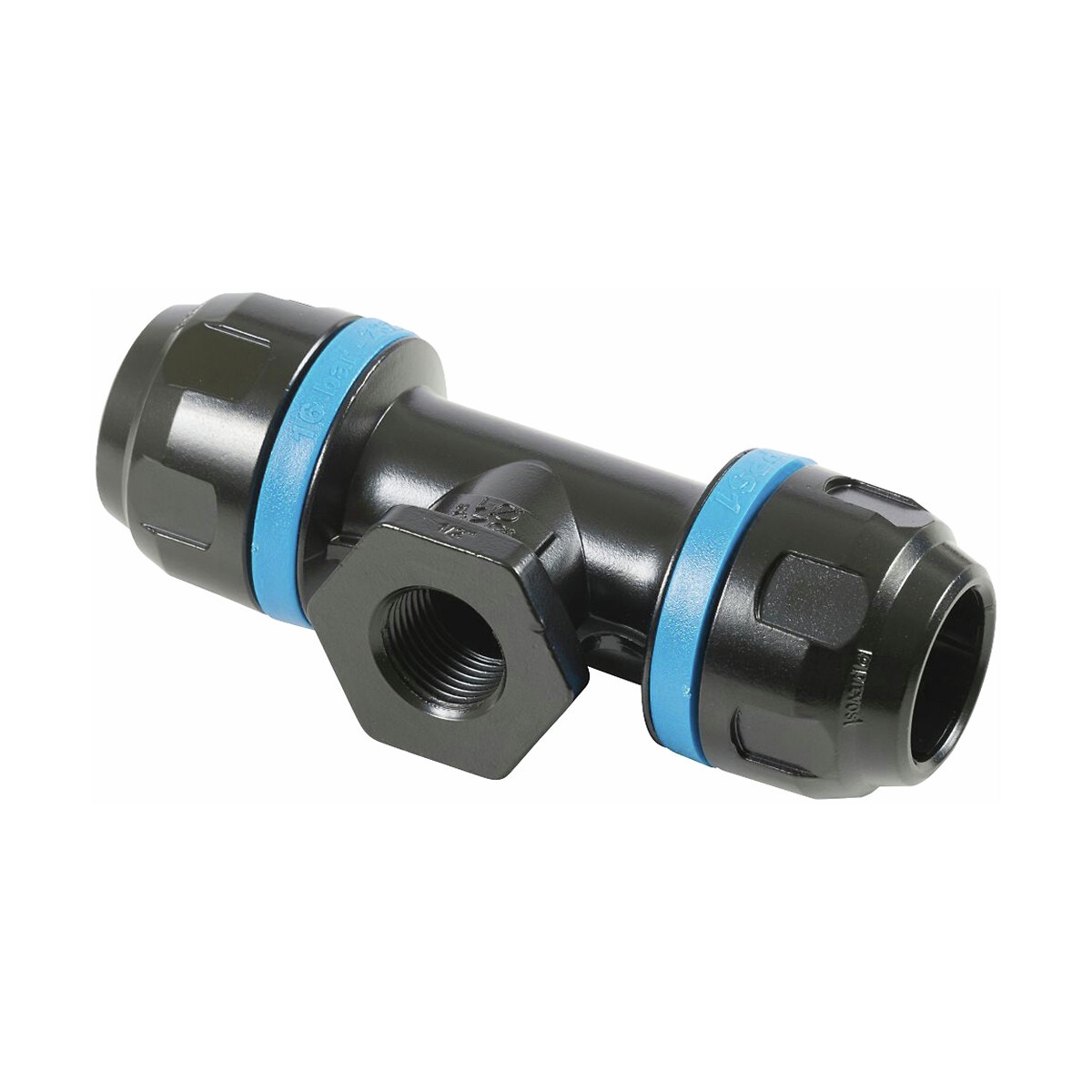

T-veida savienojums 40 mm-g3/4 iekšējā vītne pps1

Description

Prevost female threaded T-fitting PPS1 TT | the new PPS Grip Concept is based on a stainless steel ring with teeth that penetrate the aluminium | leaktightness is achieved via a new contoured and lubricated seal, with optimised design and properties (the seal remains perfectly leaktight even under the harshest conditions) | material 100 % aluminium, EN AB 46100 | standard DESP 2014/68/UE REACH | operating temperature -20…+80 °C | fluid compressed air | operating pressure 0 – 16 bar | vacuum -0,98 bar | thread G 3/4" | pipe outer diameter Ø 40 mm | A 68 mm | B 183 mm | C 85 mm | D 57 mm

Attributes

Thread: G 3/4" -14 | Package length (cm): 9 | Package width (cm): 16 | Package height (cm): 23 | Gross weight (kg): 0.720000 | EAN: 3660058315005
