SŪKNĒŠANAS ŠĻŪTENE SAUGFLEX 3/4 SAE100R4 19MM

Description

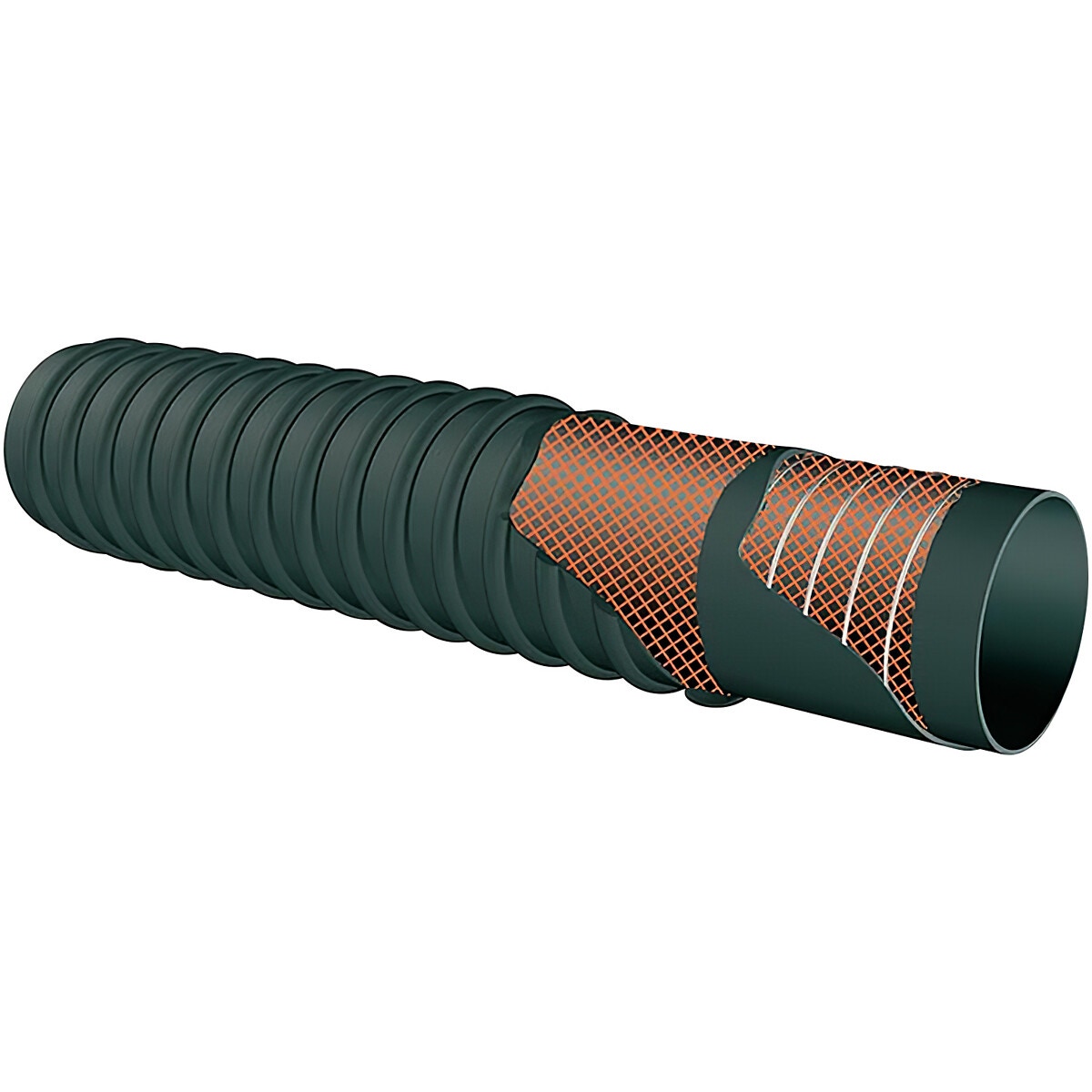

the hose is mainly used on the suction side of oil, but is also suitable for any other type of oil transfer | SAE 100R4 SAUGFLEX | SAE J517 | reinforcement strong 2 x textile fabric, embedded steel spiral | tube oil resistant synthetic rubber | cover corrugated, oil and weather resistant synthetic rubber | colour black | operating temperature -40…+100 °C | nominal size -12 | hose DN 19 | inner Ø 3/4" | inner Ø 19 mm | outer Ø 28 mm | operating pressure 10 bar | explosion pressure 30 bar | bending radius 70 mm | weight 0.56 kg/m | P360012, swaging diameter 30.8 mm

Attributes

Hose inner Ø (mm): 19 | Hose inner Ø (mm): 19.00 | Hose inner Ø (inch): 3/4" | Package length (cm): 100 | Package width (cm): 3 | Package height (cm): 3 | Gross weight (kg): 0.560000 | EAN: 6418914129108
