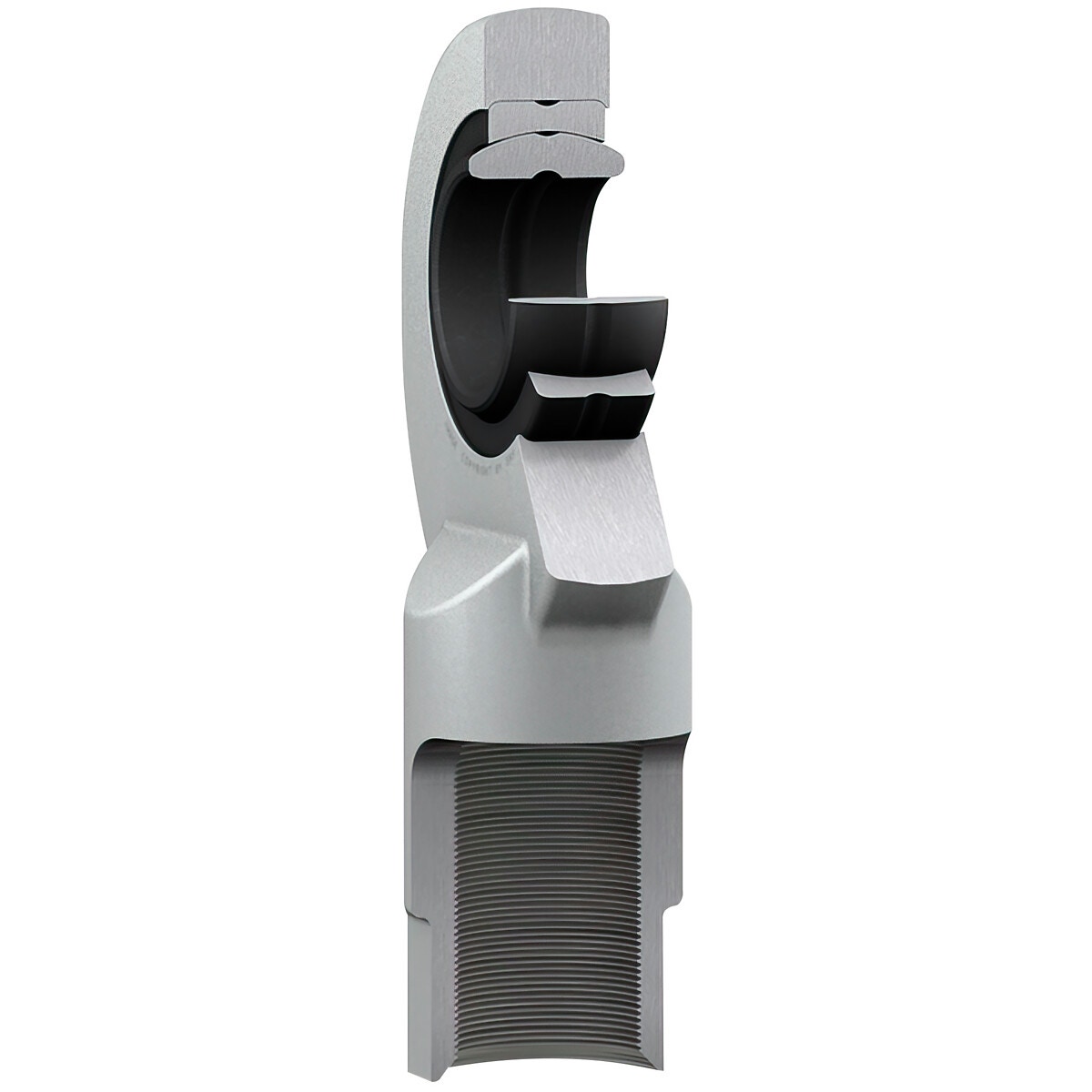

Stieņa gals m8x1,25 ar iekšējo labo vītni skf
65 €
✓ Pieejams
Description
bore diameter (d) 8 mm | diameter head (d2) max. 25 mm | inner ring width (B) 8 mm | thread (G) M8 | width head (C1) max. 6.5 mm | height shank end face – centre rod end eye (h1) 36 mm | angle of tilt (α) 15 ° | raceway diameter inner ring (dk) 13 mm | diameter, shank (d4) 13 mm | length, thread (l3) min. 15 mm | length (height), housing (l4) max. 50 mm | length, wrench flat (l5) 9 mm | distance, shank chamfer – centre rod end eye (l7) min. 11 mm | size, wrench (w) 11 mm | chamfer dimension, bore (r1) min. 0.3 mm | basic dynamic load rating (C) 5.5 kN | basic static load rating (C0) 12.9 kN | specific dynamic load factor (K) 100 N/mm² | material constant (KM) 330
Attributes
Thread: M8 x 1,25 | Inner diameter Ø (mm): 8 | Inner diameter Ø (mm): 8.00 | Package length (cm): 5.5 | Package width (cm): 5.7 | Package height (cm): 2.5 | Gross weight (kg): 0.043000 | EAN: 7316577002839
