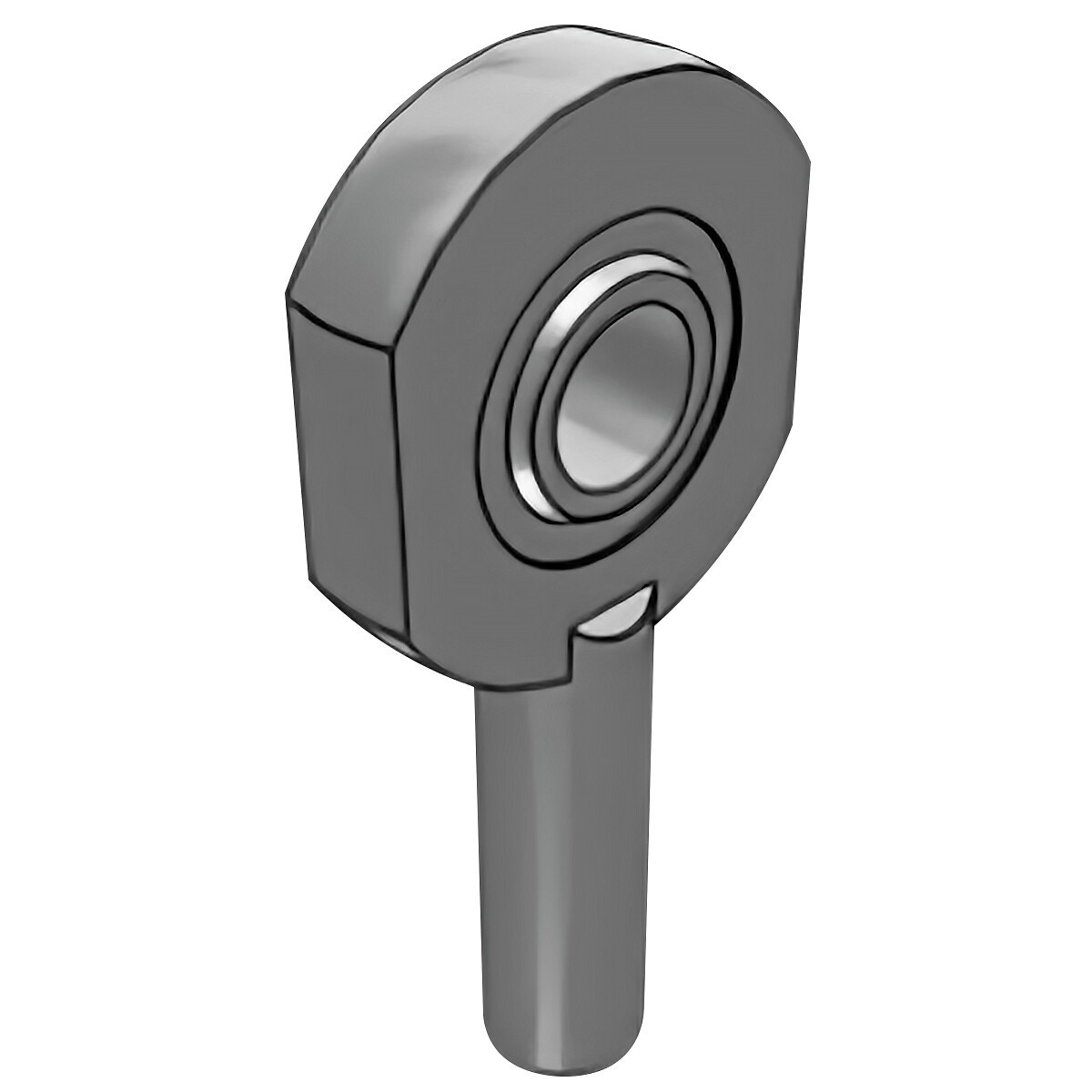

Stieņa gals m8x1,25 ar ārējo kreiso vītni skf
61 €
✓ Pieejams
Description
bore diameter (d) 8 mm | diameter head (d2) max. 25 mm | inner ring width (B) 8 mm | thread (G) M8 | width head (C1) max. 6.5 mm | height shank end face – centre rod end eye (h) 42 mm | angle of tilt (α) 15 ° | raceway diameter inner ring (dk) 13 mm | length, thread (l1) min. 21 mm | length (height), housing (l2) max. 56 mm | distance, shank chamfer – centre rod end eye (l7) min. 11 mm | chamfer dimension, bore (r1) min. 0.3 mm | basic dynamic load rating (C) 5.5 kN | basic static load rating (C0) 12.9 kN | specific dynamic load factor (K) 100 N/mm² | material constant (KM) 330
Attributes
Thread: M8 x 1,25 | Inner diameter Ø (mm): 8 | Inner diameter Ø (mm): 8.00 | Package length (cm): 5.4 | Package width (cm): 5.6 | Package height (cm): 2.5 | Gross weight (kg): 0.038000 | EAN: 7316577003393
