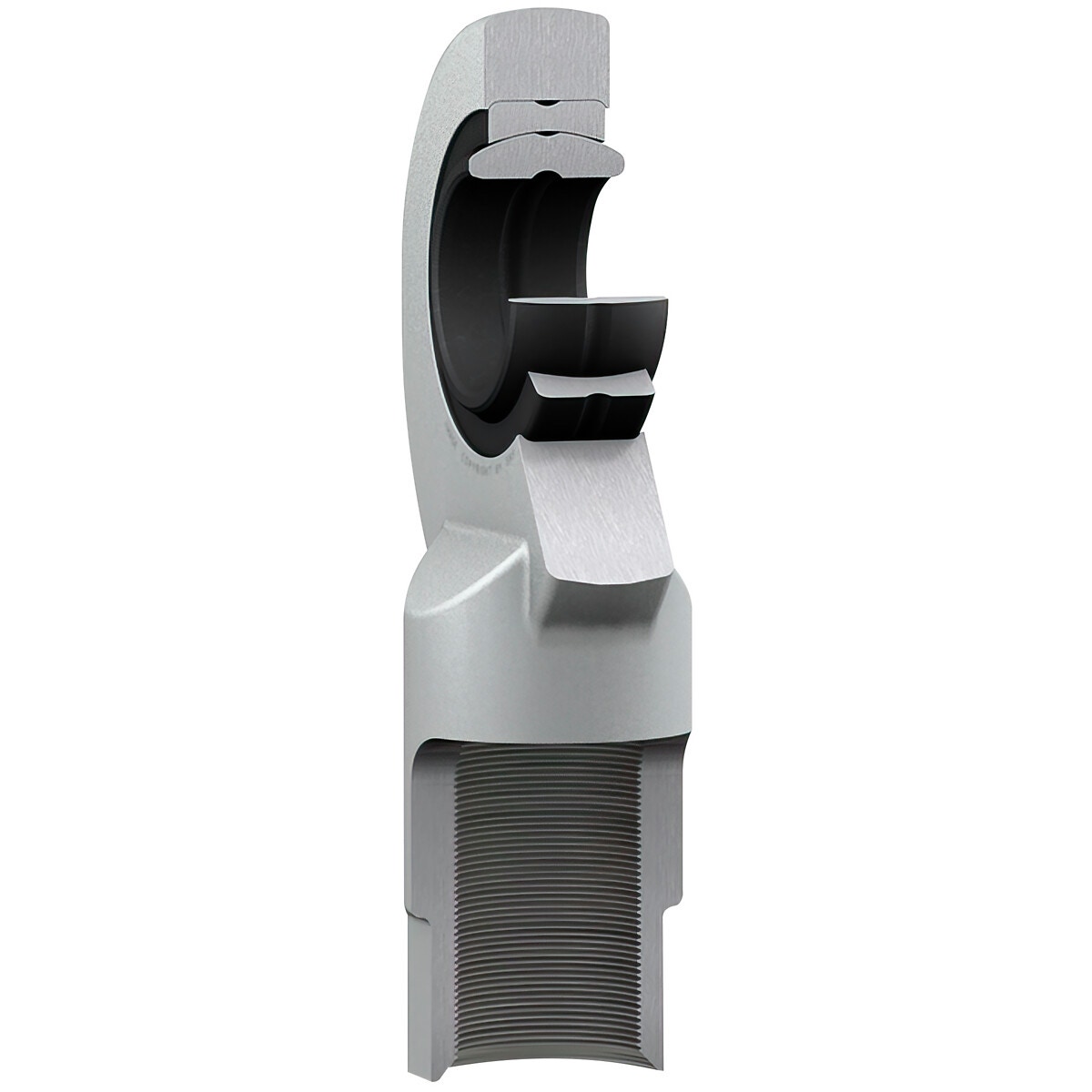

Stieņa gals m6x1 ar iekšējo labo vītni skf
56 €
✓ Pieejams
Description
bore diameter (d) 6 mm | diameter head (d2) max. 22 mm | inner ring width (B) 6 mm | thread (G) M6 | width head (C1) max. 4.5 mm | height shank end face – centre rod end eye (h1) 30 mm | angle of tilt (α) 13 ° | raceway diameter inner ring (dk) 10 mm | diameter, shank (d4) 11 mm | length, thread (l3) min. 11 mm | length (height), housing (l4) max. 43 mm | length, wrench flat (l5) 8 mm | distance, shank chamfer – centre rod end eye (l7) min. 9 mm | size, wrench (w) 9 mm | chamfer dimension, bore (r1) min. 0.3 mm | basic dynamic load rating (C) 3.4 kN | basic static load rating (C0) 8.15 kN | specific dynamic load factor (K) 100 N/mm² | material constant (KM) 330
Attributes
Thread: M6 x 1,0 | Inner diameter Ø (mm): 6 | Inner diameter Ø (mm): 6.00 | Package length (cm): 4.5 | Package width (cm): 4.5 | Package height (cm): 2.2 | Gross weight (kg): 0.027000 | EAN: 7316577002815
