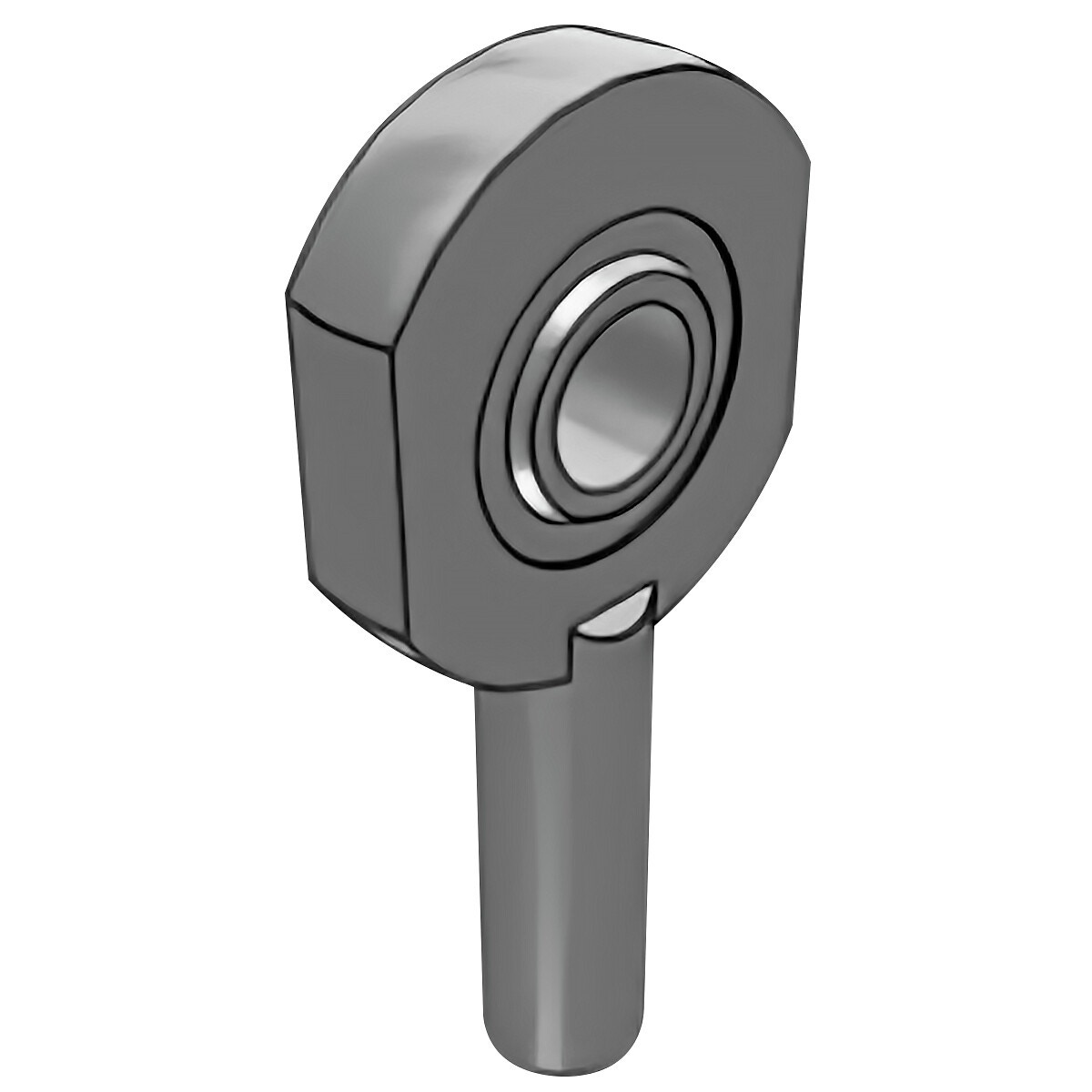

Stieņa gals m24x2 ārējā kreisā vītne skf
146 €
✓ Pieejams
Description
bore diameter (d) 25 mm | diameter head (d2) max. 65 mm | inner ring width (B) 20 mm | thread (G) M24x2 | width head (C1) max. 18 mm | height shank end face – centre rod end eye (h) 94 mm | angle of tilt (α) 7 ° | raceway diameter inner ring (dk) 35.5 mm | length, thread (l1) min. 53 mm | length (height), housing (l2) max. 128 mm | distance, shank chamfer – centre rod end eye (l7) min. 30 mm | chamfer dimension, bore (r1) min. 0.6 mm | basic dynamic load rating (C) 48 kN | basic static load rating (C0) 78 kN | specific dynamic load factor (K) 100 N/mm² | material constant (KM) 330
Attributes
Thread: M24 x 2,0 (fine thread) | Inner diameter Ø (mm): 25 | Inner diameter Ø (mm): 25.00 | Package length (cm): 11.3 | Package width (cm): 11.5 | Package height (cm): 3.3 | Gross weight (kg): 0.612000 | EAN: 7316577049292
