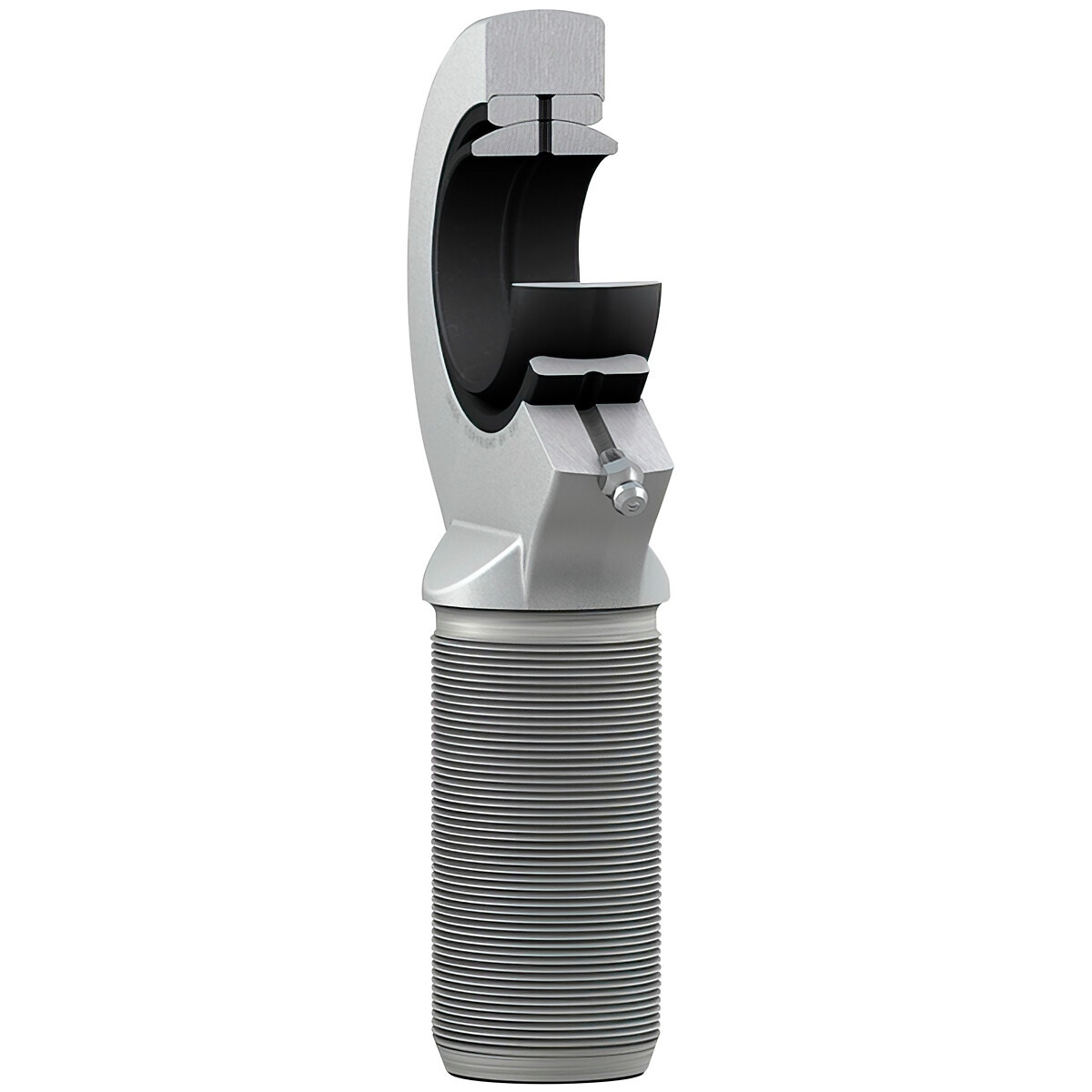

Stieņa gals m20x1,5 ar ārējo labo vītni skf
95 €
✓ Pieejams
Description
bore diameter (d) 20 mm | diameter head (d2) max. 54 mm | inner ring width (B) 16 mm | thread (G) M20x1.5 | width head (C1) max. 13.5 mm | height shank end face – centre rod end eye (h) 78 mm | angle of tilt (α) 9 ° | raceway diameter inner ring (dk) 29 mm | length, thread (l1) min. 43 mm | length (height), housing (l2) max. 107 mm | distance, shank chamfer – centre rod end eye (l7) min. 24 mm | chamfer dimension, bore (r1) min. 0.3 mm | basic dynamic load rating (C) 30 kN | basic static load rating (C0) 42.5 kN | specific dynamic load factor (K) 100 N/mm² | material constant (KM) 330
Attributes
Thread: M20 x 1,5 (fine thread) | Inner diameter Ø (mm): 20 | Inner diameter Ø (mm): 20.00 | Package length (cm): 9.3 | Package width (cm): 9.4 | Package height (cm): 3 | Gross weight (kg): 0.337000 | EAN: 7316577002594
