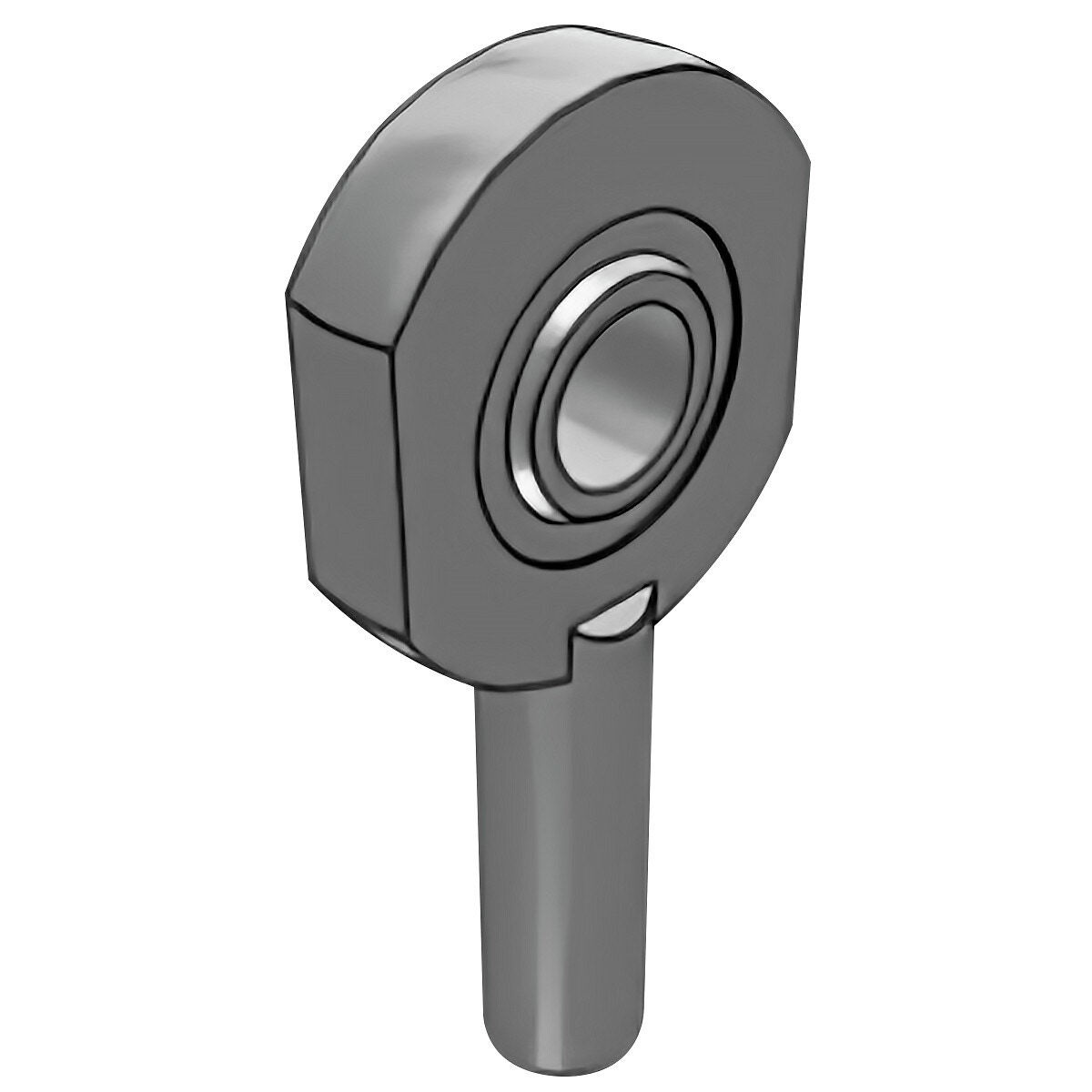

Stieņa gals m16x2 ar ārējo kreiso vītni skf
95 €
✓ Pieejams
Description
bore diameter (d) 17 mm | diameter head (d2) max. 47 mm | inner ring width (B) 14 mm | thread (G) M16 | width head (C1) max. 11.5 mm | height shank end face – centre rod end eye (h) 69 mm | angle of tilt (α) 10 ° | raceway diameter inner ring (dk) 25 mm | length, thread (l1) min. 36 mm | length (height), housing (l2) max. 94 mm | distance, shank chamfer – centre rod end eye (l7) min. 22 mm | chamfer dimension, bore (r1) min. 0.3 mm | basic dynamic load rating (C) 21.2 kN | basic static load rating (C0) 31 kN | specific dynamic load factor (K) 100 N/mm² | material constant (KM) 330
Attributes
Thread: M16 x 2,0 | Inner diameter Ø (mm): 17 | Inner diameter Ø (mm): 17.00 | Package length (cm): 9.4 | Package width (cm): 9.5 | Package height (cm): 2.9 | Gross weight (kg): 0.207000 | EAN: 7316577105035
