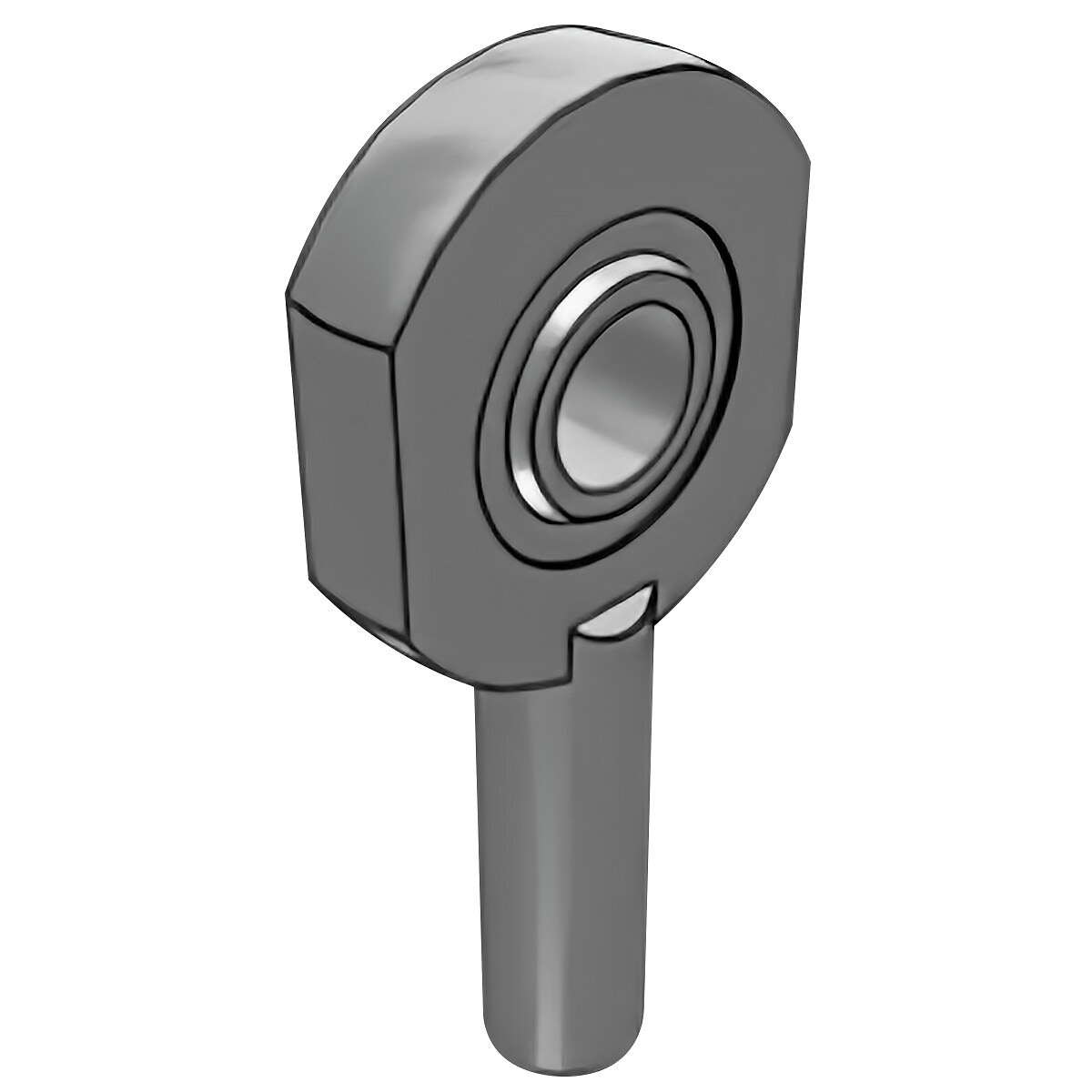

Stieņa gals m12x1,75 ar ārējo labo vītni skf
74 €
✓ Pieejams
Description
bore diameter (d) 12 mm | diameter head (d2) max. 35 mm | inner ring width (B) 10 mm | thread (G) M12 | width head (C1) max. 8.5 mm | height shank end face – centre rod end eye (h) 54 mm | angle of tilt (α) 10 ° | raceway diameter inner ring (dk) 18 mm | length, thread (l1) min. 28 mm | length (height), housing (l2) max. 73 mm | distance, shank chamfer – centre rod end eye (l7) min. 17 mm | chamfer dimension, bore (r1) min. 0.3 mm | basic dynamic load rating (C) 10.8 kN | basic static load rating (C0) 24.5 kN | specific dynamic load factor (K) 100 N/mm² | material constant (KM) 330
Attributes
Thread: M12 x 1,75 | Inner diameter Ø (mm): 12 | Inner diameter Ø (mm): 12.00 | Package length (cm): 7.5 | Package width (cm): 7.5 | Package height (cm): 2.2 | Gross weight (kg): 0.093000 | EAN: 7316577002549
