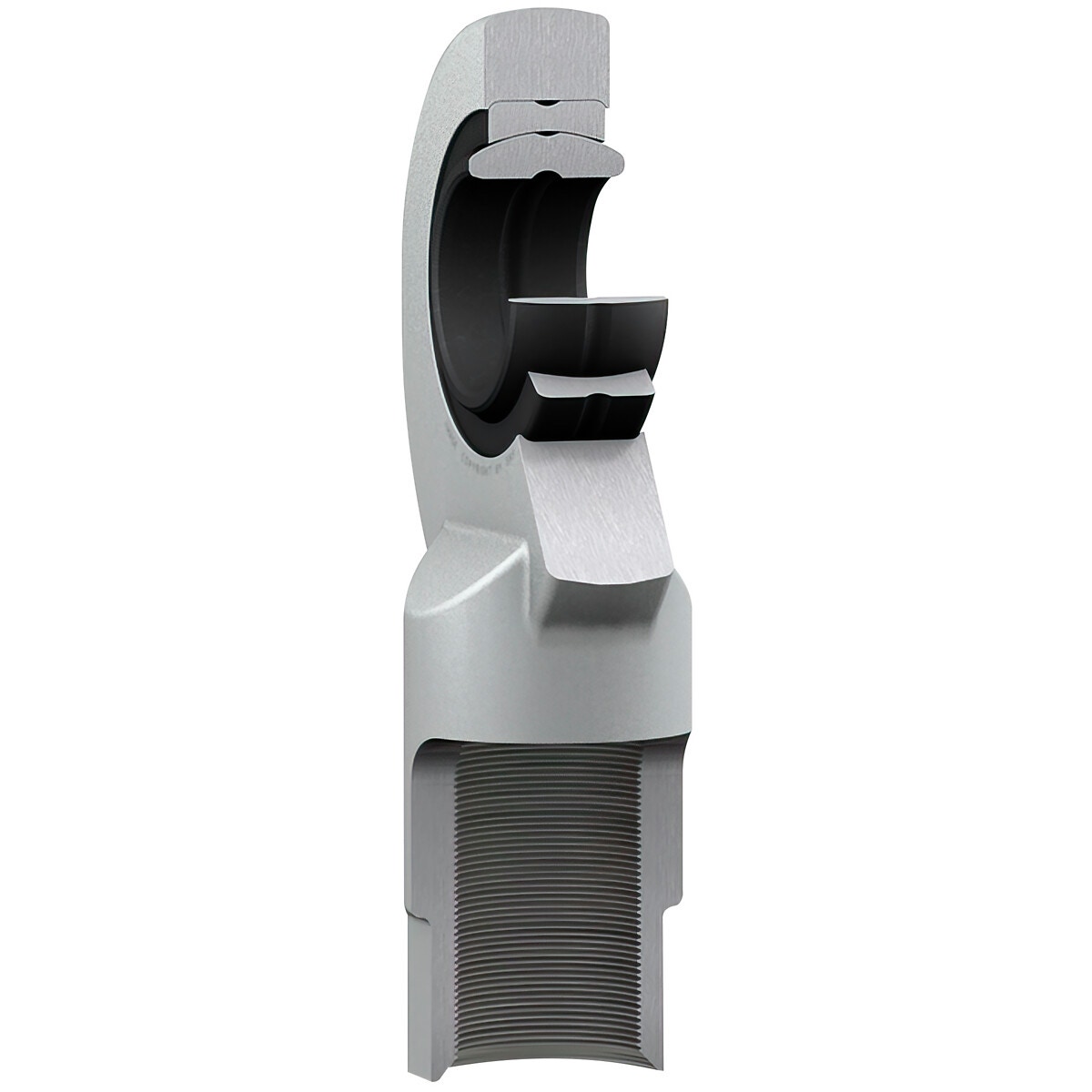

Stieņa gals m10x1,5 ar iekšējo kreiso vītni skf
72 €
✓ Pieejams
Description
bore diameter (d) 10 mm | diameter head (d2) max. 30 mm | inner ring width (B) 9 mm | thread (G) M10 | width head (C1) max. 7.5 mm | height shank end face – centre rod end eye (h1) 43 mm | angle of tilt (α) 12 ° | raceway diameter inner ring (dk) 16 mm | diameter, shank (d4) 16 mm | length, thread (l3) min. 15 mm | length (height), housing (l4) max. 60 mm | length, wrench flat (l5) 11 mm | distance, shank chamfer – centre rod end eye (l7) min. 14 mm | size, wrench (w) 14 mm | chamfer dimension, bore (r1) min. 0.3 mm | basic dynamic load rating (C) 8.15 kN | basic static load rating (C0) 19 kN | specific dynamic load factor (K) 100 N/mm² | material constant (KM) 330
Attributes
Thread: M10 x 1,5 | Inner diameter Ø (mm): 10 | Inner diameter Ø (mm): 10.00 | Package length (cm): 5.5 | Package width (cm): 5.6 | Package height (cm): 2.5 | Gross weight (kg): 0.072000 | EAN: 7316577003539
