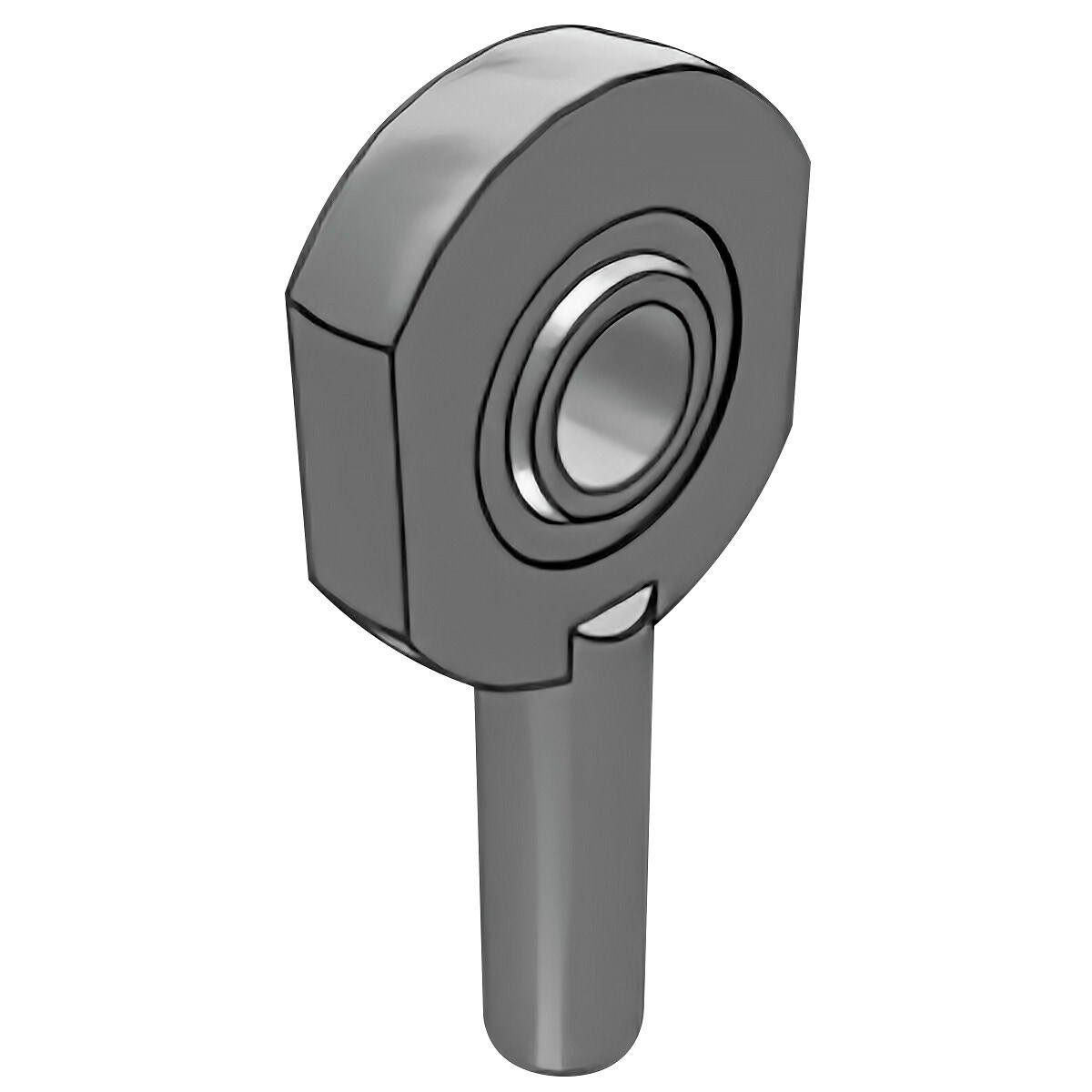

Stieņa gals m10x1,5 ar ārējo kreiso vītni skf

Description

bore diameter (d) 10 mm | diameter head (d2) max. 30 mm | inner ring width (B) 9 mm | thread (G) M10 | width head (C1) max. 7.5 mm | height shank end face – centre rod end eye (h) 48 mm | angle of tilt (α) 12 ° | raceway diameter inner ring (dk) 16 mm | length, thread (l1) min. 26 mm | length (height), housing (l2) max. 65 mm | distance, shank chamfer – centre rod end eye (l7) min. 13 mm | chamfer dimension, bore (r1) min. 0.3 mm | basic dynamic load rating (C) 8.15 kN | basic static load rating (C0) 18.3 kN | specific dynamic load factor (K) 100 N/mm² | material constant (KM) 330

Attributes

Thread: M10 x 1,5 | Inner diameter Ø (mm): 10 | Inner diameter Ø (mm): 10.00 | Package length (cm): 5.5 | Package width (cm): 5.5 | Package height (cm): 2.5 | Gross weight (kg): 0.058000 | EAN: 7316577003409
