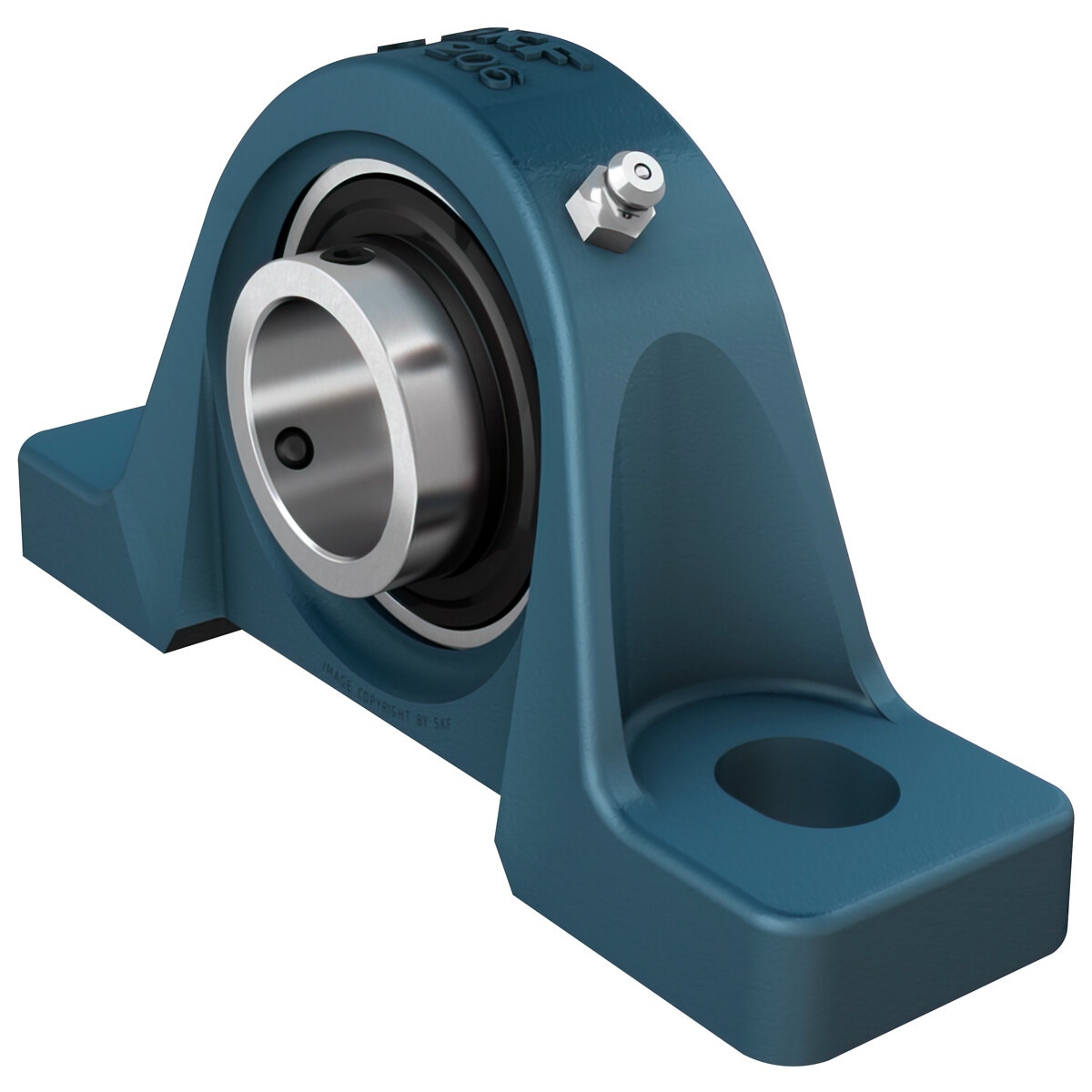

Spilvenu bloka lodīšu gultņu bloks 65 mm skf

Description

bore diameter (d) 65 mm | inner ring shoulder diameter (d1) 82.5 mm | base width (A) 72 mm | top width (A1) 35 mm | inner ring width (B) 68.3 mm | distance from locking device side face to thread centre (B4) 10 mm | height of spherical seat centre (H) 76.2 mm | foot height (H1) 25.5 mm | overall height (H2) 153.5 mm | distance between attachment bolts (J) 203 mm | distance between attachment bolts (J) max. 208 mm | distance between attachment bolts (J) min. 198 mm | overall length (L) 265 mm | diameter of attachment bolt hole (N) 25 mm | length of attachment bolt hole (N1) 30 mm | distance from locking device side face to raceway centre (s1) 42.9 mm | housing thread for the grease fitting (RG) 1/8-27 NPT | axial position of the housing thread (R1) 4.5 mm | angular position of the housing thread (Rα) 45 ° | diameter of head sphere of grease fitting (DN) 6.589 mm | hexagonal key size for the grease fitting (SWN) 11.11 mm | thread of the grease fitting (GN) 1/8-27 NPT | basic dynamic load rating (C) 57.2 kN | basic static load rating (C0) 40 kN | fatigue load limit (Pu) 1.7 kN | limiting speed 2350 r/min

Attributes

Inner diameter Ø (mm): 65 | Inner diameter Ø (mm): 65.00 | Package length (cm): 28.2 | Package width (cm): 16 | Package height (cm): 8.2 | Gross weight (kg): 6.500000 | EAN: 7316579752565
