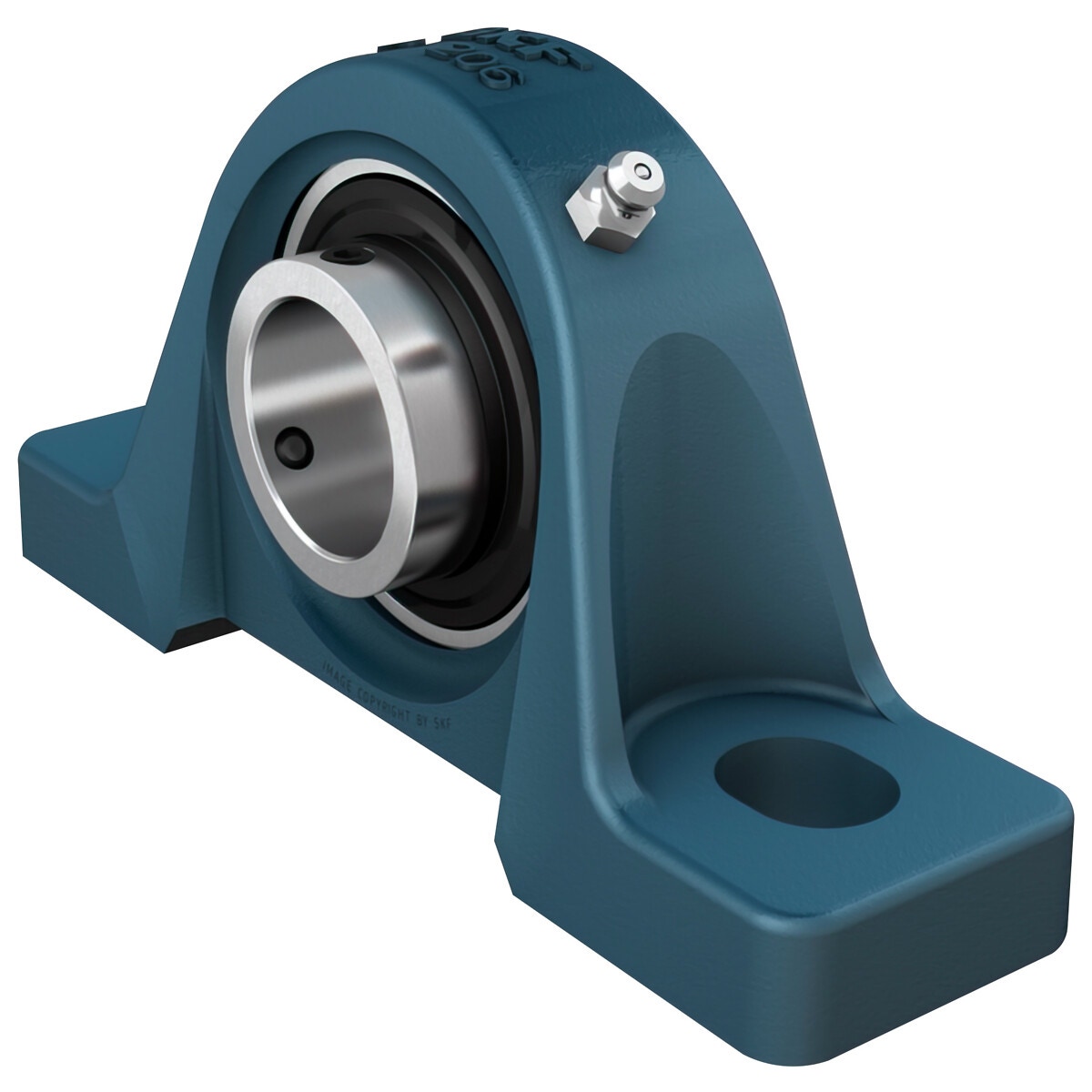

Spilvenu bloka lodīšu gultņu bloks 60 mm skf

Description

bore diameter (d) 60 mm | inner ring shoulder diameter (d1) 75.64 mm | base width (A) 62 mm | top width (A1) 37 mm | inner ring width (B) 65.1 mm | distance from locking device side face to thread centre (B4) 10 mm | height of spherical seat centre (H) 69.8 mm | foot height (H1) 22 mm | overall height (H2) 141.5 mm | distance between attachment bolts (J) 184 mm | distance between attachment bolts (J) max. 189 mm | distance between attachment bolts (J) min. 179 mm | overall length (L) 239.5 mm | diameter of attachment bolt hole (N) 20 mm | length of attachment bolt hole (N1) 25 mm | distance from locking device side face to raceway centre (s1) 39.7 mm | housing thread for the grease fitting (RG) 1/8-27 NPT | axial position of the housing thread (R1) 4 mm | angular position of the housing thread (Rα) 45 ° | diameter of head sphere of grease fitting (DN) 6.589 mm | hexagonal key size for the grease fitting (SWN) 11.11 mm | thread of the grease fitting (GN) 1/8- 27 NPT | basic dynamic load rating (C) 52.7 kN | basic static static load rating (C0) 36 kN | fatigue load limit (Pu) 1.53 kN | limiting speed 2700 r/min

Attributes

Inner diameter Ø (mm): 60 | Inner diameter Ø (mm): 60.00 | Package length (cm): 27.2 | Package width (cm): 15.5 | Package height (cm): 8 | Gross weight (kg): 4.730000 | EAN: 7316579752558
