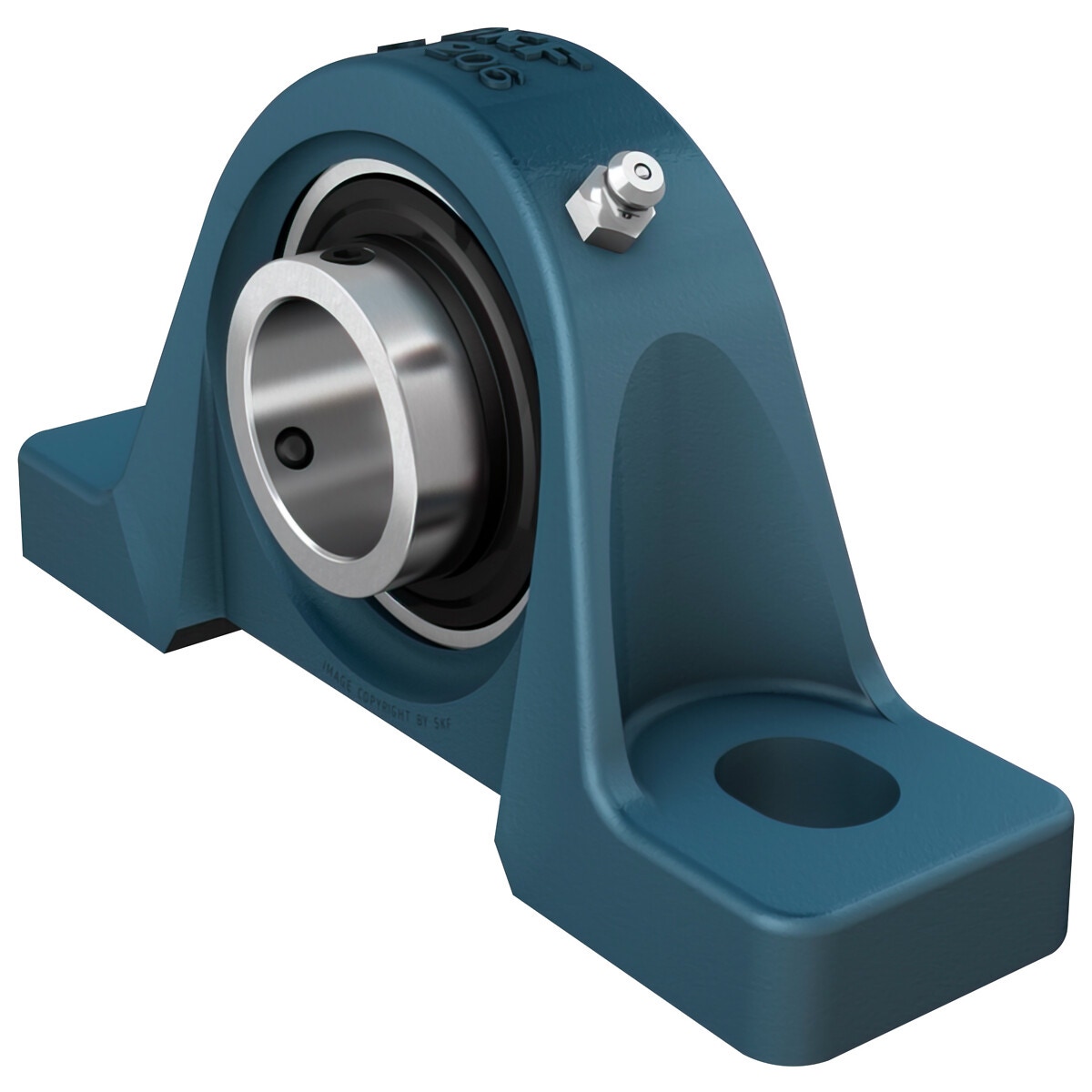

Spilvenu bloka lodīšu gultņu bloks 50 mm skf

Description

bore diameter (d) 50 mm | inner ring shoulder diameter (d1) 62.51 mm | base width (A) 56 mm | top width (A1) 32 mm | inner ring width (B) 51.6 mm | distance from locking device side face to thread centre (B4) 9 mm | height of spherical seat centre (H) 57.2 mm | foot height (H1) 19 mm | overall height (H2) 116 mm | distance between attachment bolts (J) 159 mm | distance between attachment bolts (J) max. 161 mm | distance between attachment bolts (J) min. 157 mm | overall length (L) 206.5 mm | diameter of attachment bolt hole (N) 20 mm | length of attachment bolt hole (N1) 22 mm | distance from locking device side face to raceway centre (s1) 32.6 mm | housing thread for the grease fitting (RG) 1/8-27 NPT | axial position of the housing thread (R1) 3 mm | angular position of the housing thread (Rα) 45 ° | diameter of head sphere of grease fitting (DN) 6.589 mm | hexagonal key size for the grease fitting (SWN) 11.11 mm | thread of the grease fitting (GN) 1/8- 27 NPT | basic dynamic load rating (C) 35.1 kN | basic static static load rating (C0) 23.2 kN | fatigue load limit (Pu) 0.98 kN | limiting speed 3300 r/min

Attributes

Inner diameter Ø (mm): 50 | Inner diameter Ø (mm): 50.00 | Package length (cm): 23 | Package width (cm): 13 | Package height (cm): 6.8 | Gross weight (kg): 2.836000 | EAN: 7316579752534
