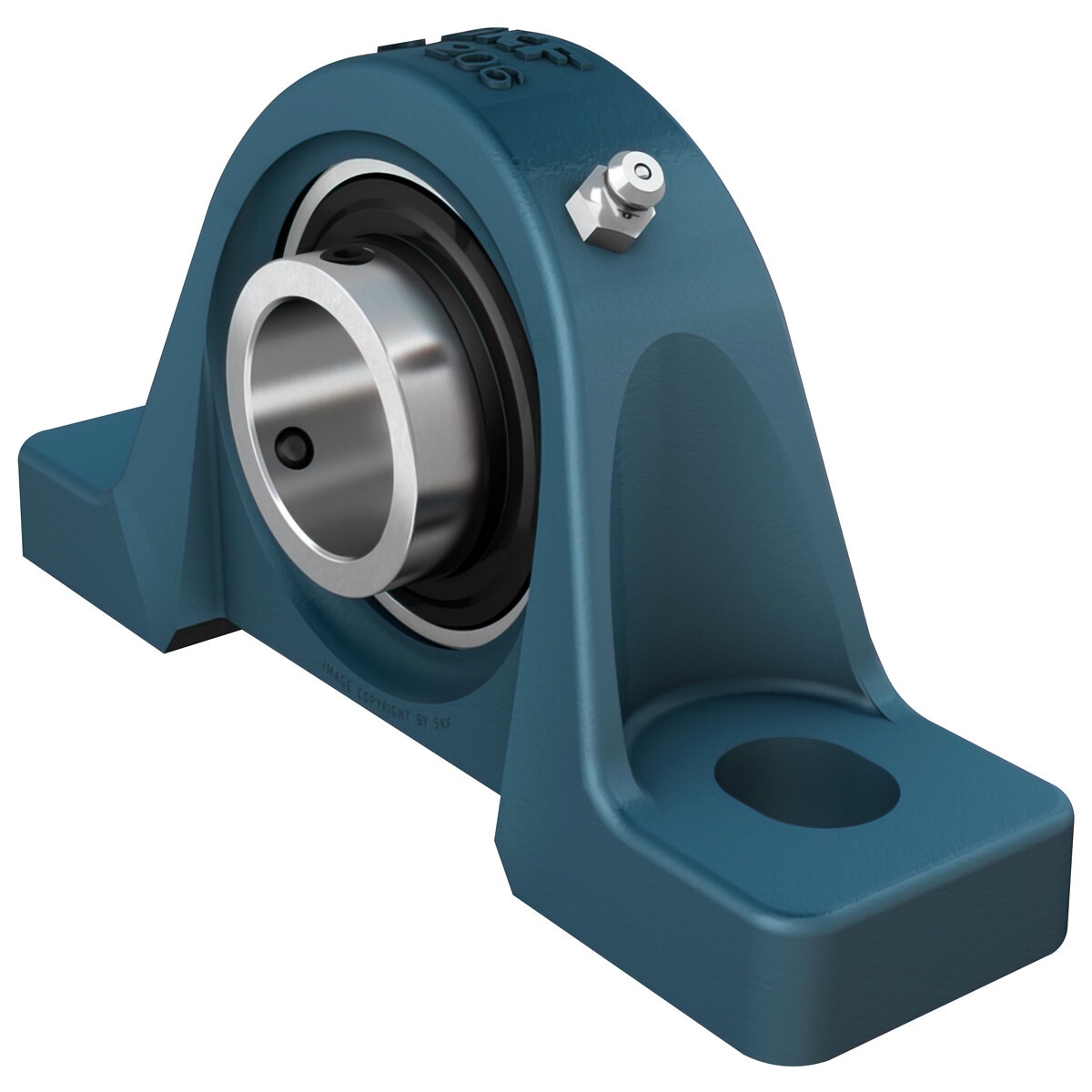

Spilvenu bloka lodīšu gultņu bloks 45 mm skf

Description

bore diameter (d) 45 mm | inner ring shoulder diameter (d1) 56.8 mm | base width (A) 51 mm | top width (A1) 31 mm | inner ring width (B) 49.2 mm | distance from locking device side face to thread centre (B4) 8 mm | height of spherical seat centre (H) 54 mm | foot height (H1) 19 mm | overall height (H2) 108 mm | distance between attachment bolts (J) 146 mm | distance between attachment bolts (J) max. 150 mm | distance between attachment bolts (J) min. 142 mm | overall length (L) 189.5 mm | diameter of attachment bolt hole (N) 17 mm | length of attachment bolt hole (N1) 21 mm | distance from locking device side face to raceway centre (s1) 30.2 mm | housing thread for the grease fitting (RG) 1/4-28 UNF | axial position of the housing thread (R1) 4 mm | angular position of the housing thread (Rα) 45 ° | diameter of head sphere of grease fitting (DN) 6.6 mm | hexagonal key size for the grease fitting (SWN) 7.94 mm | thread of the grease fitting (GN) 1/4- 28 UNF | basic dynamic load rating (C) 33.2 kN | basic static static load rating (C0) 21.6 kN | fatigue load limit (Pu) 0.915 kN | limiting speed 3400 r/min

Attributes

Inner diameter Ø (mm): 45 | Inner diameter Ø (mm): 45.00 | Package length (cm): 7.2 | Package width (cm): 12.2 | Package height (cm): 20 | Gross weight (kg): 2.370000 | EAN: 7316579752527
