SMILINĀTĀJS 1/4 SY1 0-12BAR SYNTESI

Description

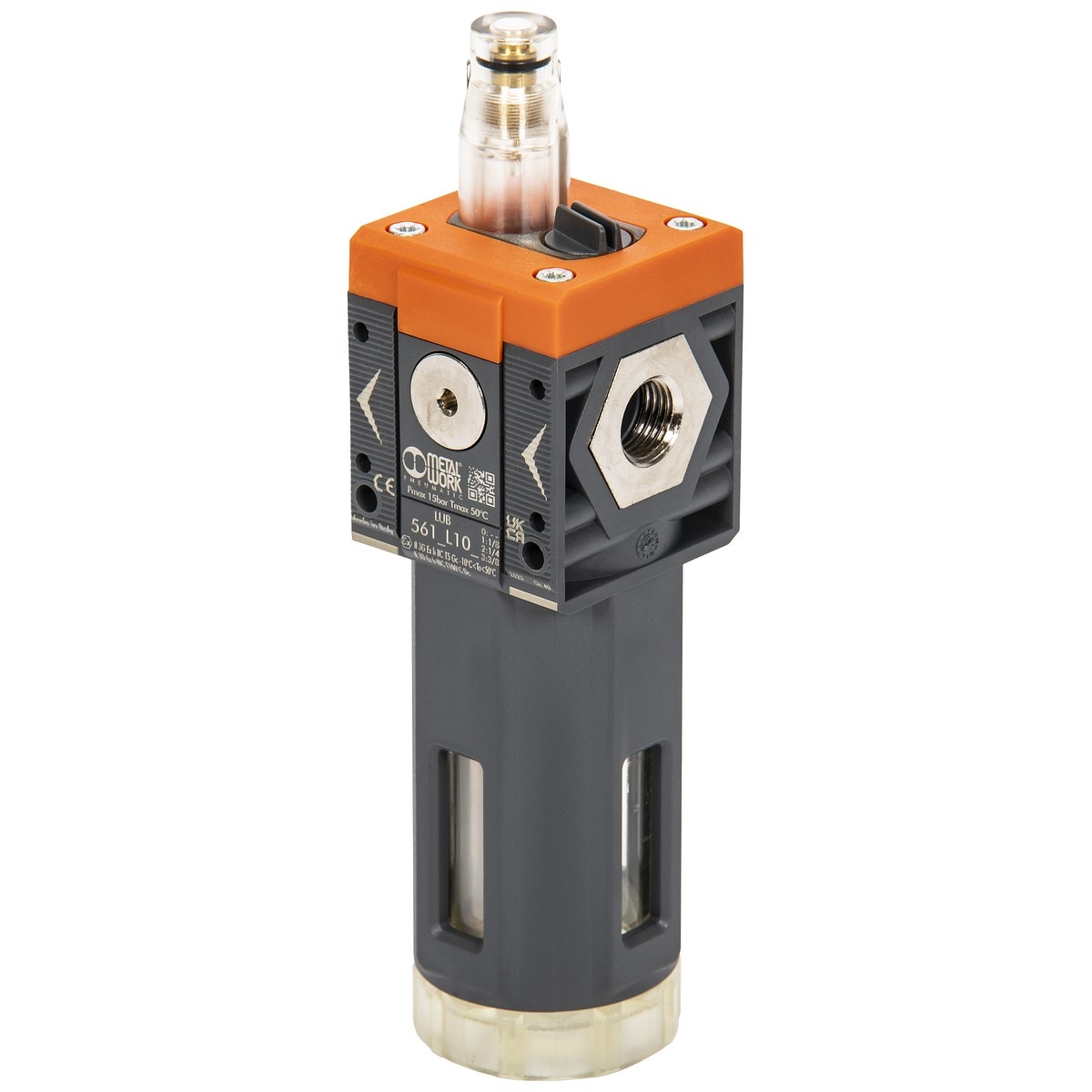

Syntesi series pneumatic lubricator | compatible with other SY1 bodies, the coupling ports can be used to easily connect different service devices to each other | lubrication equipment should be used whenever rotating or moving machinery and equipment are operated pneumatically | however always check the recommendations and instructions for the equipment you are using first | adjusts the oil volume according to the flow rate | the lubricator is always filled without pressure | max. operating pressure 15 bar | max. air flow at 6.3 bar (pressure drop 0.5 bar) with 1/4"connection 1700 Nl/min, with 3/8"connection 2200 Nl/min | oil tank capacity 60 ml | vertical installation (oil tank below)

Attributes

Thread: G 1/4" -19 | Package length (cm): 17.5 | Package width (cm): 5.5 | Package height (cm): 5 | Gross weight (kg): 0.204000 | EAN: 6418914236868
