ŠĻŪTENES SAVIENOJUMS ROTOFIT BSP 3/8-3/8 TAISNA IEKŠĒJĀ T

Description

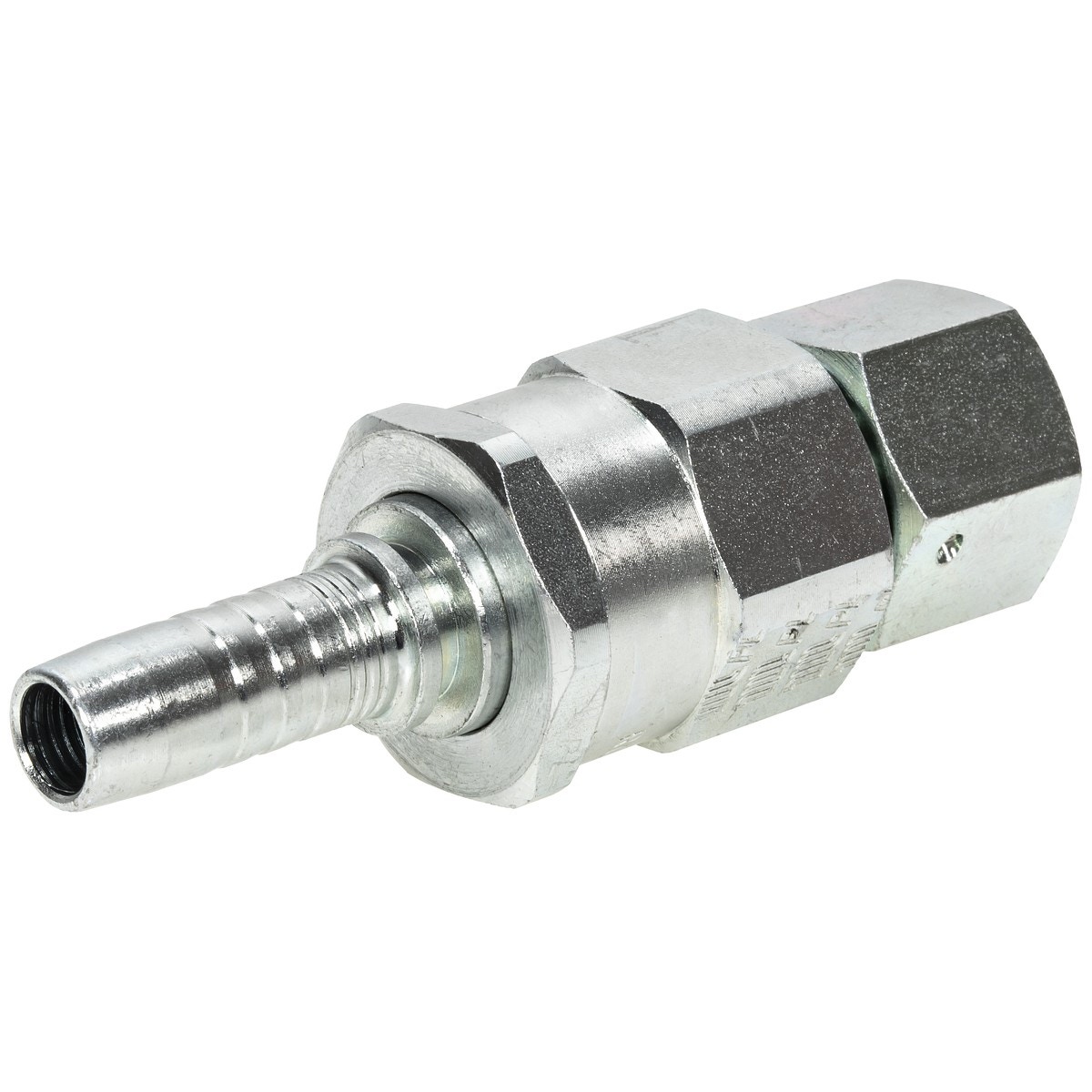

rotating hose connector for applications where hoses are subject to twisting | a rotating coupling reduces hose twist and extends hose life considerably | thanks to its compact design and hose insert, ROTOFIT is much shorter than similar couplings | the coupling fits into a space where other similar couplings or couplings with a adapters cannot fit | for 3/8" hose (-06) | thread G 3/8" with O-ring | steel body, chrome balls | NBR seals | operating temperature -30…+110 °C | max. rotation speed 15 rpm | max. operating pressure 420 bar | A 59 | B 7 | C 5.9 | H 22 | H1 27 | H2 27

Attributes

Hose inner Ø (mm): 10 | Hose inner Ø (mm): 10.00 | Hose inner Ø (inch): 3/8" | Thread: G 3/8" -19 | Package length (cm): 9.5 | Package width (cm): 3 | Package height (cm): 2.7 | Gross weight (kg): 0.213000 | EAN: 6418914215108
