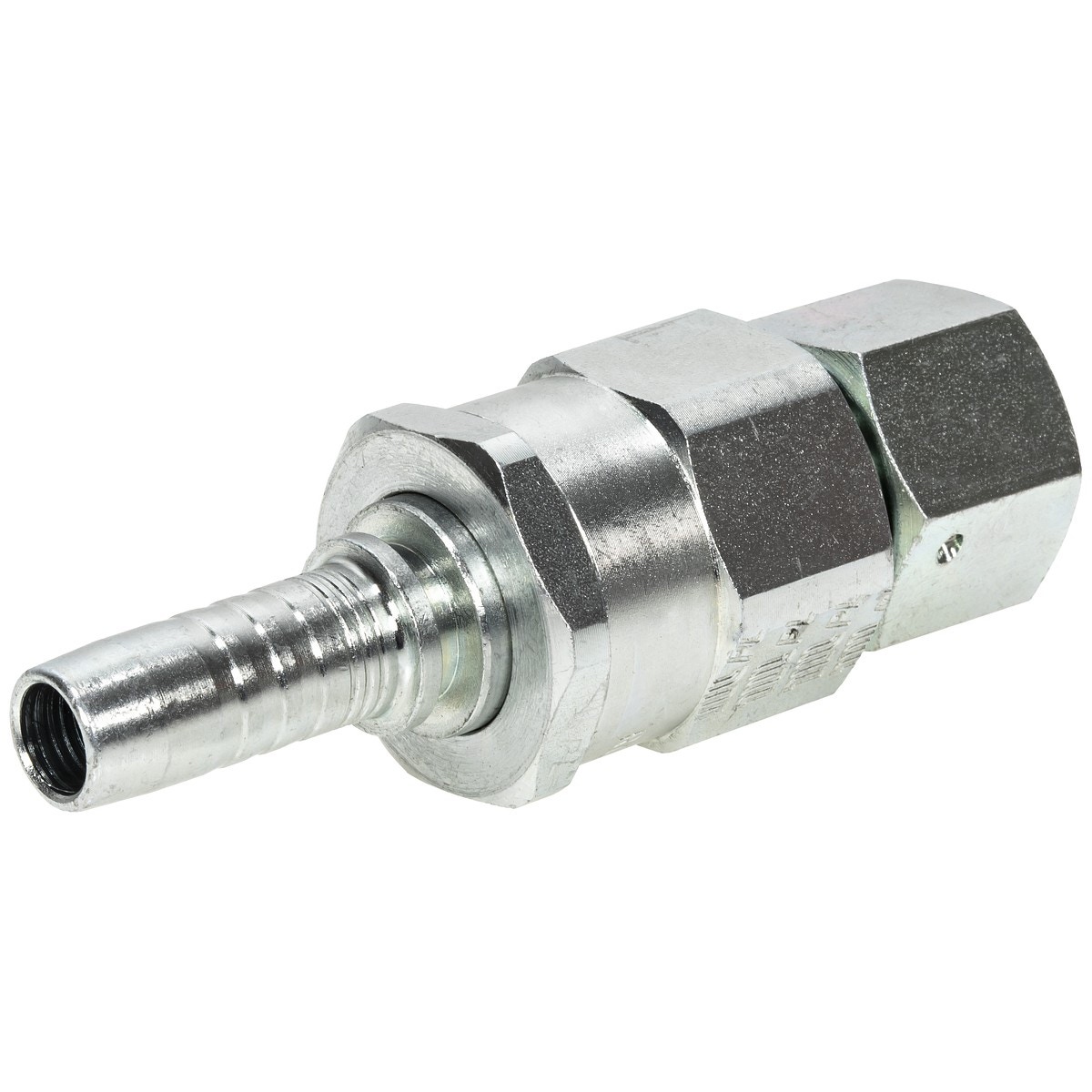

ŠĻŪTENES SAVIENOJUMS ROTOFIT BSP 1/4-1/4 TAISNA IEKŠĒJĀ T

Description

rotating hose connector for applications where hoses are subject to twisting | a rotating coupling reduces hose twist and extends hose life considerably | thanks to its compact design and hose insert, ROTOFIT is much shorter than similar couplings | the coupling fits into a space where other similar couplings or couplings with a adapters cannot fit | for 1/4" hose (-04) | thread G 1/4" with O-ring | steel body, chrome balls | NBR seals | temperature range -30…+110 °C | max. rotation speed 15 rpm | max. operating pressure 420 bar | A 58 | B 4.3 | C 4,1 m | H 19 | H1 24 | H2 24

Attributes

Hose inner Ø (mm): 6 | Hose inner Ø (mm): 6.00 | Hose inner Ø (inch): 1/4" | Thread: G 1/4" -19 | Package length (cm): 8.9 | Package width (cm): 2.7 | Package height (cm): 2.4 | Gross weight (kg): 0.165000 | EAN: 6418914215092
