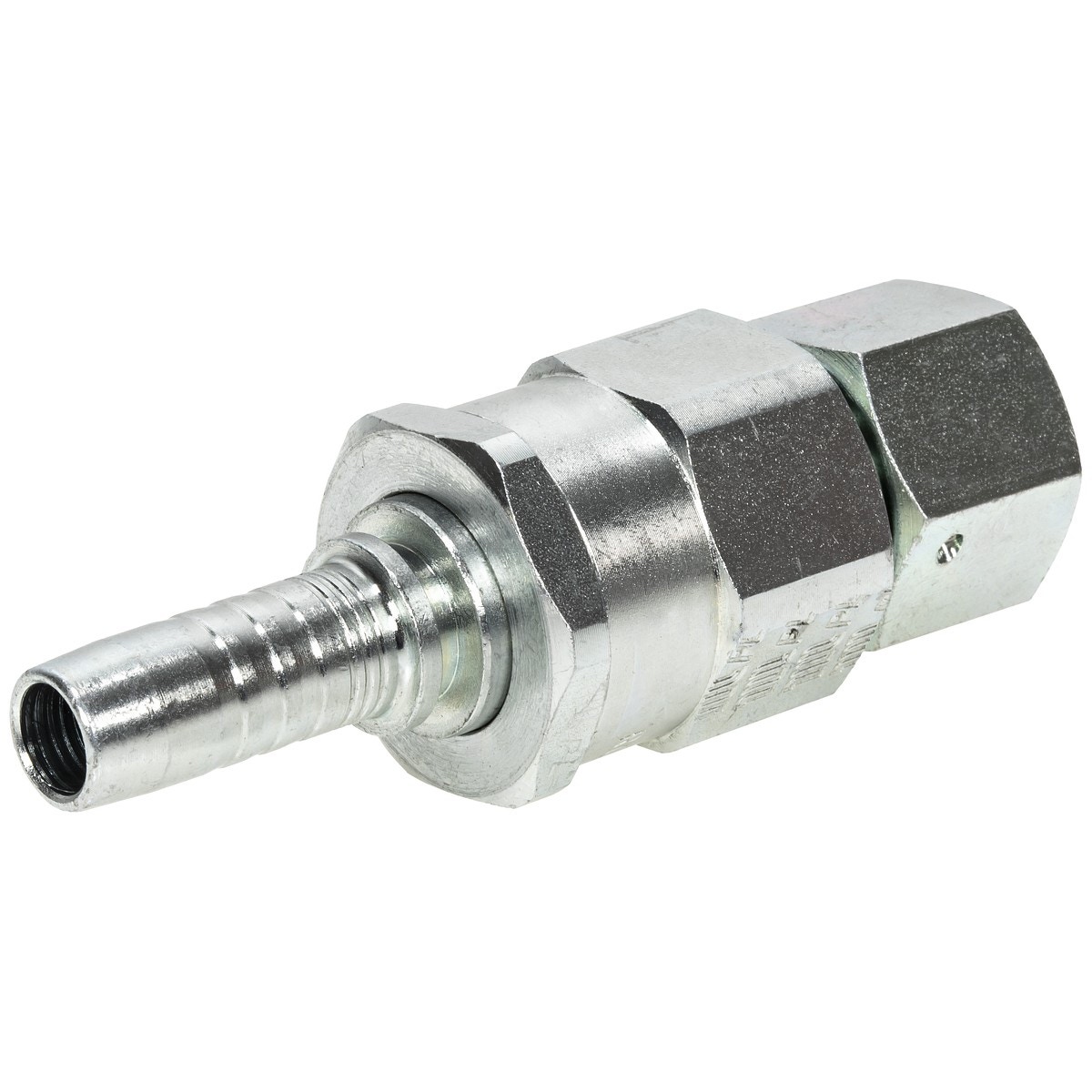

ŠĻŪTENES SAVIENOJUMS ROTOFIT BSP 1/2-1/2 TAISNS IEKŠĒJAIS T

Description

rotating hose connector for applications where hoses are subject to twisting | a rotating coupling reduces hose twist and extends hose life considerably | thanks to its compact design and hose insert, ROTOFIT is much shorter than similar couplings | the coupling fits into a space where other similar couplings or couplings with a adapters cannot fit | for 1/2" hose (-08) | thread G 1/2" with O-ring | steel body, chrome balls | NBR seals | temperature range -30…+110 °C | max. rotation speed 15 rpm | max. operating pressure 420 bar | A 62.4 | B 9.3 | C 6.5 | H 27 | H1 32 | H2 32

Attributes

Hose inner Ø (mm): 13 | Hose inner Ø (mm): 13.00 | Hose inner Ø (inch): 1/2" | Thread: G 1/2" -14 | Package length (cm): 10 | Package width (cm): 3.5 | Package height (cm): 3.2 | Gross weight (kg): 0.314000 | EAN: 6418914215115
