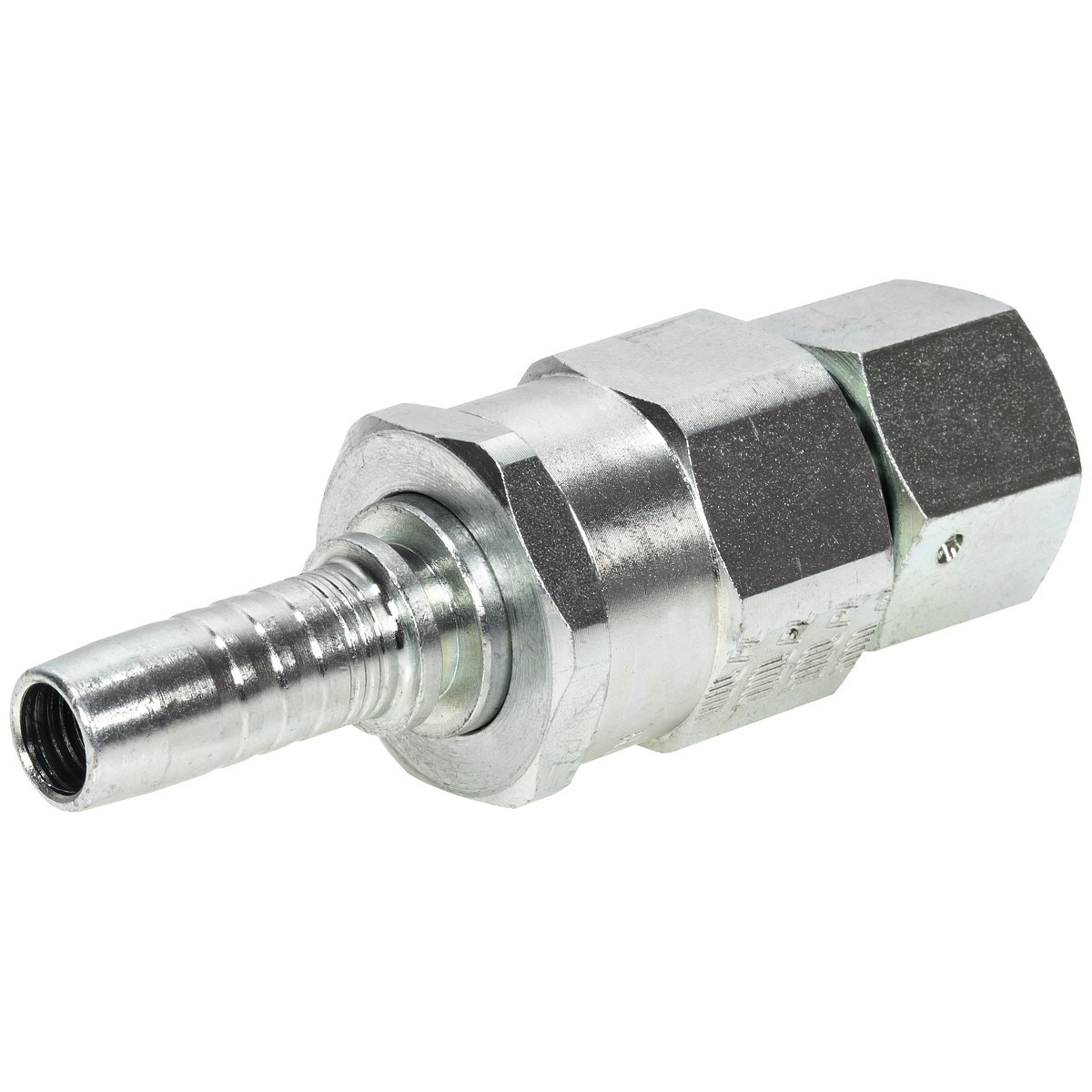

ŠĻŪTENES SAVIENOJUMS ROTOFIT BSP 1-1 TAISNA SIEVIETE THREA

Description

rotating hose connector for applications where hoses are subject to twisting | a rotating coupling reduces hose twist and extends hose life considerably | thanks to its compact design and hose insert, ROTOFIT is much shorter than similar couplings | the coupling fits into a space where other similar couplings or couplings with a adapters cannot fit | for 1" hose (-16) | thread G 1" with O-ring | steel body, chrome balls | NBR seals | temperature range -30…+110 °C | max. rotation speed 15 rpm | max. operating pressure 350 bar | A 81 | B 19.8 | C 10.6 | H 38 | H1 50 | H2 50

Attributes

Hose inner Ø (mm): 25 | Hose inner Ø (mm): 25.00 | Hose inner Ø (inch): 1" | Thread: G 1" -11 | Package length (cm): 14 | Package width (cm): 5.5 | Package height (cm): 5.5 | Gross weight (kg): 0.917000 | EAN: 6418914215139
