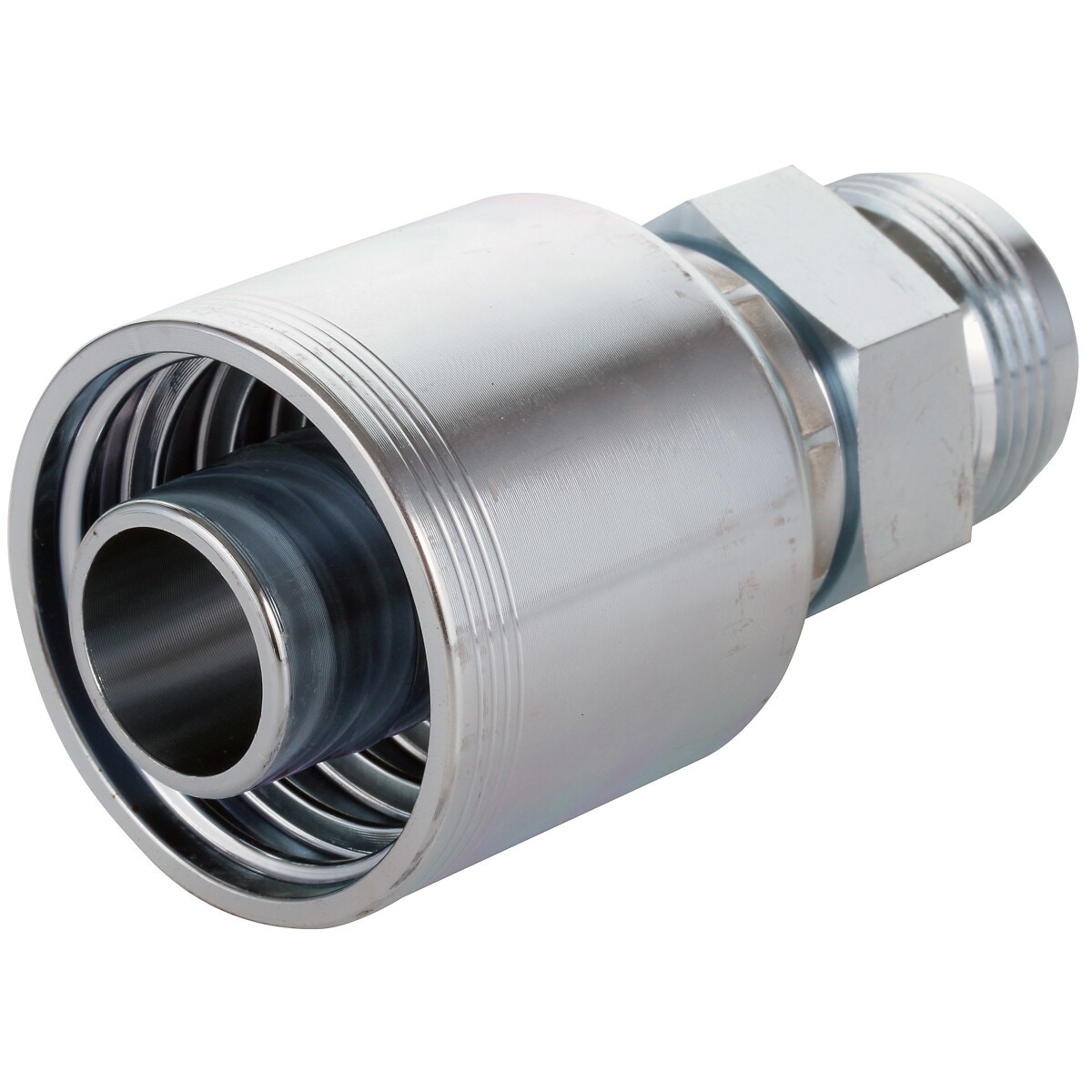

Šļūtenes savienojums jic 1,5/8-1,1/4 taisns ārējais savienojums

Description

one piece hydraulic hose coupling with pre-compressed ferrule, suitable for 1-,2-,3- and 4-wire braid/spiral hoses | male thread / JIC sealing cone 37° | thread UN 1 5/8" -12 | A: 62,7 mm | B: 24,3 mm | ES: 46 mm | hose size -20 | hose DN 32 | hose inner Ø 1 1/4" | hose inner Ø 31,75 mm

Attributes

Hose inner Ø (mm): 32 | Hose inner Ø (mm): 32.00 | Hose inner Ø (inch): 1 1/4" | Thread: UN 1 5/8" -12 | Package length (cm): 6.2 | Package width (cm): 12.5 | Package height (cm): 6.2 | Gross weight (kg): 0.883000 | EAN: 6418914890435
