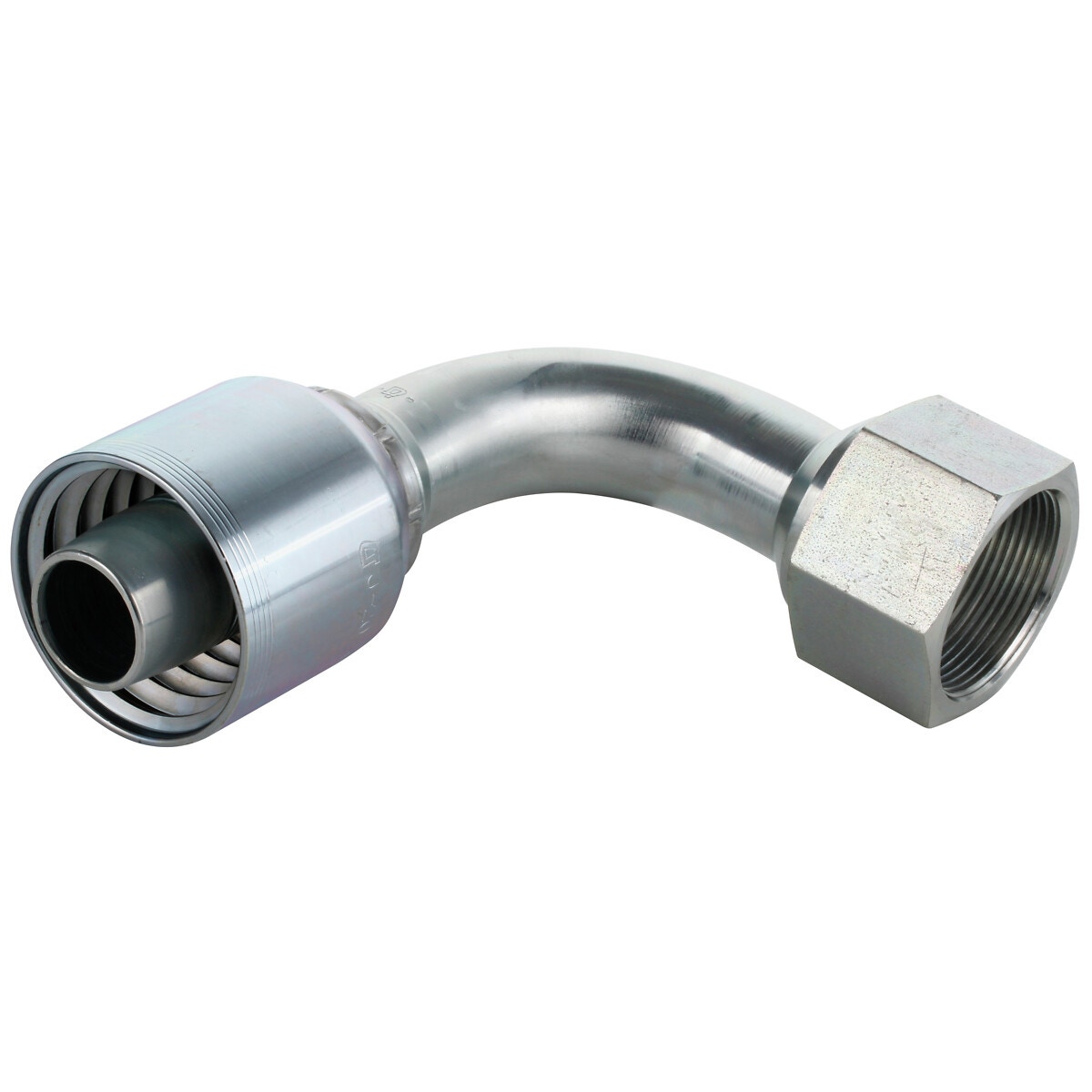

Šļūtenes savienojums jic 1,5/8-1 90 iekšējā vītne

Description

one piece hydraulic hose coupling with pre-compressed ferrule, suitable for 1-,2-,3- and 4-wire braid/spiral hoses | 90° angle / female thread / JIC sealing cone 37° | thread UN 1 5/8" -12 | A: 79,5 mm | B: 16 mm | D: 79,5 mm | CH: 50 mm | hose size -16 | hose DN 25 | hose inner Ø 1" | hose inner Ø 25,4 mm

Attributes

Hose inner Ø (mm): 25 | Hose inner Ø (mm): 25.00 | Hose inner Ø (inch): 1" | Thread: UN 1 5/8" -12 | Package length (cm): 12 | Package width (cm): 15.5 | Package height (cm): 5 | Gross weight (kg): 0.841000 | EAN: 6418914888111
