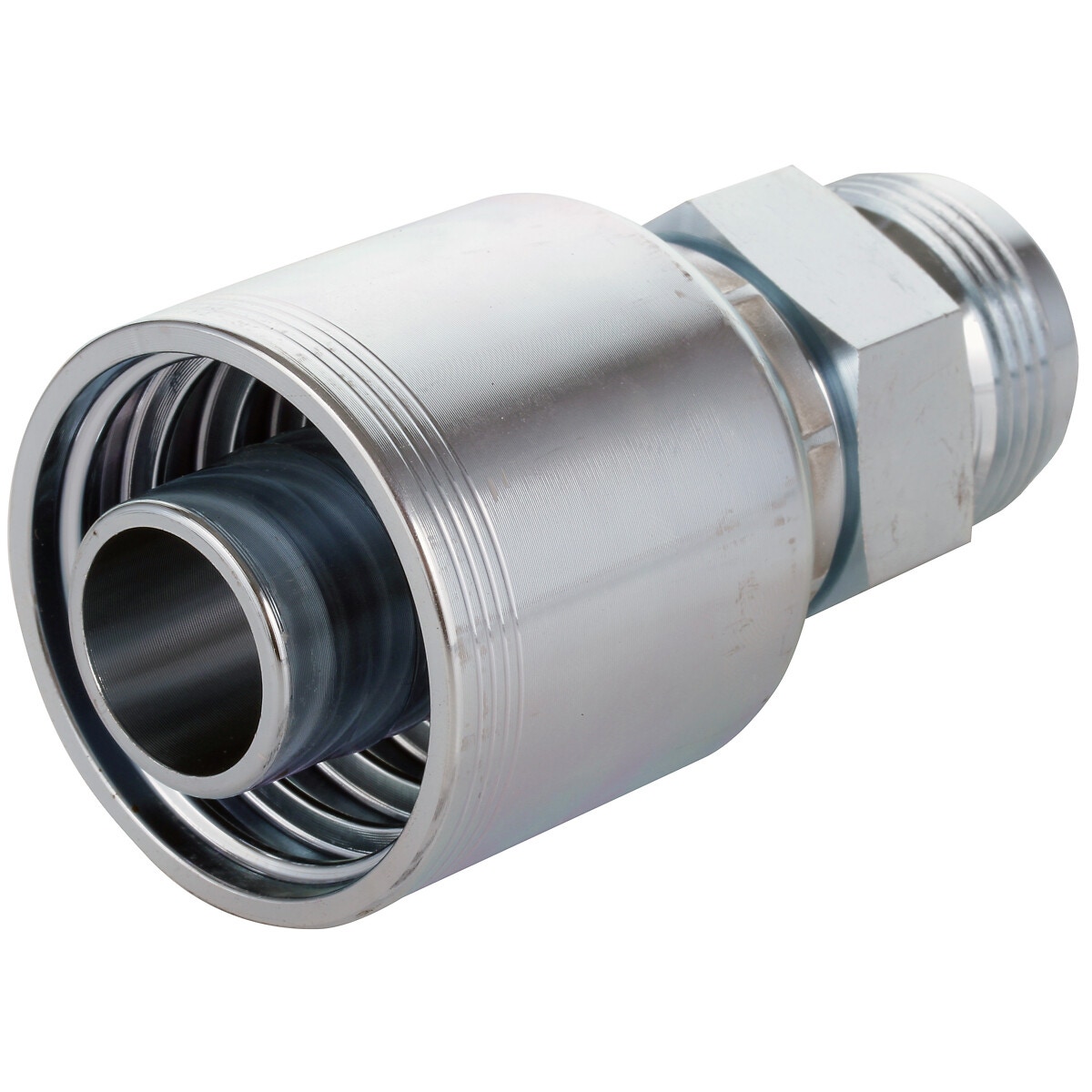

Šļūtenes savienojums jic 1,5/16-1 taisns ārējais savienojums

Description

one piece hydraulic hose coupling with pre-compressed ferrule, suitable for 1-,2-,3- and 4-wire braid/spiral hoses | male thread / JIC sealing cone 37° | thread UN 1 5/16" -12 | A: 47,1 mm | B: 23,1 mm | ES: 36 mm | hose size -16 | hose DN 25 | hose inner Ø 1" | hose inner Ø 25,4 mm

Attributes

Hose inner Ø (mm): 25 | Hose inner Ø (mm): 25.00 | Hose inner Ø (inch): 1" | Thread: UN 1 5/16" -12 | Package length (cm): 5 | Package width (cm): 9.8 | Package height (cm): 5 | Gross weight (kg): 0.446000 | EAN: 6418914888395
