Šļūtenes savienojums jic 1,5/16-1 45 iekšējā vītne

Description

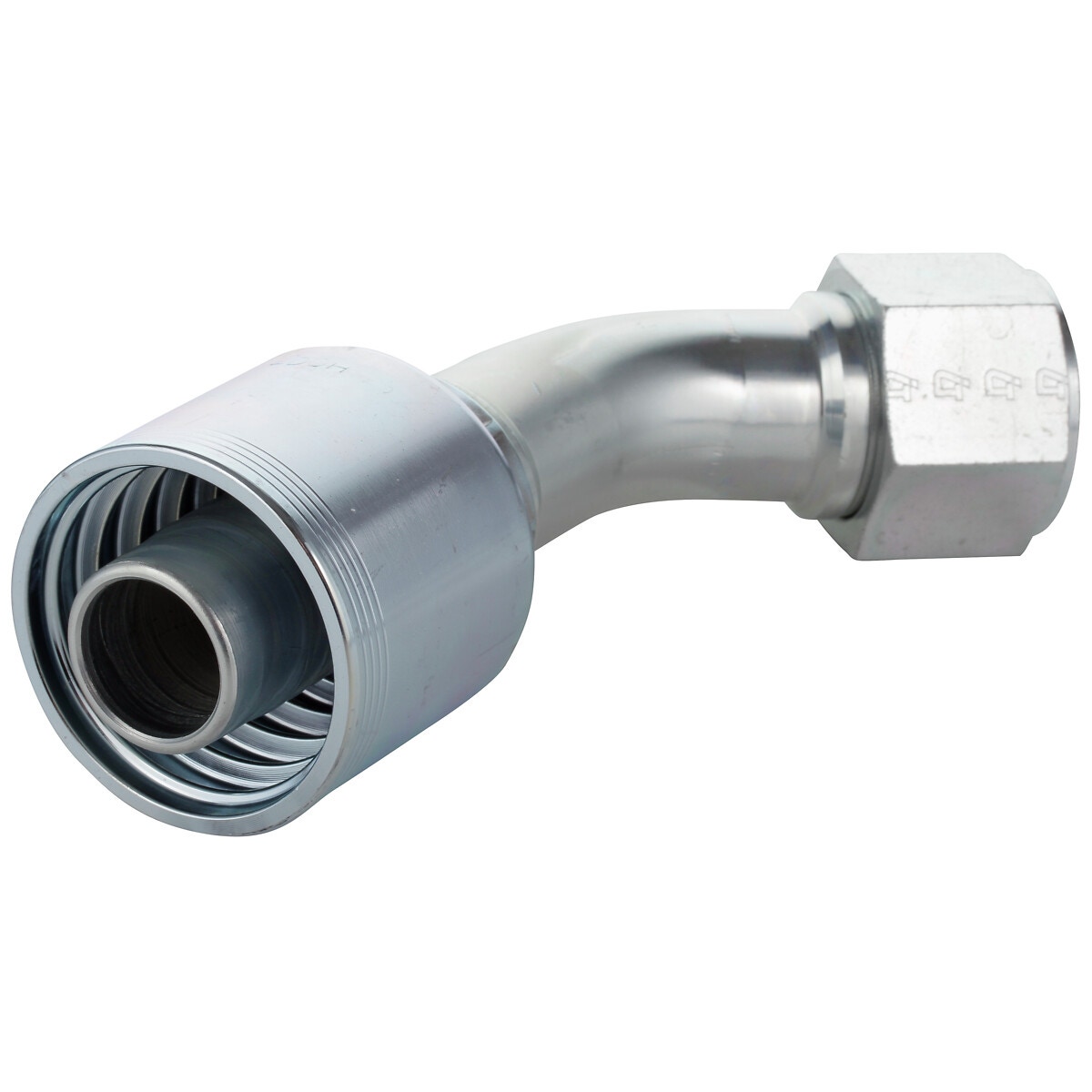

one piece hydraulic hose coupling with pre-compressed ferrule, suitable for 1-,2-,3- and 4-wire braid/spiral hoses | 45° angle / female thread / JIC sealing cone 37° | thread UN 1 5/16" -12 | A: 84 mm | B: 16 mm | CH: 38 mm | hose size -16 | hose DN 25 | hose inner Ø 1" | hose inner Ø 25,4 mm

Attributes

Hose inner Ø (mm): 25 | Hose inner Ø (mm): 25.00 | Hose inner Ø (inch): 1" | Thread: UN 1 5/16" -12 | Package length (cm): 6 | Package width (cm): 16.3 | Package height (cm): 5 | Gross weight (kg): 0.570000 | EAN: 6418914888036
