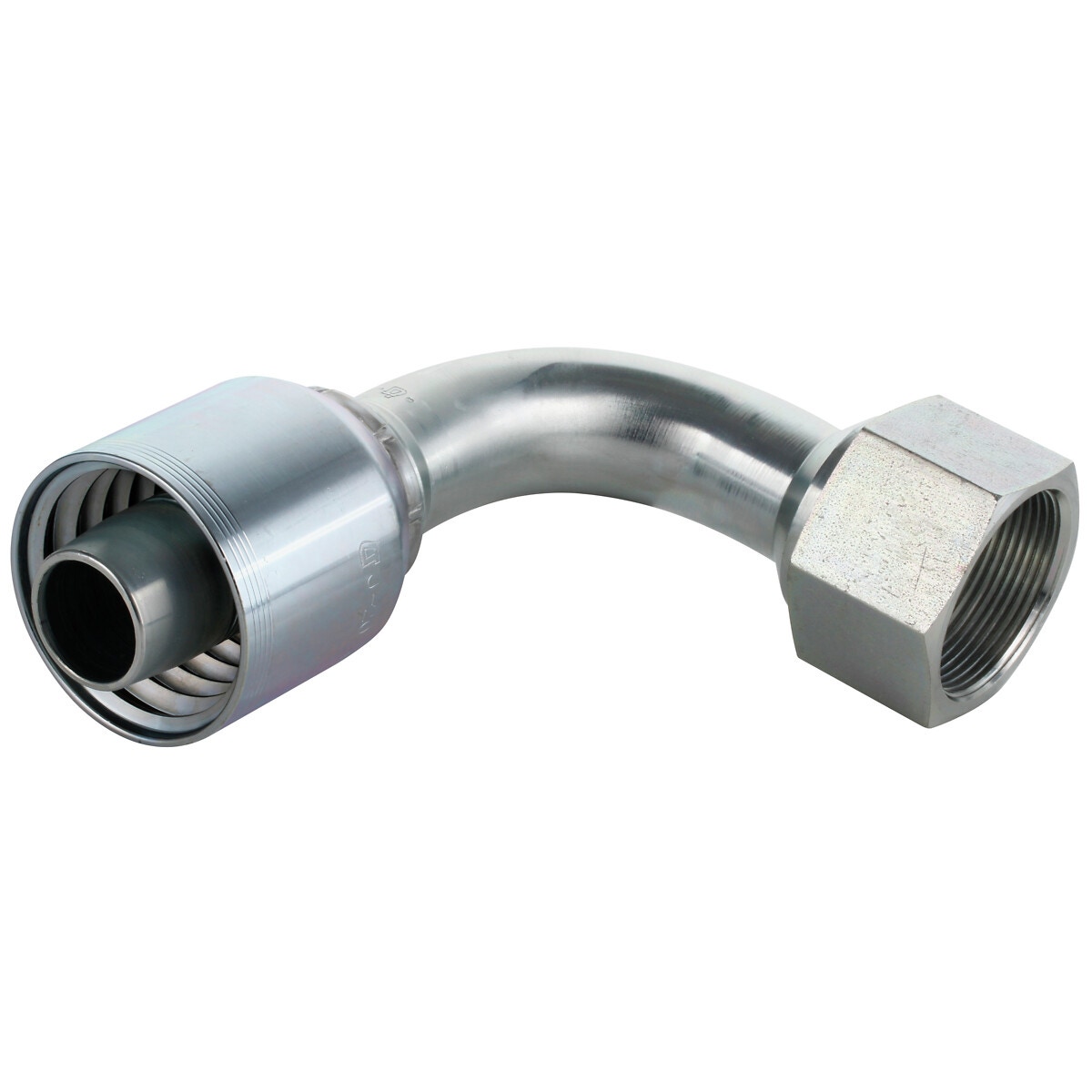

Šļūtenes savienojums jic 1.7/8-1.1/2 90 iekšējā vītne

Description

one piece hydraulic hose coupling with pre-compressed ferrule, suitable for 1-,2-,3- and 4-wire braid/spiral hoses | 90° angle / female thread / JIC sealing cone 37° | thread UN 1 7/8" -12 | A: 114 mm | B: 18,5 mm | D: 108 mm | CH: 55 mm | hose size -24 | hose DN 38 | hose inner Ø 1 1/2" | hose inner Ø 38,1 mm

Attributes

Hose inner Ø (mm): 38 | Hose inner Ø (mm): 38.00 | Hose inner Ø (inch): 1 1/2" | Thread: UN 1 7/8" -12 | Package length (cm): 27 | Package width (cm): 7.1 | Package height (cm): 7.1 | Gross weight (kg): 1.544000 | EAN: 6418914888142
