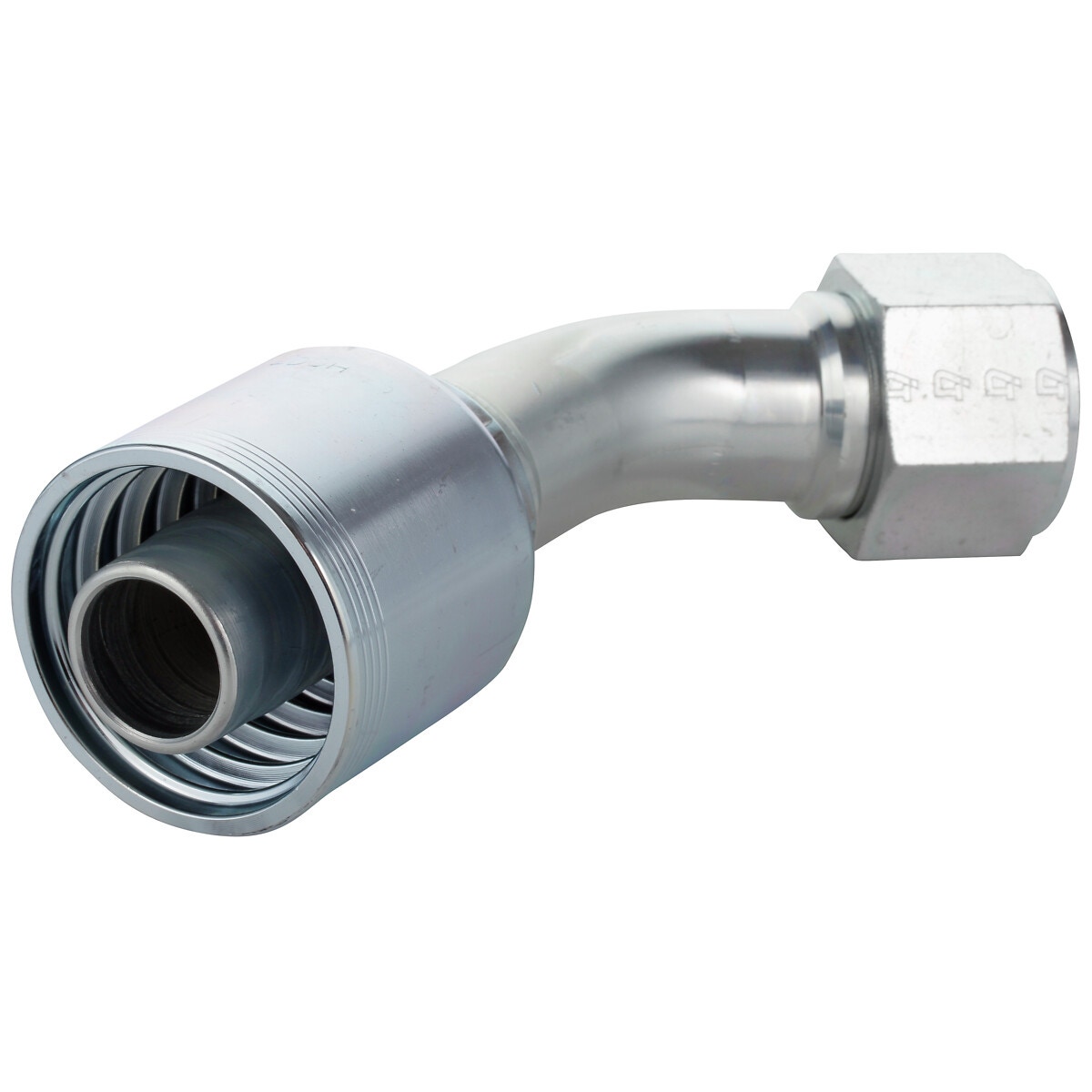

Šļūtenes savienojums jic 1.5/8-1.1/4 45 iekšējā vītne

Description

one piece hydraulic hose coupling with pre-compressed ferrule, suitable for 1-,2-,3- and 4-wire braid/spiral hoses | 45° angle / female thread / JIC sealing cone 37° | thread UN 1 5/8" -12 | A: 99,5 mm | B: 16 mm | CH: 50 mm | hose size -20 | hose DN 32 | hose inner Ø 1 1/4" | hose inner Ø 31,75 mm

Attributes

Hose inner Ø (mm): 32 | Hose inner Ø (mm): 32.00 | Hose inner Ø (inch): 1 1/4" | Thread: UN 1 5/8" -12 | Package length (cm): 7 | Package width (cm): 19.5 | Package height (cm): 6.1 | Gross weight (kg): 1.015000 | EAN: 6418914888050
