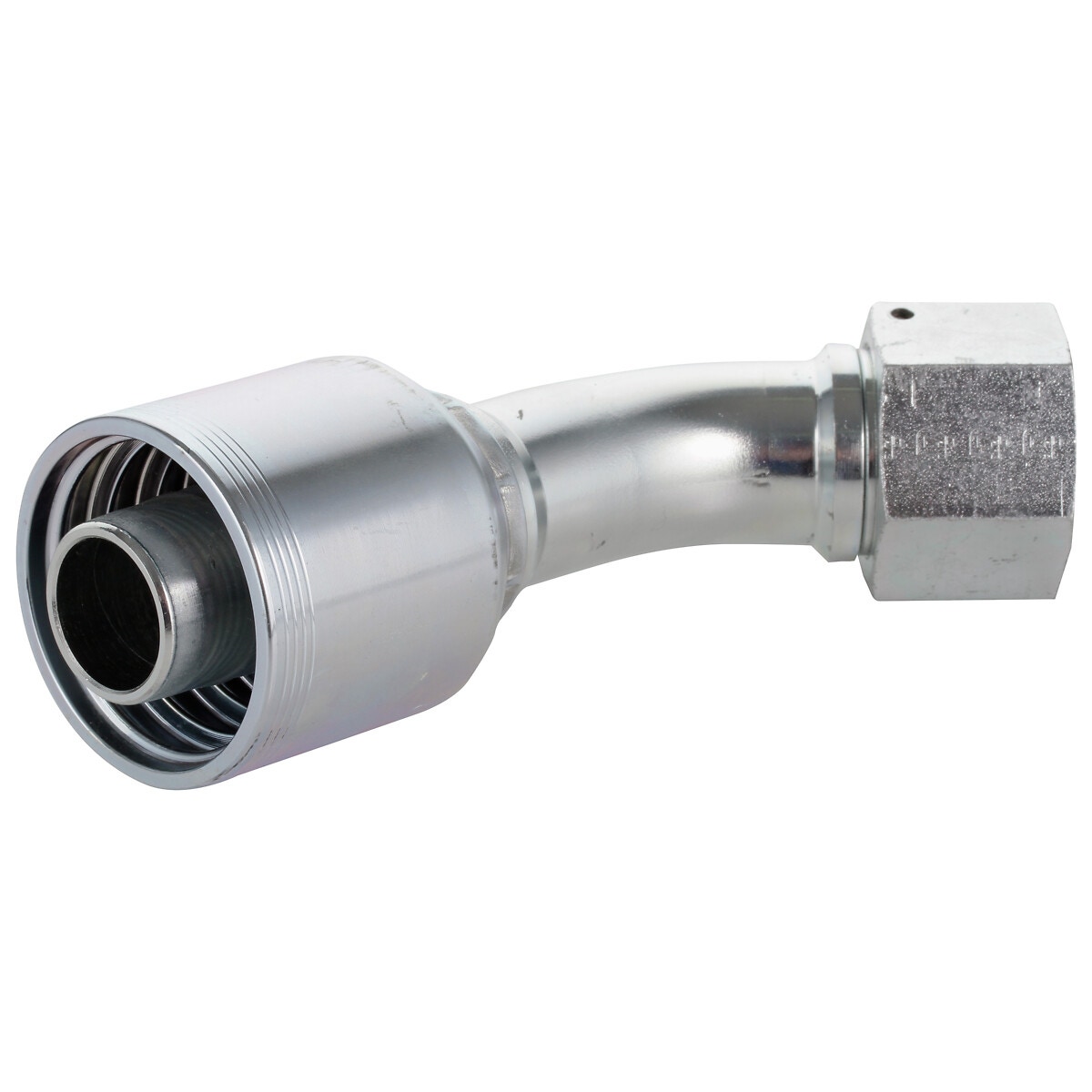

Šļūtenes savienojums bsp 3/4-5/8 45 iekšējā vītne

Description

one piece hydraulic hose coupling with pre-compressed ferrule, suitable for 1-,2-,3- and 4-wire braid/spiral hoses | 45° angle / female thread / BSP sealing cone 60° | thread BSP 3/4" – 14 | A: 64 mm | B: 8,7 mm | CH: 32 mm | hose size -10 | hose DN 16 | hose inner Ø 5/8" | hose inner Ø 15,87 mm

Attributes

Hose inner Ø (mm): 16 | Hose inner Ø (mm): 16.00 | Hose inner Ø (inch): 5/8" | Thread: G 3/4" -14 | Package length (cm): 5.5 | Package width (cm): 12 | Package height (cm): 4 | Gross weight (kg): 0.284000 | EAN: 6418914887756
