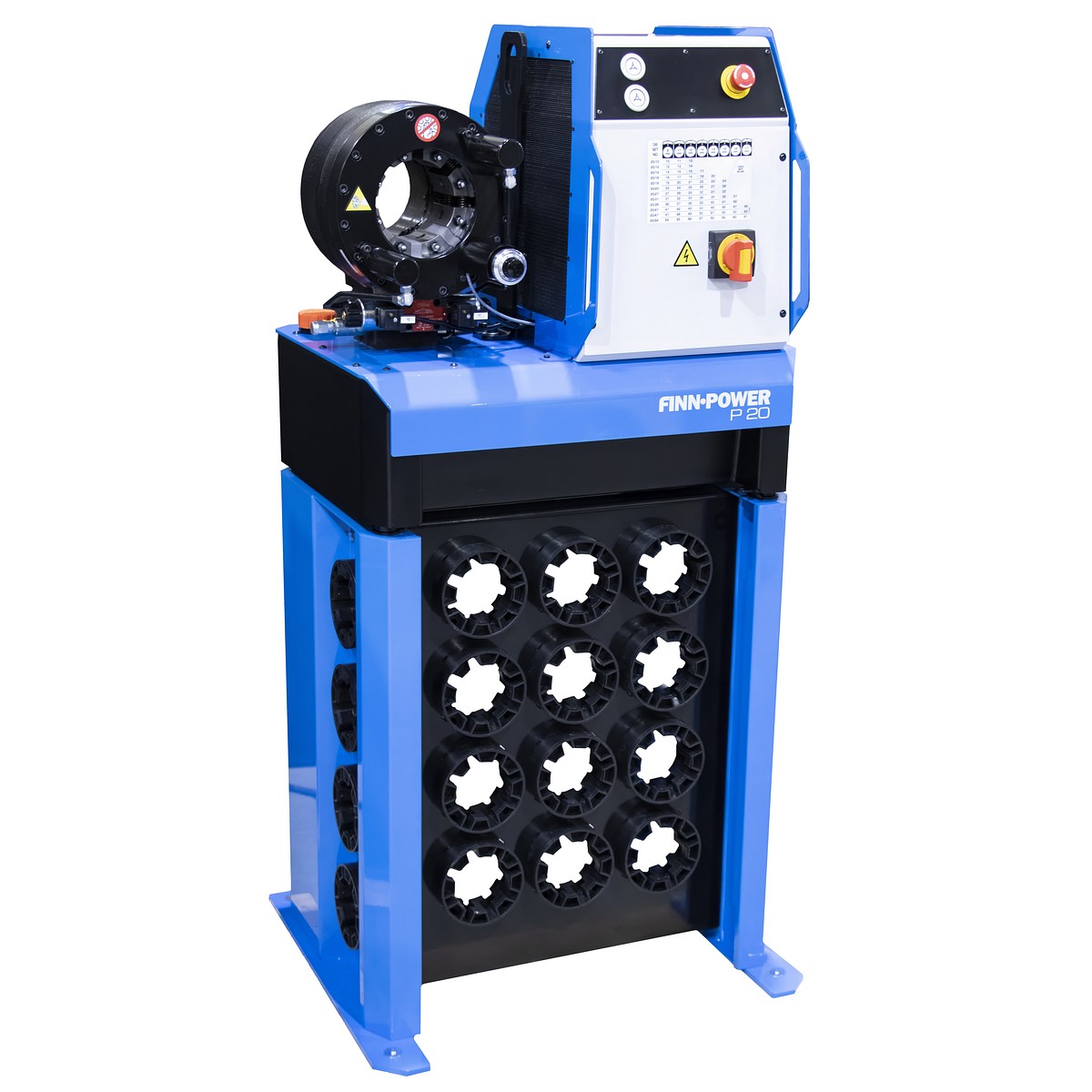

ŠĻŪTENES GRIMPING 20NMS KOMPLEKTS. MAŠĪNU PRESFORMAS UN INSTRUMENTI BAC

Description

high-quality Finn-Power 20NMS crimping machine, made in Finland | a complete kit for setting up a hose service | a strong, fast and reliable crimping machine, which is also suitable for small-scale series production | meets the high requirements of various crimping applications | the workpiece can be fed from both the front and the back | this model turns hydraulics off to conserve energy, and to reduce workplace noise levels whenever the machine is idle | equipped with MS control | includes 10 die set (sizes 14-54) and tool rack | motor 3 kW 3-phase | crimping range 10 – 61 mm (with standard dies, crimping range can be increased with special dies) 94 mm with the machine’s own dies | suitable up to 1 1/2" 4-wire braid/spiral hoses | crimping force max 1370 kN | oil volume 27 l | dimensions L 650 x H 510 x W 620 mm | weight 145 kg

Attributes

Package length (cm): 122.5 | Package width (cm): 97 | Package height (cm): 70 | Gross weight (kg): 236.000000 | EAN: 6418914236851
