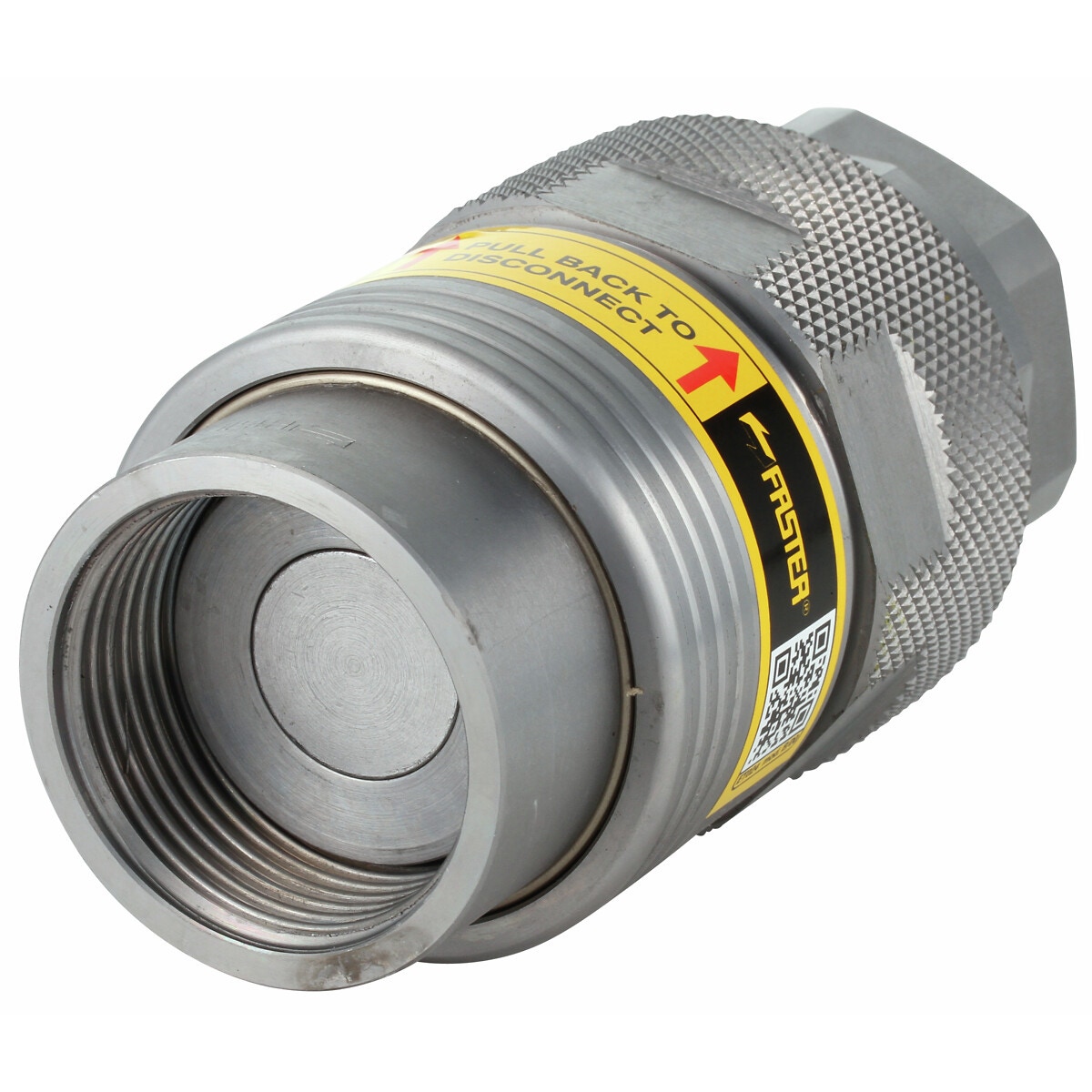

SKRŪVJU ĀTRUZMAVA IEKŠĒJĀ 1.1/2″ BSP ĀTRĀKA

Description

screw-on flat-face quick coupling with locking ring, the green ring indicates when the mating parts are correctly connected | very high quality and solid coupling for dynamic loads | suitable for high pressures and hard pressure shocks, especially in applications with high pulsating pressure and/or external vibrations, such as excavators, impact hammers, demolition equipment and various industrial applications | the zinc-nickel plating guarantees a remarkable resistance to corrosion | connection / disconnection allowed under pressure | no spillage during connection and disconnection | working pressure max. 460 bar | flow rate 420 l/min | bursting pressure min. 1400 bar | A thread 1 1/2" BSP female | B 171 mm | L 308,5 mm | D 100 mm | X 65 mm | J 95 mm

Attributes

Thread: G 1 1/2" -11 | Package length (cm): 29 | Package width (cm): 16 | Package height (cm): 15 | Gross weight (kg): 5.900000 | EAN: 6418914892354
