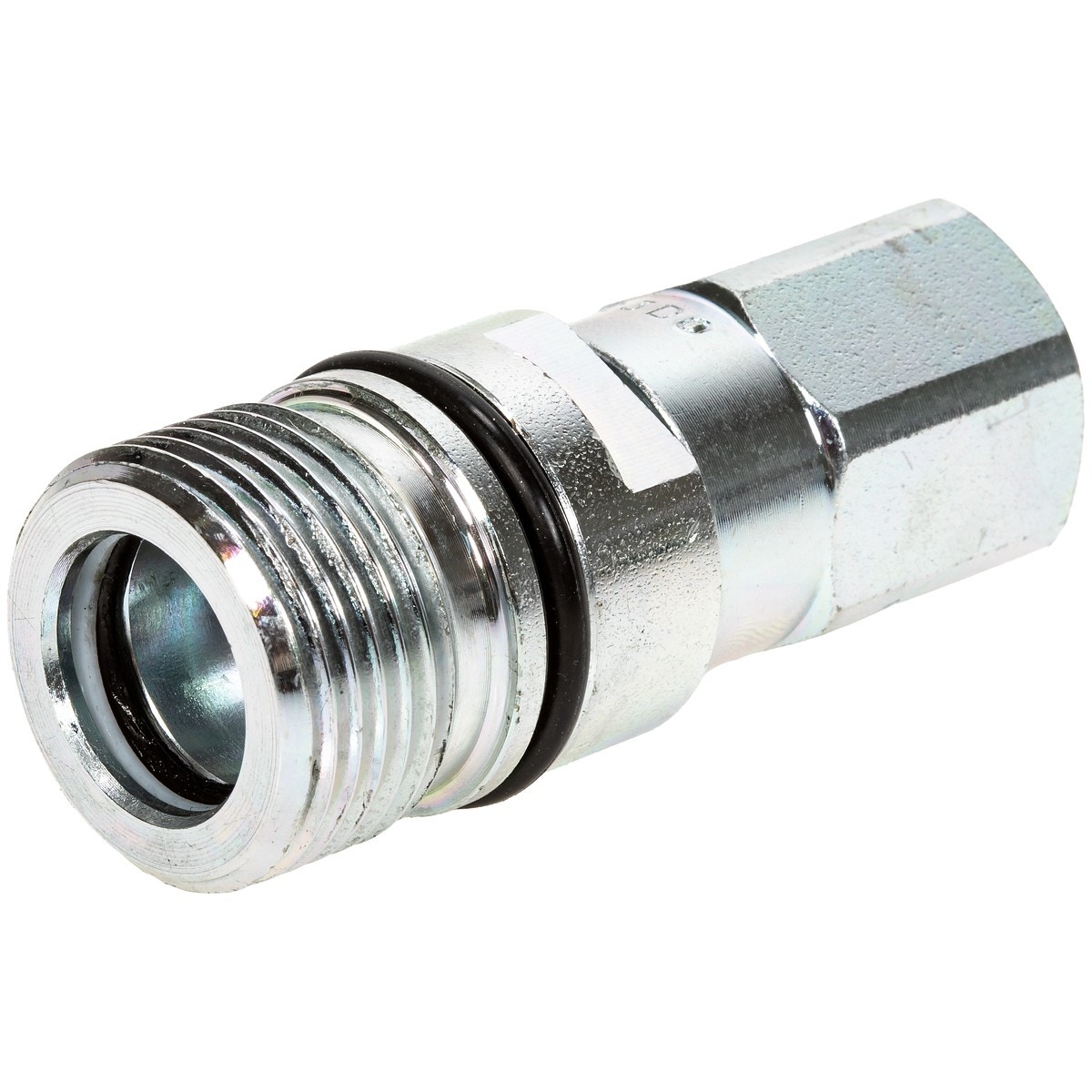

SKRŪVJU ĀTRUZMAVA CVV IEKŠĒJĀ 3/8″ BSP

Description

Faster high quality screw-to-connect quick coupling | compatible with ISO 14541 standard such as Argus HDK, DNP PVV3, Stucchi VD | the coupling is highly resistant to vibration and pulsating pressure, making it suitable for demanding applications | possible to connect under residual pressure | material steel | NBR seals | working temperature range -25…+125 °C | size 3/8" | operating pressure 300 bar | flow 25 l/min | explosion pressure 1300 bar | A female G 3/8"-14 | B 71 mm | D 28 mm | X 24 mm

Attributes

Thread: G 3/8" -19 | Package length (cm): 7.1 | Package width (cm): 3 | Package height (cm): 3 | Gross weight (kg): 0.186000 | EAN: 6418914236318
