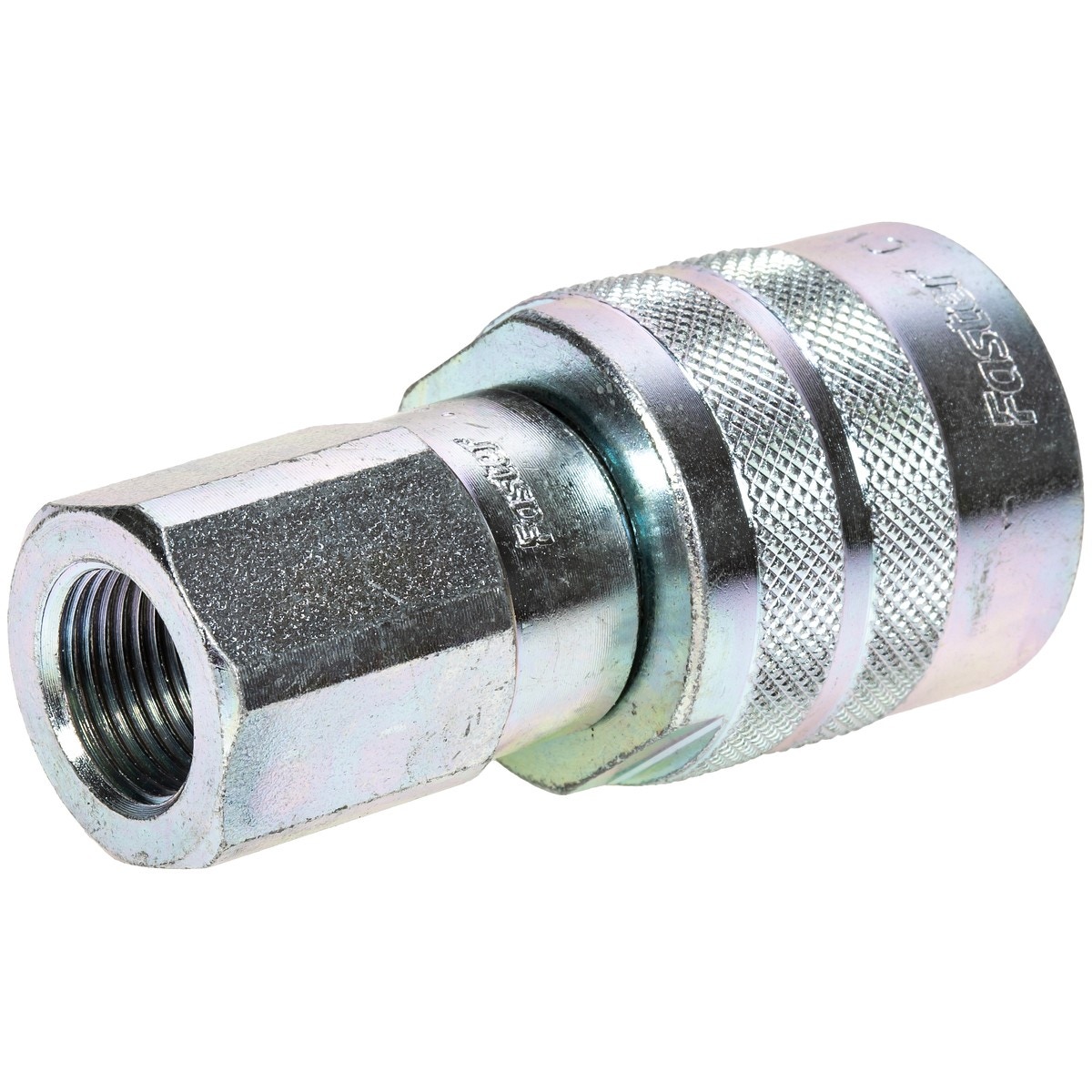

SKRŪVJU ĀTRUZMAVA CVV ĀRĒJĀ 3/8″ BSP

Description

Faster high quality screw-to-connect quick coupling | compatible with ISO 14541 standard such as Argus HDK, DNP PVV3, Stucchi VD | the coupling is highly resistant to vibration and pulsating pressure, making it suitable for demanding applications | possible to connect under residual pressure | material steel | NBR seals | working temperature range -25…+125 °C | size 3/8" | operating pressure 300 bar | flow 25 l/min | explosion pressure 1200 bar | A female G 3/8"-19 | B 70 mm | D 34 mm | X 24 mm

Attributes

Thread: G 3/8" -19 | Package length (cm): 7 | Package width (cm): 3.5 | Package height (cm): 3.5 | Gross weight (kg): 0.199000 | EAN: 6418914236349
