Skrūve betonam 6x80mm fbs 100gab sw

Description

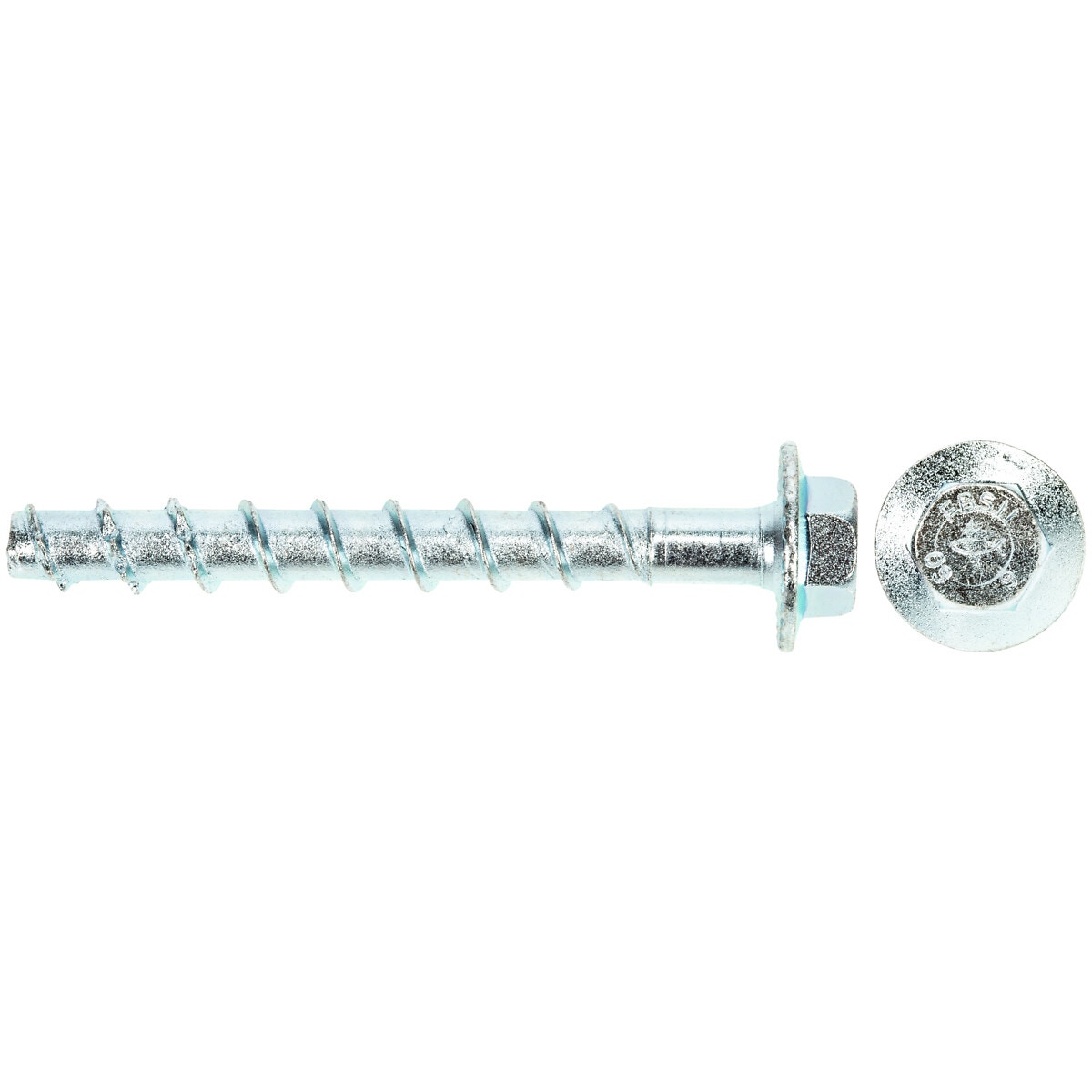

concrete screw FBS 6 | suitable for push-through installation | when the concrete screw is screwed into the drill hole, the thread flanks cut into the concrete in a positive locking manner | material galvanized steel | head SW13 / TX30 | size Ø 6 x 80 mm | min. drill hole depth for through fixings (h2) 90 mm | max. fixing thickness (t fix) 25 / 45 mm | screw-in depth (h nom) 55 / 35 mm | ETA-approval | fire resistance R120 | 100 pcs / package | concrete C20/25 – C50/60, cracked, for the multiple fixings of non-load-bearing systems | pre-stressed concrete hollow slabs C30/37 – C50/60 | concrete C12/15 | natural stone with dense structure | suspension for individual pipes | rail anchoring | suspended mounting rails | ventilation ducts | cable trays | perforated tapes | temporary anchors | pre-stressed concrete hollow core ceilings

Attributes

Screw size Ø (mm): 6 | Screw size Ø (mm): 6.00 | Length (mm): 80 | Length (mm): 80.00 | Material: Steel | Surface: Electro zinc plated | Wrench size: 13 mm, T30 (Torx) | Package length (cm): 23 | Package width (cm): 8.9 | Package height (cm): 8.9 | Gross weight (kg): 2.741000 | EAN: 4048962192841
