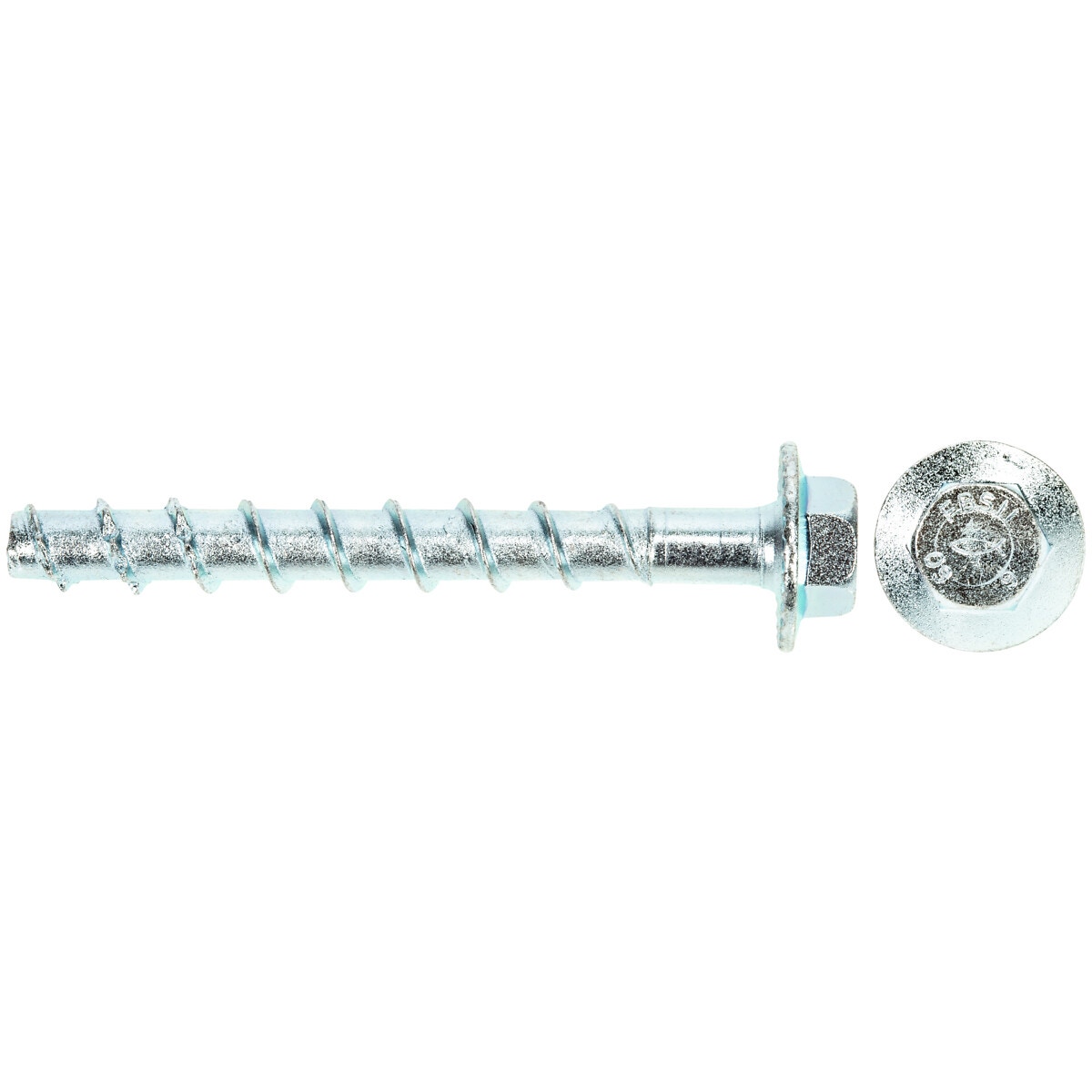

SKRŪVE BETONAM 6X100 FBS2 100GAB SW

Description

concrete screw FBS 2 | suitable for push-through installation | when the concrete screw is screwed into the drill hole, the thread flanks cut into the concrete in a positive locking manner | material galvanized steel | head SW10 / TX30 | size Ø 6 x 100 mm | min. drill hole depth for through fixings (h2) 110 mm | max. fixing thickness (t fix) 45-75 mm | screw-in depth (h nom) 25-55 mm | ETA approved | fire resistance R120 | 100 pcs / package | concrete C20/25 C50/60, cracked, for the multiple fixings of non-load-bearing systems | pre-stressed concrete hollow slabs C30/37 C50/60 | concrete C12/15 | natural stone and masonry with dense structure | solid building materials | pipeline routes | suspension for individual pipes | rail anchoring | suspended mounting rails | ventilation ducts | cable trays | perforated tapes | temporary anchors | pre-stressed concrete hollow core ceilings

Attributes

Screw size Ø (mm): 6 | Screw size Ø (mm): 6.00 | Length (mm): 100 | Length (mm): 100.00 | Material: Steel | Surface: Electro zinc plated | Wrench size: 10 mm, T30 (Torx) | Package length (cm): 25 | Package width (cm): 18 | Package height (cm): 6.5 | Gross weight (kg): 2.908000 | EAN: 4048962329513
