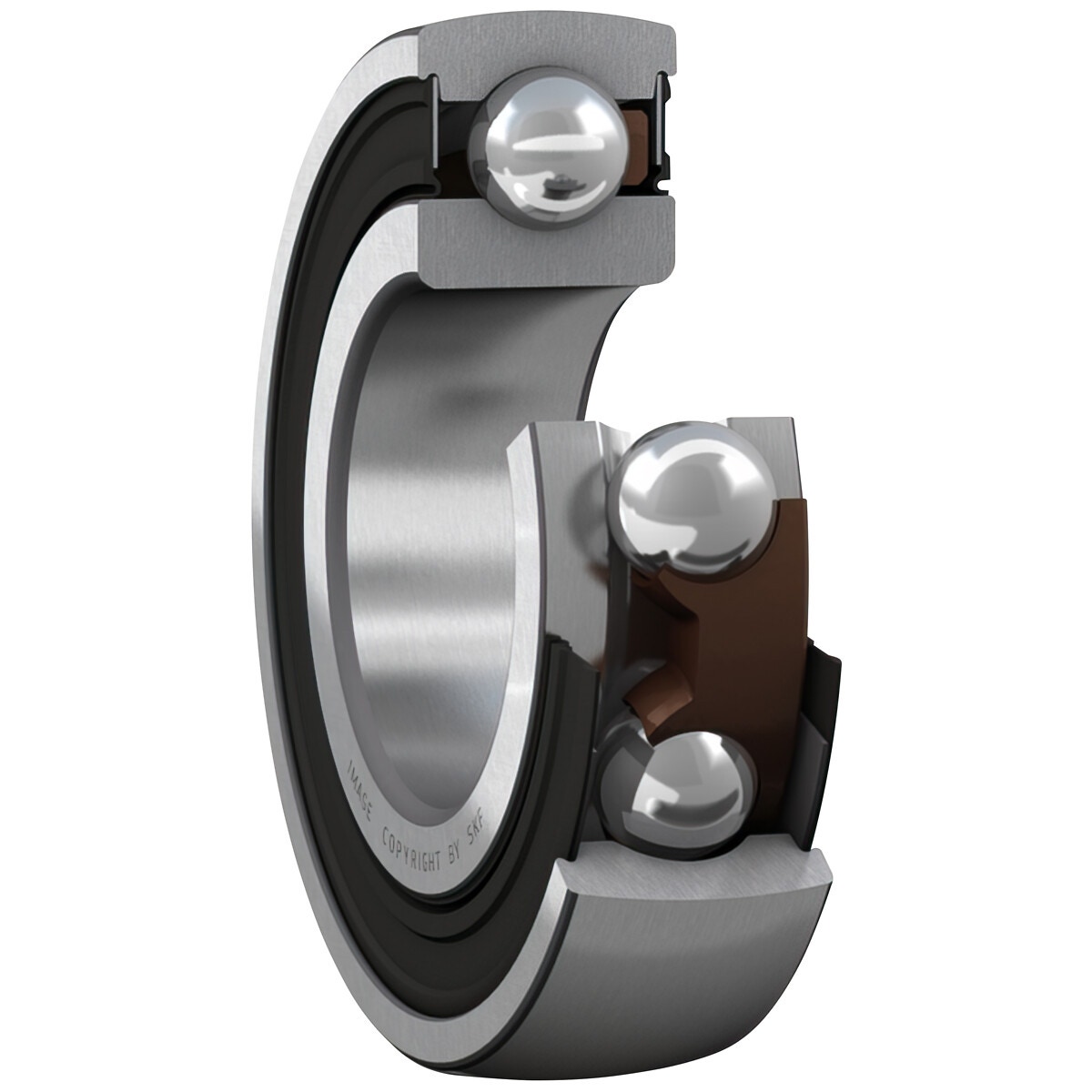

Skf 45x85x19 gultņu ieliktnis
67 €
✓ Pieejams
Description
bore diameter (d) 45 mm | outer diameter (D) 85 mm | inner ring width (B) 19 mm | outer diameter, inner ring (d1) 57.6 mm | chamfer dimension (r1,2) min. 1.1 mm | basic dynamic load rating (C) 33.2 kN | basic static load rating (C0) 21.6 kN | fatigue load limit (Pu) 0,915 kN | limiting speed 5000 r/min | calculation factor (f0) 14
Attributes
Inner diameter Ø (mm): 45 | Inner diameter Ø (mm): 45.00 | Outer diameter Ø (mm): 85 | Outer diameter Ø (mm): 85.00 | Package length (cm): 9.2 | Package width (cm): 9.6 | Package height (cm): 2.6 | Gross weight (kg): 0.413000 | EAN: 7316577299031
